When quadraphonic sound swept through the hi-fi world in the early 1970s, there were a few notable companies that embraced the movement with confidence and engineering ambition. Among those, manufacturers like Pioneer, Kenwood, JVC, Sherwood, and Sansui stood at the top of the pack. But there were few like those who managed to grab the Golden Age of Receivers by the horns like Marantz.
The Marantz 4430 stands as one of the era’s most compelling receivers. It is a bridge between classic two-channel stereo and immersive four-channel listening. That's why we want to take a closer look at the features that make the Marantz 4430 such a distinctive and enduring piece of audio history.
WHAT IT MEANS
For those new to hi-fi audio, a “quadraphonic” receiver is a vintage stereo receiver designed to play four channels of audio instead of the standard two channels. Rather than normal stereo sound, which uses two speakers (a left and a right), quadraphonic uses four speakers (a front left, a front right, a rear left, and a rear right).
The goal of this was to create a surround sound experience. It hit its stride in the 70s, well before modern home theater systems.
THE 4430
Marantz’s 4430 is one of the most iconic Quadraphonic receivers ever made. It was designed to deliver both true four-channel quadraphonic playback and conventional two-channel stereo operation in a single receiver.
In quad mode, it provides discrete amplification for front left, front right, rear left, and rear right speakers, creating an enveloping soundstage that was ahead of its time. It supports matrix quad formats such as SQ and can be equipped for additional decoding, allowing it to extract four channels from compatible program material.
When used in stereo mode, the 4430 functions like a traditional high-quality Marantz receiver, with the option to combine amplifier channels for increased two-channel output. This flexibility made it appealing to buyers in the 1970s who wanted to explore surround sound without giving up strong stereo performance.

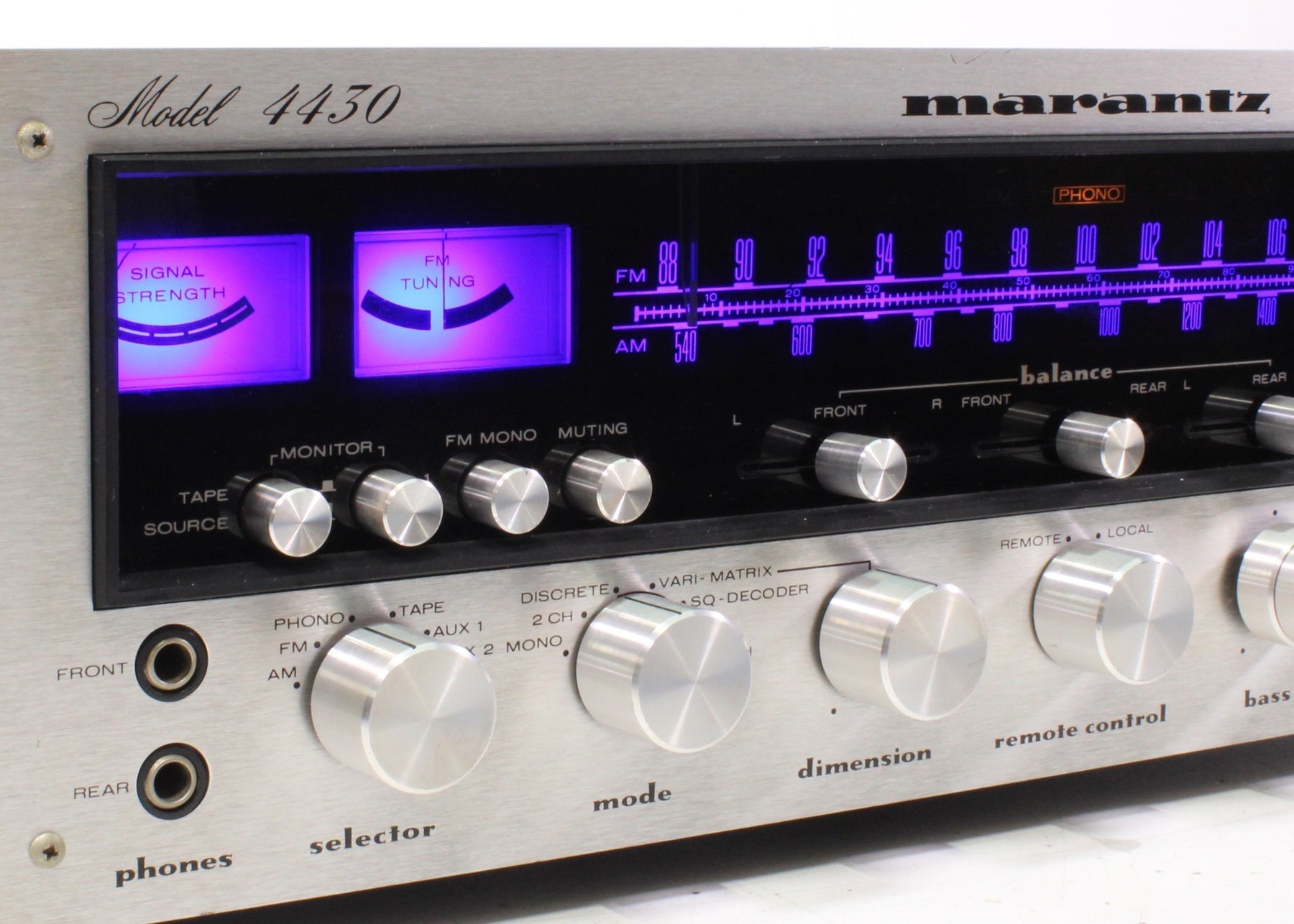

As with all silver-faced, wood-paneled classics, the best part of this unit is its gleaming front panel. It has that distinctive class that modern receivers just can’t compare with. Our unit (shown in the photo above) has unique custom violet lights; but this model, like most vintage Marantzs, was manufactured with teal lights. That striking blue tuning backlight made it a looker.
TOP HALF
This backlight takes up most of the top half of the front panel. On the left are your two meters, a Signal Strength meter (indicates the signal strength of any AM or FM broadcast), and a Tuning Meter (indicates correct station tuning for FM). Under these are the push buttons for the Tape Source Monitor, FM Mono selection, and Muting.
Most of the middle belongs to the backlit Tuning Indicator, while under that are the three Balance sliding controls: Front L-R, Rear L-R, and Front-Rear. This allows you to seamlessly slide the knobs to adjust the balance between the various channels to get the most pleasing overall balance.
The right side holds another icon: the tuning knob. Instead of the more conventional spin dial, this one is a heavy gyro-touch tuning knob with a black-knurled slip-resistant surface. It has an expensive feel to it and is instantly recognizable as a feat of Marantz engineering.
Under the tuning knob is another handful of push buttons: Loudness (boosts bass and treble tones), Hi Filter (suppresses high-frequency noise such as record scratches and tape hiss), Main Speaker, and Remote Speaker. These last two switches select the loudspeaker terminals to which audio power is fed.
BOTTOM HALF
The bottom of the front panel is mostly a range of knobs that make your fingers itch to twirl. But before the start of those are your two Phones jacks, a front and a rear one (which is needed when using 4-channel headphones). Then you have the Selector knob (for choosing between sources), the Mode knob (for choosing between channel options like mono, 2-channel, and 4-channel), and the Dimension knob (optimizes the 4-channel Vari-Matrix effect).
Smack dab in the middle is the Remote Control knob, which allows you to use the insanely cool RC-4 (more on that below). The right side has the Bass, Treble, and Volume knobs, and capping off the end is the push Power button.
The rear panel has every connection you need for a vintage stereo system setup. On the left are sixteen quick-connect Speaker Terminals, eight for the main speakers (front and rear) and eight for the remote speakers (front and rear).
Next to these is the Remote Control input and the AM Ferrite-rod antenna. Under those are the two AC Outlets (one Unswitched and one Switched) and FM Quadradial Output jack (ideal to drive any 4-channel adapter or for a simple white noise generator for loudspeaker frequency response checks).
On the right are the AM and FM antenna terminals and the Antenna Antenuator in/out switch. Under these are the RCA input terminals for your sources: Tape jacks, Aux jacks, and a Phono jack (along with a Ground terminal). Among these are also your Tape output jacks.
The metaphorical cherry on top for this incredible system is its ability to be controlled by a wired remote. Like most vintage analog units, the 4430 was designed without built-in infrared remote control capabilities. However, the rear panel has a Remote Control connector that one wired control box can hook up to: the RC-4.
This RC-4 unit looks to be straight out of Star Trek. It’s big, boxy, and has the classic silver and black color scheme. This remote was specifically designed for Marantz 4-channel audio components, such as the 4060, 4100, 4415, and 4430.
It controls three main functions: loudness, volume, and balance. The balance control is the coolest part; only a quadraphonic receiver would have such a remote. In a square grid, you have a joystick-style knob you can slide up and down, left and right. This alters the balance so you can choose between the front and back speakers, the left and right channels for the fronts, and the left and right for the backs. Pretty neat, right?
Designed to deliver both flexibility and power, the incredible Marantz 4430 is equally at home in traditional stereo setups and full quadraphonic systems. From matrix decoding to flexible connections, it was engineered for serious at-home listeners who wanted options without compromise. Today, it remains an example of Marantz craftsmanship, admired for everything from its classic combo of wood and silver to its warm vintage sound.
Thanks for reading! The Marantz 4430 we currently have in our clutches is now up for sale. It has been fully serviced and restored, including re-capping and LED lighting upgrades. If you’re interested in owning this piece of eye candy, feel free to check it out on our website here.
Have a great day!
