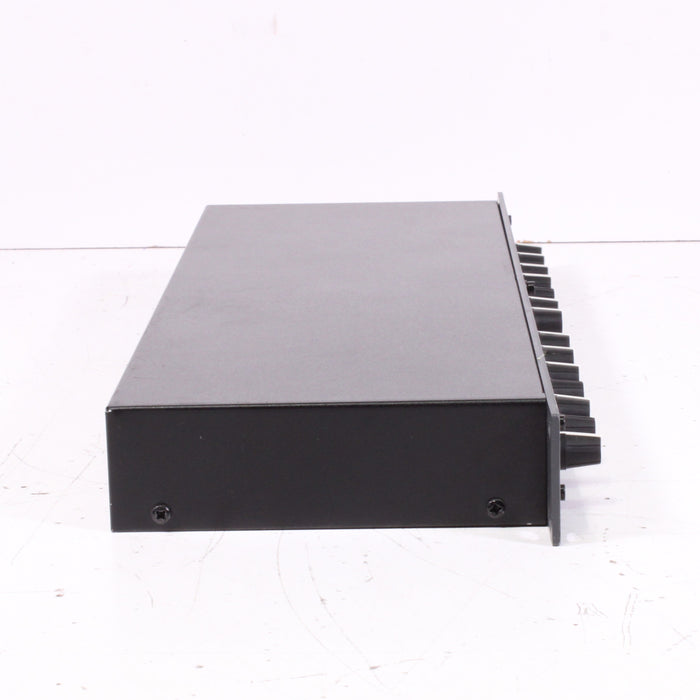

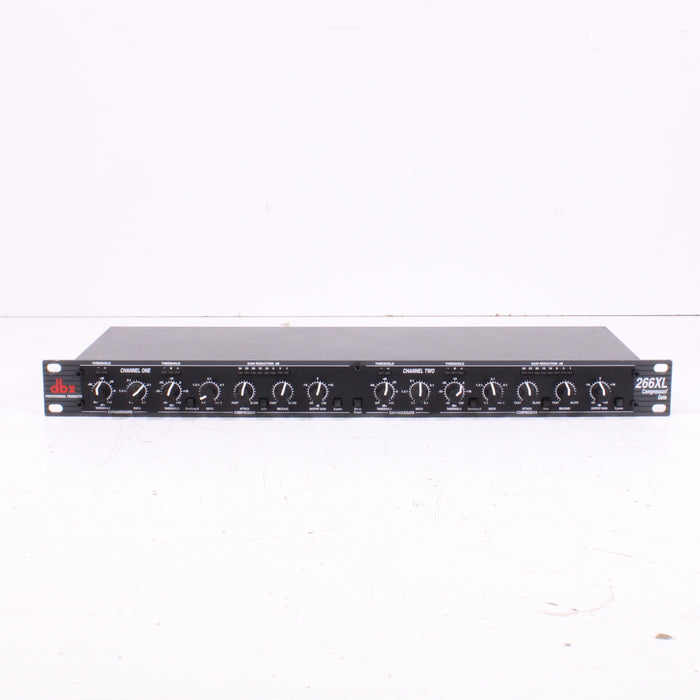

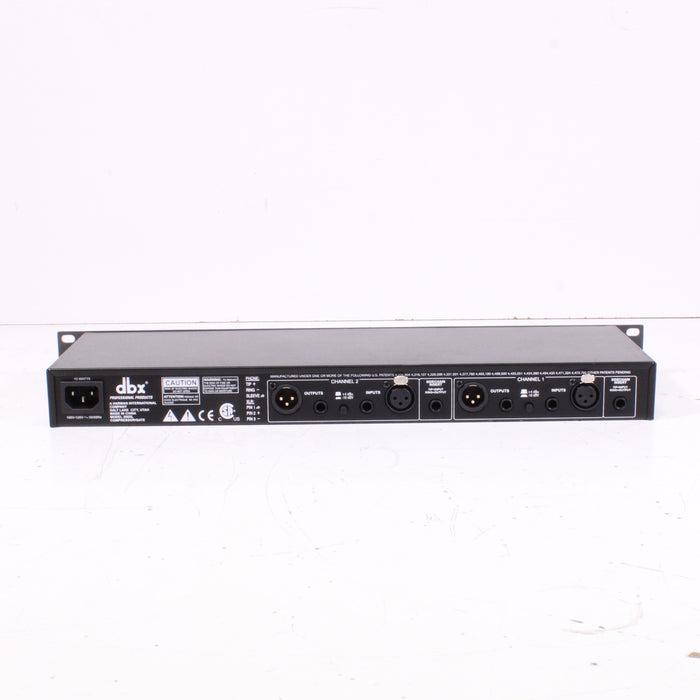

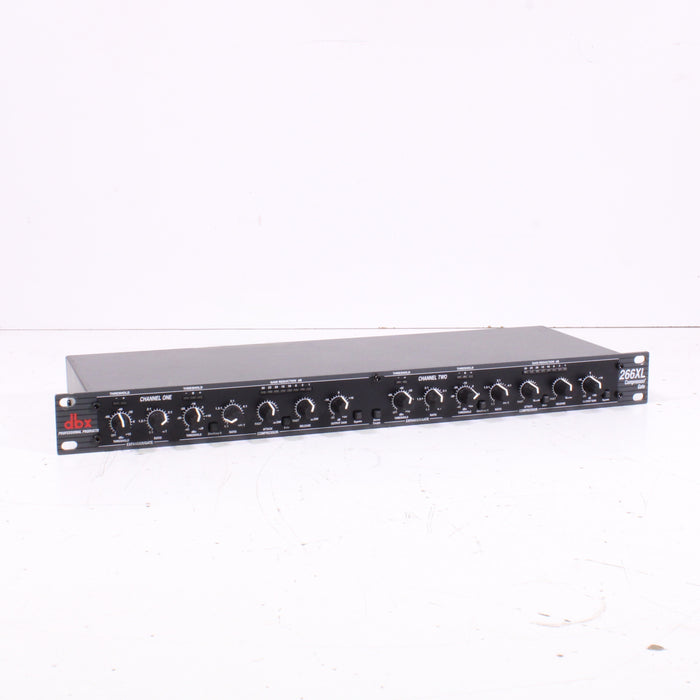

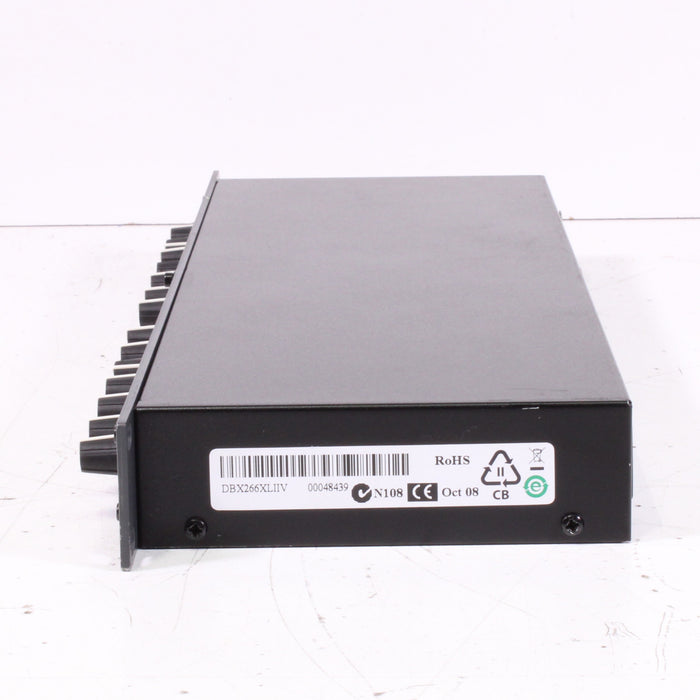

DBX 266XL Dual Mono/Stereo Compressor with Gate
The DBX 266XL is a rack-mountable 1U compressor/gate designed for professional audio environments—from home studios to live performance setups. Featuring OverEasy® compression, AutoDynamic™ attack and release, and a smooth program-adaptive expander/gate, it delivers transparent and musical dynamics control for instruments, vocals, mix buses, and more. Elevate your audio precision with this flexible, easy-to-use unit.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
Cosmetic Condition: Very Good.
Functional Condition: Works like new.
WHAT'S IN THE BOX?
- DBX 266XL Dual Mono/Stereo Compressor with Gate
- Power Cord
Other information about the DBX 266XL
- Frequency Response: Flat 20 Hz – 20 kHz (+0, -0.5 dB); Bandwidth 0.35 Hz – 80 kHz
- Noise Floor: < –93 dBu (unweighted)
- Dynamic Range: > 114 dB (unweighted)
- THD + Noise / Intermodulation: < 0.2% SMPTE
- Crosstalk / Common Mode Rejection: > –93 dB @ 1 kHz / > 40 dB
- Compressor Threshold: –40 dB to +20 dB; Ratio: 1:1 to ∞:1
- Gate Threshold: –60 dB to +10 dB; Ratio: 1:1 to 4:1
- Attack / Release: Scalable, program-dependent for both compressor and gate; Gate attack <100 µsec
- Max Output: +21 dBu into 600 Ω; Max Input: +22 dBu
- Output Gain: Variable –20 dB to +20 dB
-
Side-Chain I/O: Input impedance >10 kΩ; Output ≤2 kΩ; Max Level +21 dBu
DIMENSIONS
- Rackmount height: 1.75″ (1U)
- Depth: 5.75″
- Width: 19″
-
Weight: 5 lbs (2.3 kg)
MANUFACTURER
- Made in USA
