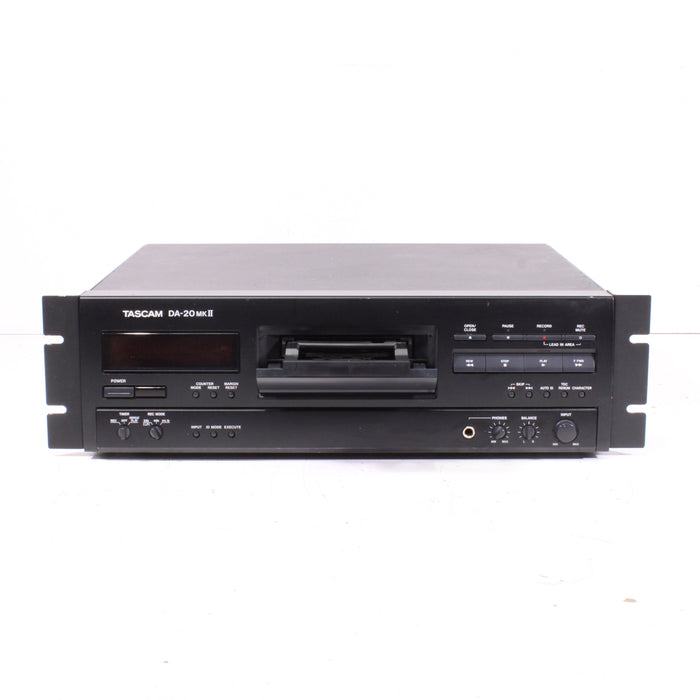

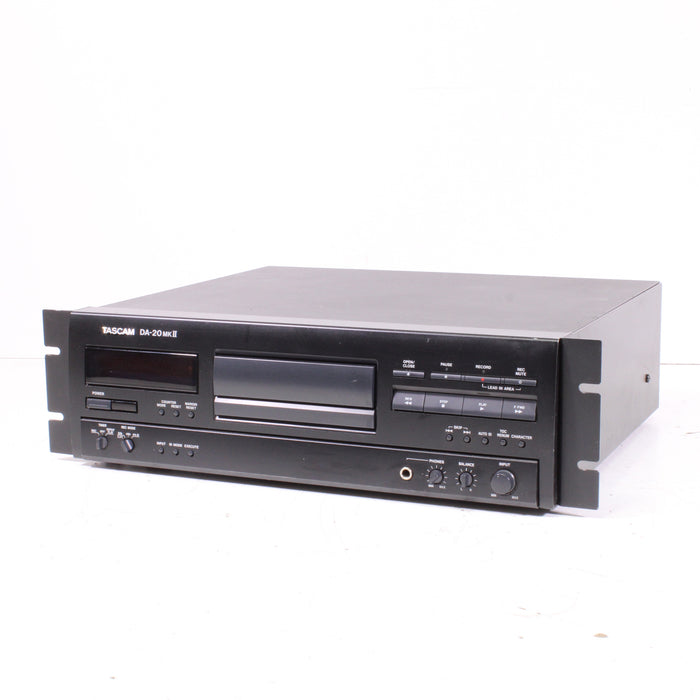

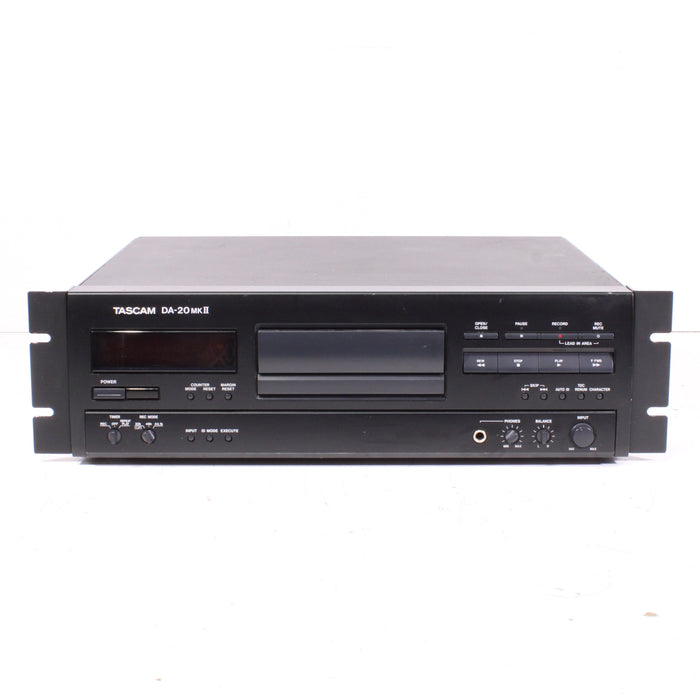

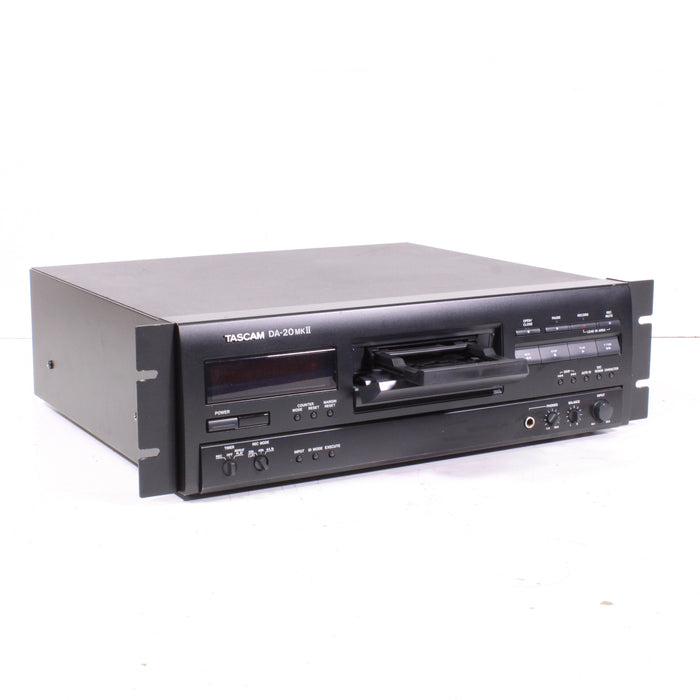

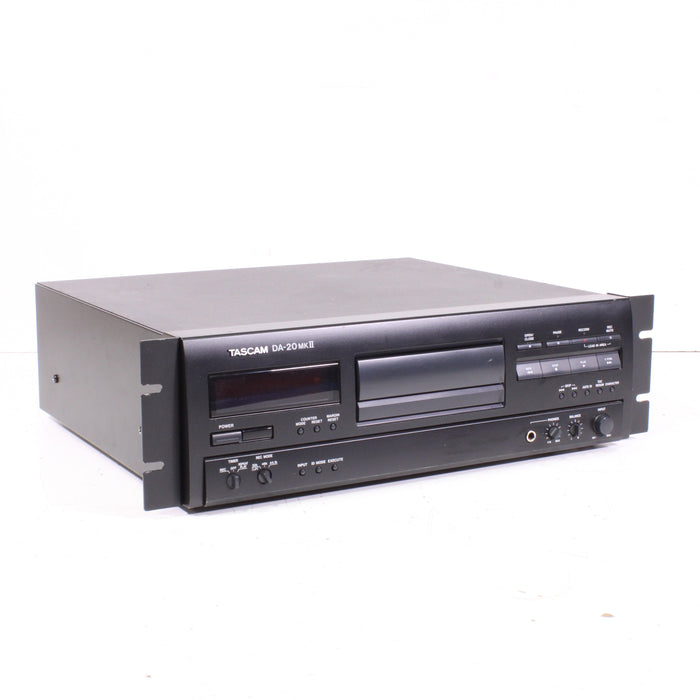

Tascam DA‑20 MkII Digital Audio Tape (DAT) Recorder Rack Mount
The Tascam DA‑20 MkII is a solid, rack-mountable DAT recorder designed for professionals and enthusiasts seeking reliable digital audio capture. It supports the full suite of DAT formats—SP (44.1/48 kHz) and LP (32 kHz)—and features analog RCA and digital (SPDIF coaxial) I/O. Notably, it can override SCMS copy control codes, allowing for broader recording flexibility than most consumer DAT units. Whether you're duplicating, archiving, or integrating vintage digital audio, the DA‑20 MkII delivers clean, consistent performance.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED

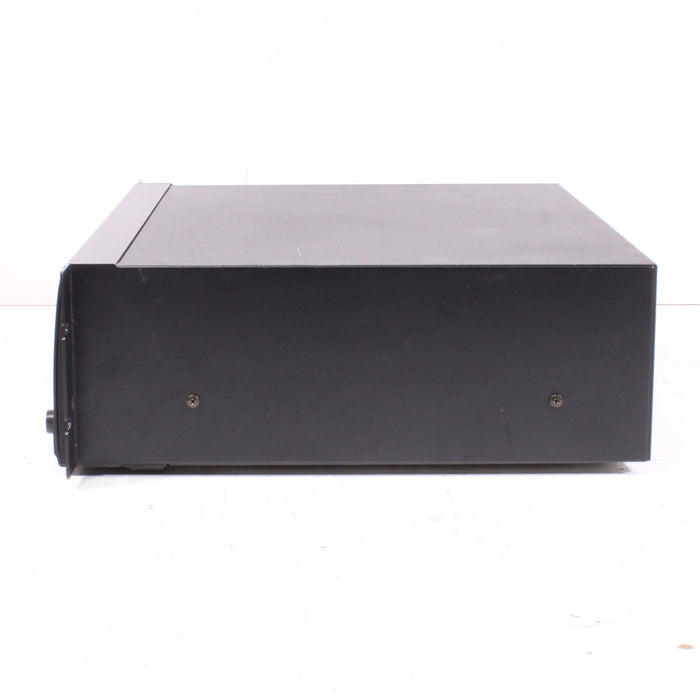

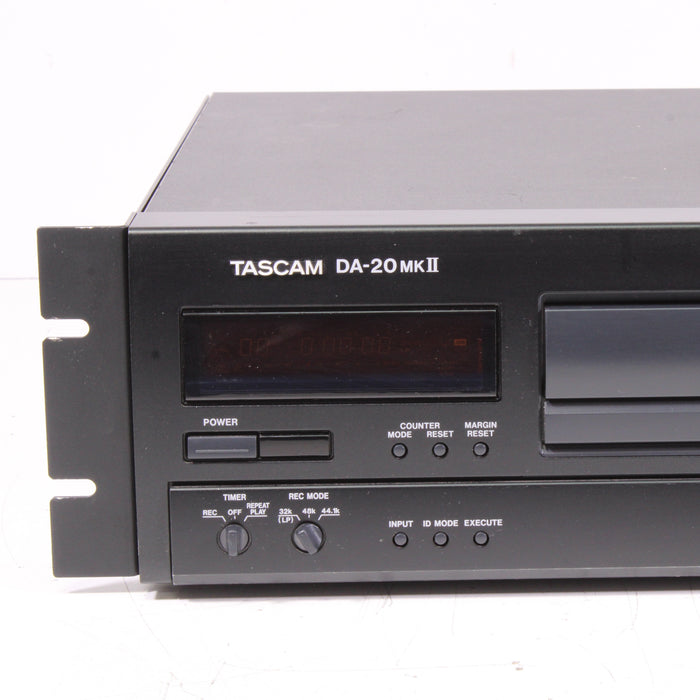

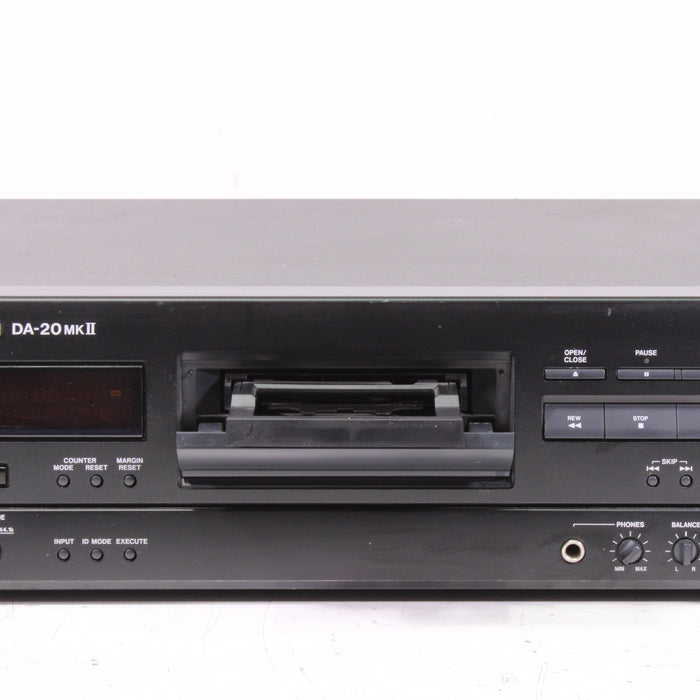

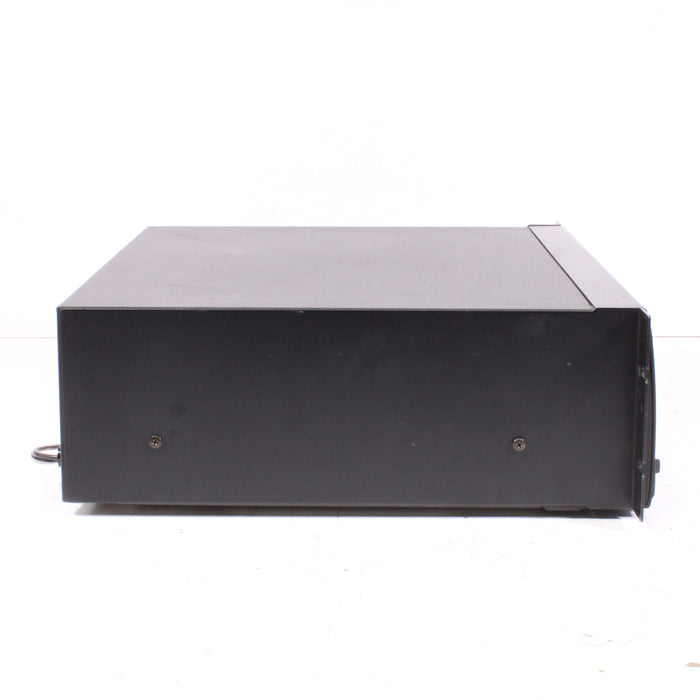

This unit is used and in excellent operational condition. It powers up smoothly, accepts and plays back DAT tapes reliably, including SP and LP formats. The transport, display, and both analog and digital connections have all been thoroughly tested and function properly. The chassis shows standard vintage wear, minor surface marks, with no dents or damage.
Cosmetic Condition: Very Good.
Functional Condition: Works Like New.
WHAT'S IN THE BOX?
- Tascam DA‑20 MkII Digital Audio Tape (DAT) Recorder
- Factory Remote (RC-D20)
- Batteries
- Analog Audio Cable
Other information about the Tascam DA‑20 MkII
- Tape Speeds: SP = 8.15 mm/s, LP = 4.075 mm/s
- Recording Times: SP = ~120 min, LP = ~240 min (on 120-minute DAT)
- Recording Resolution: SP = 16‑bit linear, LP = 12‑bit nonlinear
- Sample Rates Supported: 48 kHz, 44.1 kHz, 32 kHz
- Frequency Response: SP: 20 Hz–20 kHz ±0.5 dB; LP: 20 Hz–14.5 kHz ±0.5 dB
- Signal-to-Noise Ratio & Dynamic Range: >91 dB
- Total Harmonic Distortion: <0.0045%
- Wow & Flutter: Below measurement limit, <0.001%
- Analog I/O: RCA (in 500 mV/27 kΩ; out 500 mV/1 kΩ)
- Digital I/O: SPDIF coaxial, 75 Ω, IEC60958 format
- Power Consumption: 21 W
- 3U rack-mount design ideal for studio or pro audio rack use
DIMENSIONS
- Rack with rack ears: 482 × 133 × 379 mm (W×H×D)
- Without rack ears: 420 × 133 × 379 mm
-
Weight: 7.8 kg

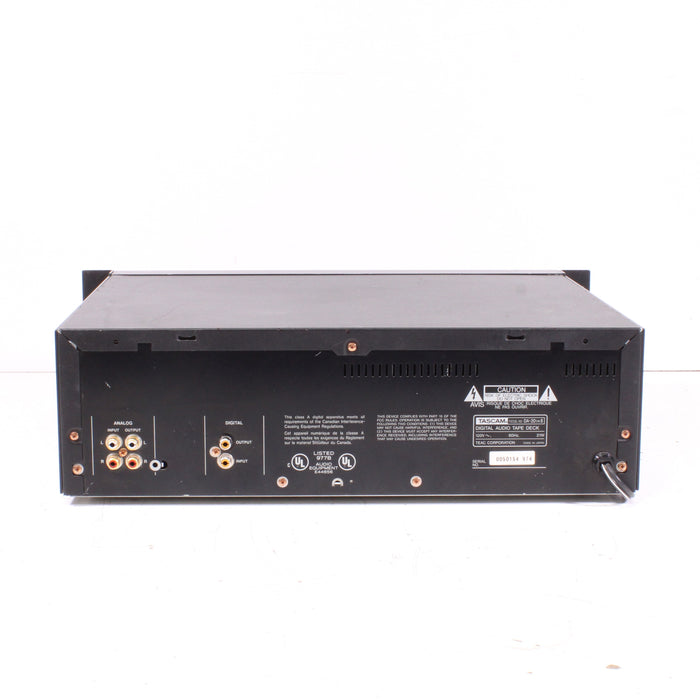

INPUTS
- Analog Audio Input x1 (back)
- Digital Input x1 (back)
OUTPUTS
- Headphone Jack x1 (front)
- Analog Audio Output x1 (back)
- Digital Output x1 (back)
MANUFACTURER
- Made in Japan
