McIntosh MAC1700 RARE Vintage 2-Channel Hybrid Stereo Receiver Tubes (1967-73)
This vintage piece is a legend. If you've never heard of McIntosh before, they were established in 1949 and are renowned for providing absolutely outstanding audio gear. When music lovers want the best, they go to McIntosh.

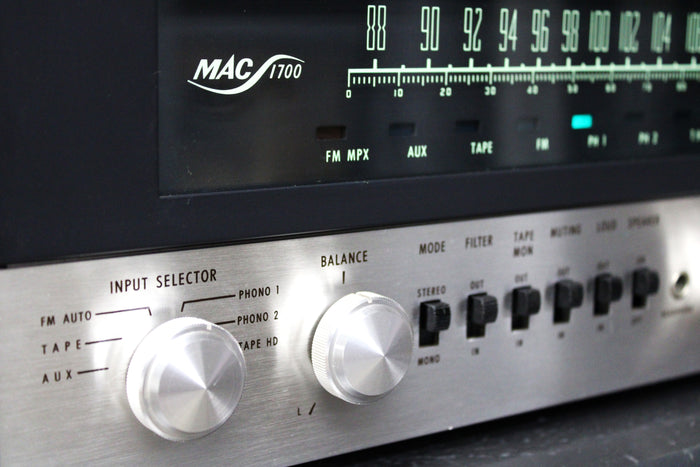

And the MAC1700 is the best. It's a 2-channel hybrid receiver comprised of three top-notch stereo components: a solid state preamplifier, a solid state power amplifier, and an FM MPX stereo tuner with 8 tubes, 4 transistors, and 10 diodes. When you listen to it, you can hear the difference. The sound is unique, fluid and warm, making your vinyl sound especially rich. It's finished in gorgeous silver and black with aluminum knobs on the front panel, built like a tank, and made to outlive us all.

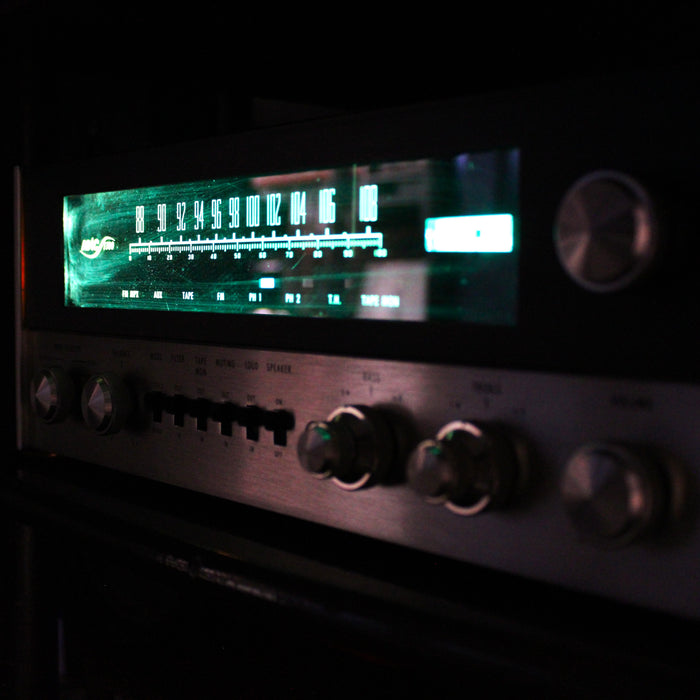

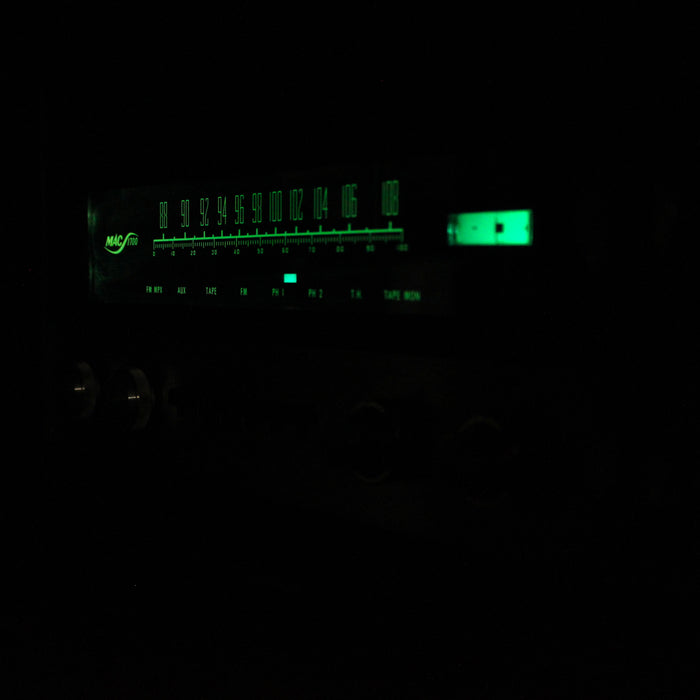

And this monster of an amp looks insanely cool in a rack and lit up with your other vintage gear. Trust us: we've got the pictures to prove it.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
Every function has been confirmed 100% working. We have cleaned it inside and out and replaced any worn parts. A recap was performed if necessary. All pots, knobs, connectors and boards have been cleaned with CRC cleaner.
Cosmetic Condition: Very Good.
Functional Condition: Works Like New.
WHAT'S IN THE BOX?
- McIntosh MAC1700 RARE Vintage 2-Channel Hybrid Stereo Receiver
Other information about the McIntosh MAC1700
- Tuning range: FM
- Power output: 40 watts per channel into 8Ω (stereo)
- Frequency response: 20Hz to 20kHz
- Total harmonic distortion: 0.25%
- Damping factor: 100
- Input sensitivity: 2.4mV (MM), 300mV (line)
- Signal to noise ratio: 76dB (MM), 75dB (line)
- Speaker load impedance: 4Ω to 8Ω
- FM tubes: 8 tubes, 4 transistors, 10 diodes
- Automatic stereo switching
- Muting; IF injected circuit with at least 50db quieting between stations
- Antenna inputs for 300 ohm balanced (for twin lead) and 75 ohm unbalanced (for coaxial cable)
- Nuvistor RF amplifier, Nuvistor mixer
- Four stages of IF amplification, with AGC used to ensure limiting occurs only in the limiter stages
- Two limiter stages used for exceptional capture ratio and smooth muting operation
- Multiplex filter and SCA filter, to suppress 19KC and 38KC signal components at least 40db below program and to suppress 67KC SCA by 60db
- Noise rejecting logic circuit used to activate MPX stereo light and automatic stereo switching on 19KC stereo pilot only
- D'Arsonval tuning meter for accurate center of channel tuning
- Flywheel tuning for ease of operation and precise tuning
DIMENSIONS
- 15.63" x 12" x 4.88" (Length x Width x Height)
- Weight: 34 lbs
INPUTS
- FM Antenna x1 (back)
- Tape Monitor L/R x1 (back)
- Aux L/R x1 (back)
- Phono L/R x2 (back)
- Tape HD L/R x1 (back)
OUTPUTS
- Headphones x1 (front)
- Tape Output L/R x1 (back)
- Speaker Outputs L/R x2 (back)
MANUFACTURE DATE and PLACE
- MFD. 1967-1973
- Made in U.S.A.
