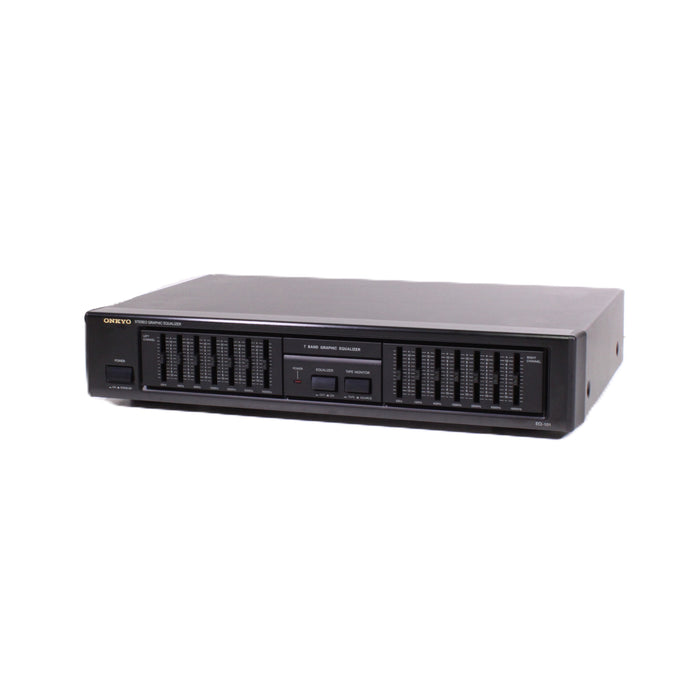

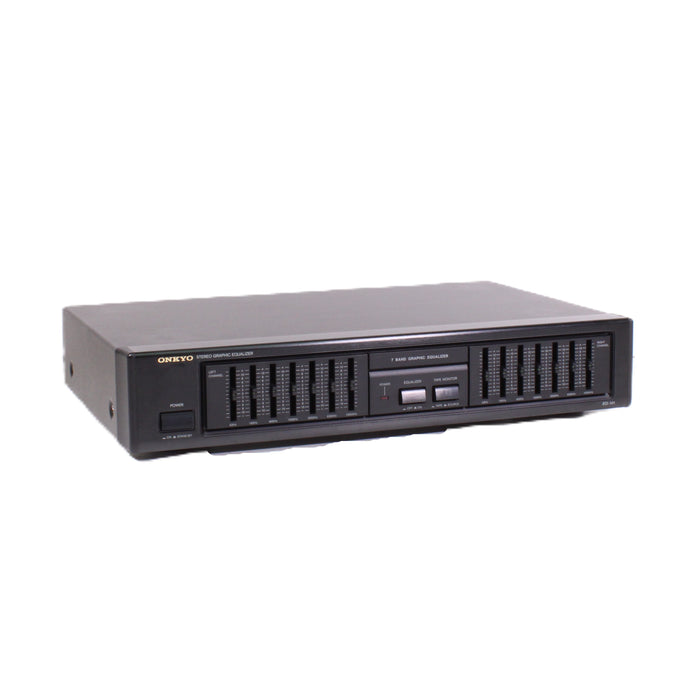

Onkyo EQ-101 7 Band Stereo Graphics Equalizer
Fine-tune your stereo system with the Onkyo EQ-101, a vintage 7-band graphic equalizer designed for precise tonal control. Seven frequency bands from 63 Hz through 16 kHz provide ±12 dB adjustment, while the tape-monitor loop makes it easy to integrate with classic receivers, amplifiers, and cassette decks. With low distortion and a wide 10 Hz–35 kHz frequency response, the EQ-101 is a capable addition to a vintage Onkyo stack. Fully tested, refurbished, and SPENCERTIFIED for reliable everyday audio use.
Condition
Refurbished and SPENCERTIFIED
SPENCERTIFIED - Fully certified by Spencer
100% tested and functional. Controls, switches, and equalizer sliders cleaned with WD-40 Specialist Electrical Contact Cleaner. Internal boards and connections inspected, all seven frequency bands tested, left and right channels verified, and source/tape-monitor functions checked.
Cosmetic condition: 9/10
Functional Condition: 10/10
What's in the box?
- Onkyo EQ-101 7 Band Stereo Graphics Equalizer
- Power Cord
- Analog Audio Cable
Other information about the Onkyo EQ-101
- Input Sensitivity: 150mV (5V max)
- Output Level: 150mV
- Gain: ± 0dB
- Frequency response: 10Hz to 35kHz
- Signal-to-Noise Ratio: 100dB
- Total harmonic distortion: 0.01%
- Control Range: ±12 dB

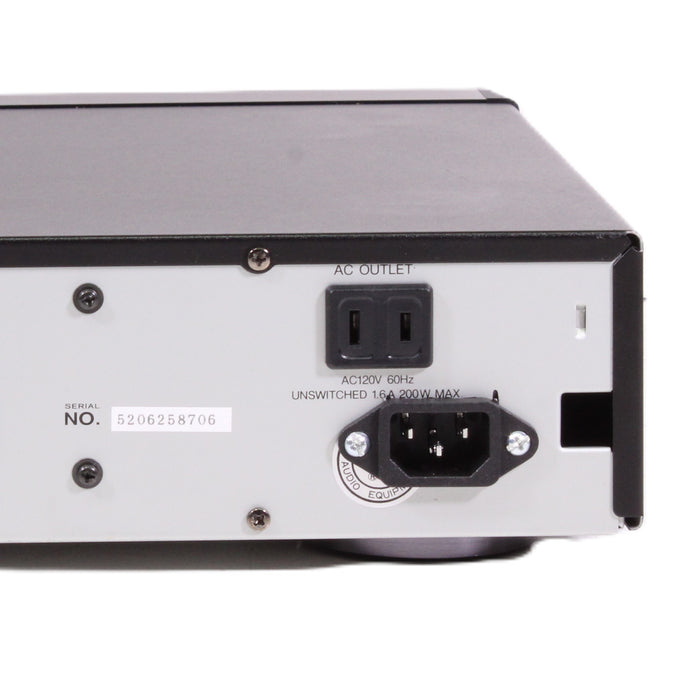

- Power Requirements: AC120V 60Hz
- Power Consumption: 5W

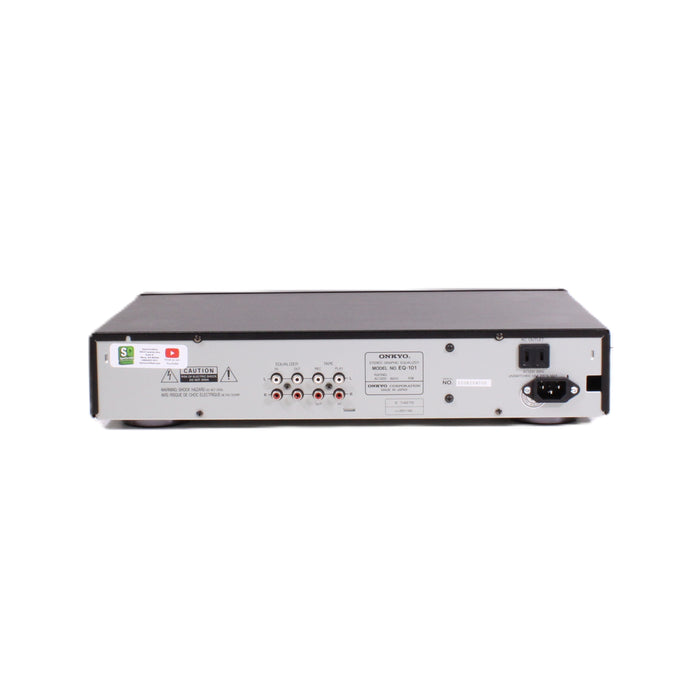

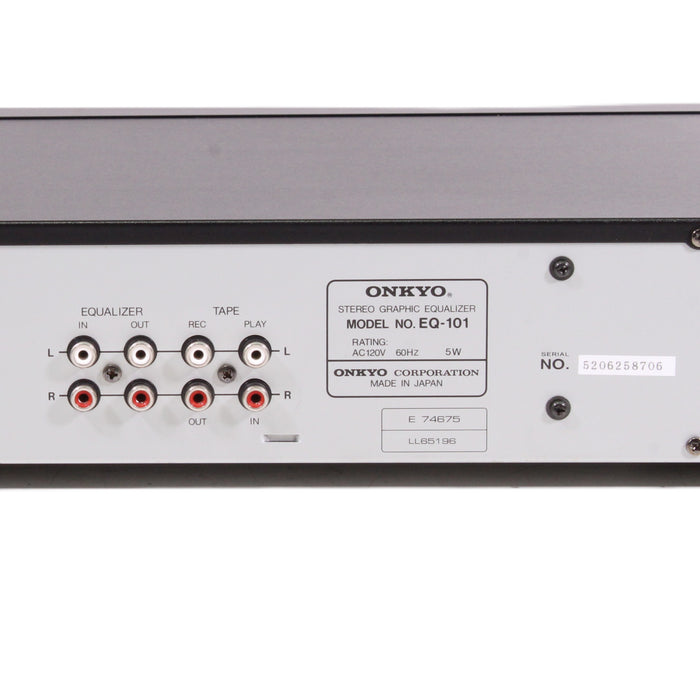

INPUT
- Equalizer x1 L/R (back)
- Tape x1 L/R (back)
OUTPUT
- Equalizer x1 L/R (back)
- Tape x1 L/R (back)
DIMENSION
- Size: 17.9" W × 3.5" H × 11.7" D
- Weight: 11 lbs
MANUFACTURER
- Made in Japan
