Carver AV-806X 6-Channel Power Amplifier 133W (1995)
Be the envy of everyone in the neighborhood and get yourself the Carver AV-806X! This beast of an amplifier is crawling with power and features. It's a 6-channel amp rated at 133 watts per channel into 8 ohms with a frequency response of 20Hz to 20kHz. But this thing is bridgeable, meaning you can bridge it into a three-channel amp and get 360 watts per channel! Convenient to have one amp provide all the power you need, right?
It's also Home THX certified, which is especially suited for home theater systems. It also features heavy-duty binding posts for speaker output connections and gold-plated RCA input jacks. It's also "lightweight" at 45 pounds and housed in a sturdy, reliable chassis. Pair it with a decent preamp, and experience the incredible joy of owning a Carver!
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
All functions have been meticulously verified to ensure they are operating at peak performance. We have thoroughly cleaned the device, both inside and out, and replaced any worn components to guarantee its reliability. A recap was performed wherever needed to enhance its functionality.
Additionally, every pot, knob, connector, and circuit board has been carefully cleaned with CRC cleaner, restoring them to pristine condition. Your satisfaction is our top priority, and we are proud to offer you a refreshed and fully functional device.
Cosmetic Condition: Good.
Functional Condition: Works Like New.
WHAT'S IN THE BOX?

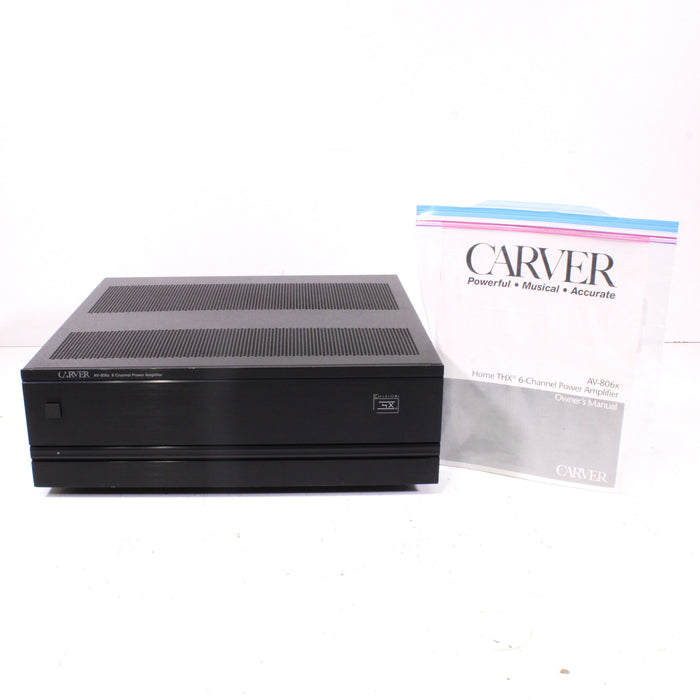

- Carver AV-806X 6-Channel Power Amplifier 133W (1995)
- Owner's Manual
Other information about the Carver AV806X
- Type: Solid State Power Amplifier
- Certified by Lucasfilm, Ltd. for use in Home THX Audio Systems
- Dual transformer power supply design provides exceptionally high current capacity
- Speaker output relays will instantly disconnect if one of the following fault conditions is detected: DC Offset, Over Temperature, Short Circuit
- Inverted signal outputs provided on each channel for bridged operation. Used to combine the power of two channels into a single higher powered channel
- Configurable for three, four, five, or six channel operation
- Heavy-duty binding posts for speaker output connections
- Gold-plated RCA input jacks
- DB-25 "D" connector for making input connections to a Home THX Controller or Equalizer (as per THX specifications)
- 2 color Power/Standby indicator
- 133 watts per channel into 8 ohms from 20Hz to 20kHz, with no more than 0.5% THD all channels driven
- Bridged operation: 360 watts into 8 ohms from 20Hz to 20kHz, with no more than 0.5% THD
- Dynamic Headroom: 1.2dB at 8 ohms
- Crosstalk: >100dB (@1kHz)
- Damping factor: 120 nominal
- Gain: 29 dB
- Input sensitivity: 1.15V
- Signal to noise ratio: 115dB
DIMENSIONS
-
17" x 17.3" x 6" (Length x Width x Height)
- Weight: 45 lbs

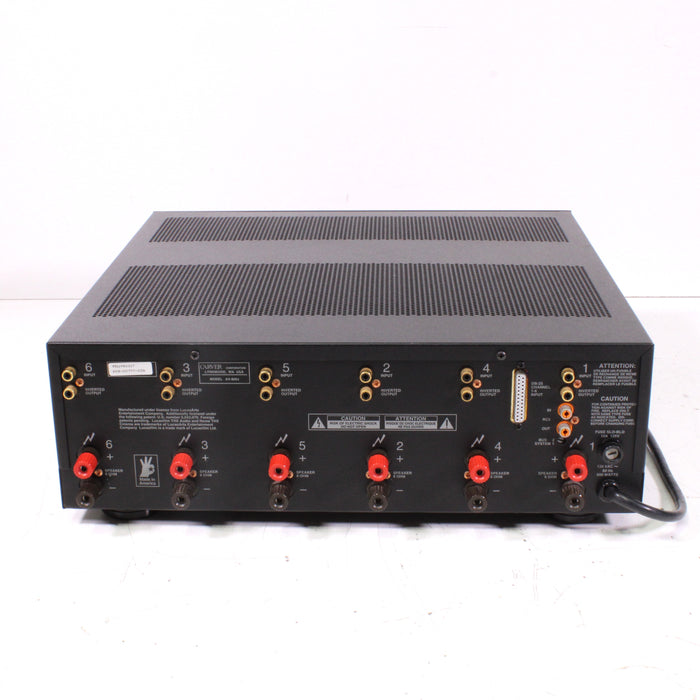

INPUTS
- Audio Input x6 (back)
- DB-25 Channel 1-6 Input x1 (back)
- RCS In x1 (back)
OUTPUTS
- Inverted Output x6 (back)
- Speakers (Binding Posts) +/- x6 (back)
- RCS Out x1 (back)
MANUFACTURE DATE and PLACE
- MFD. 1995
- Made in USA
