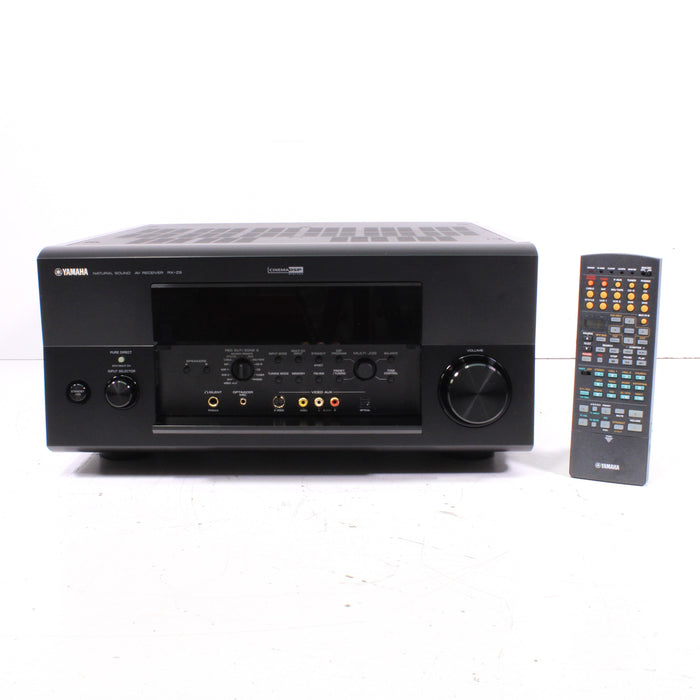

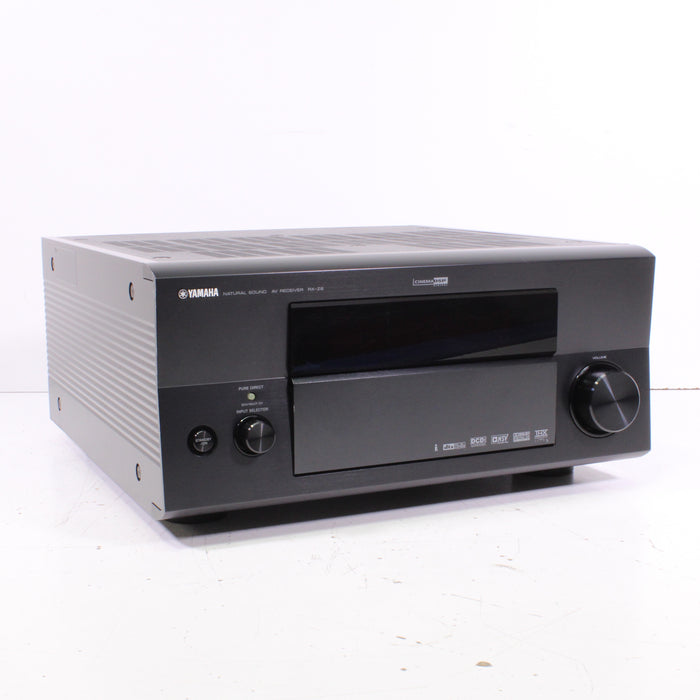

Yamaha RX-Z9 9.1 Channel Natural Sound Audio Video Receiver (2004-06)
The Yamaha RX-Z9 is a 9.1 channel A/V receiver built during Yamaha’s golden era of high-end home theater engineering. Designed as a reference-grade control center, the RX-Z9 delivers massive power output, advanced DSP processing, and premium build quality in a single chassis.

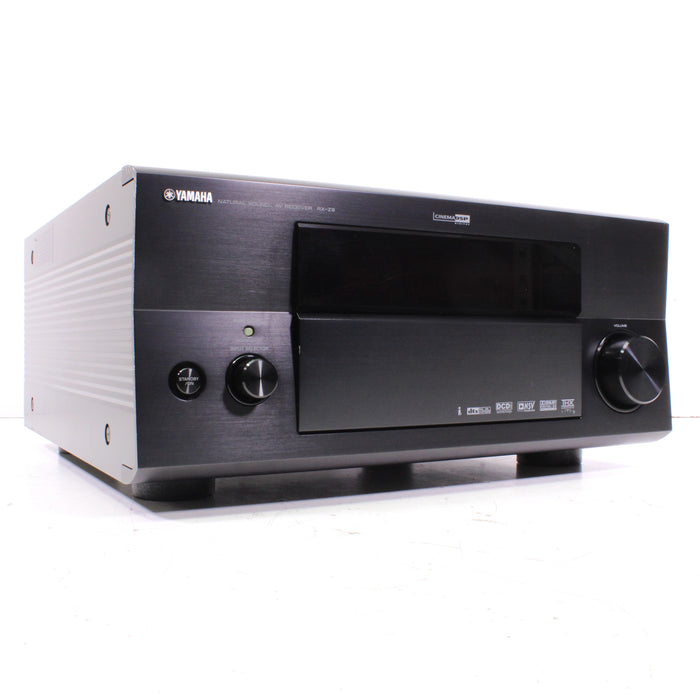

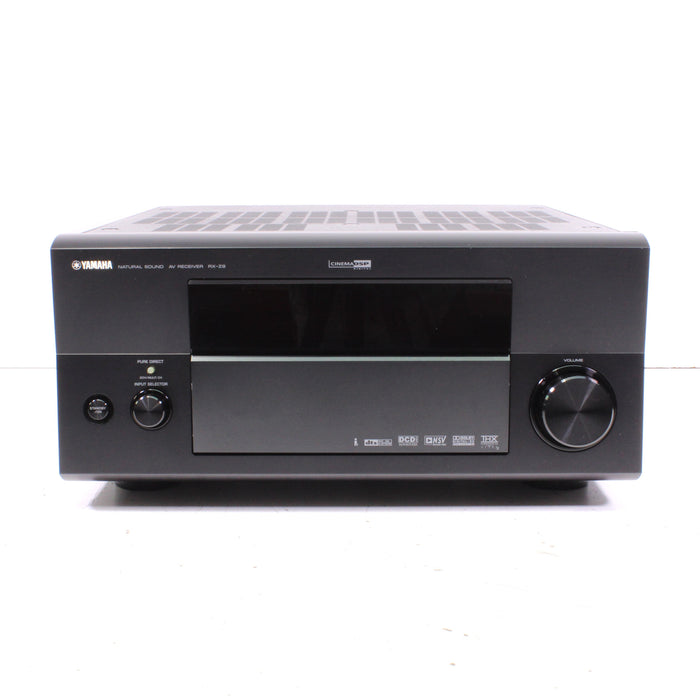

Rated at 170 watts per channel, this receiver was engineered to drive demanding speaker systems with authority while offering THX Ultra2 certification and extensive surround format support. With its heavy-duty construction, toroidal power transformer, and aluminum front panel, the RX-Z9 stands as one of Yamaha’s most respected high-end receivers. Fully SpenCertified and ready to perform.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
100% tested and functional. Cleaned inside and out; worn parts replaced as needed. All channels tested under load. Digital and analog inputs verified. Internal components inspected. Controls and selector switches cleaned with WD-40 Specialist Electrical Contact Cleaner (safe for electronics).
Cosmetic Condition: 10/10
Functional Condition: 10/10
📦 Professionally packed and shipped with care.
WHAT'S IN THE BOX?
- Yamaha RX-Z9 9.1 Channel Natural Sound Audio Video Receiver (2004-06)

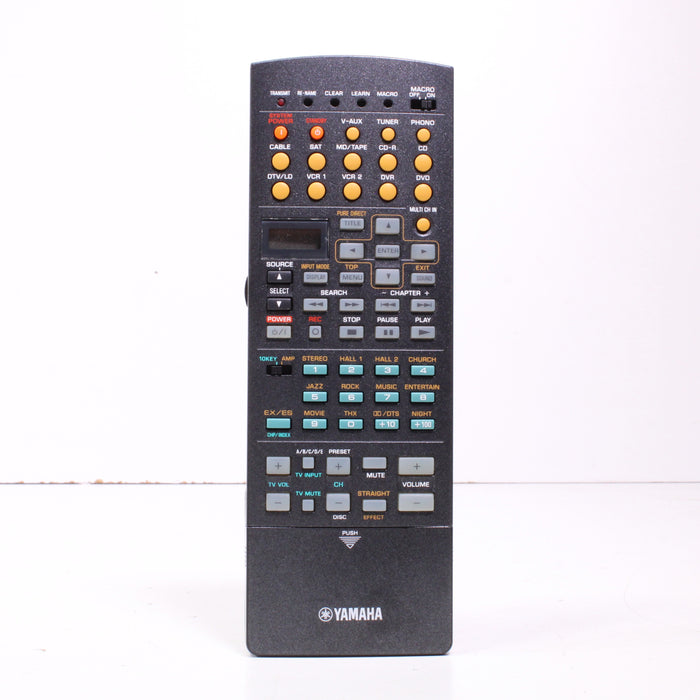

- Factory Remote (RAV229)
- Batteries
- Composite A/V Cable
- Speaker Wire
Other information about the Yamaha RX-Z9
- Tuning range: FM, MW
- Power output: 170 watts per channel into 6Ω (stereo)
- Surround output: 170W (front), 170W (center), 170W (rear)
- Frequency response: 10Hz to 100kHz
- Total harmonic distortion: 0.005%
- Damping factor: 200
- Input sensitivity: 3.5mV (MM), 200mV (line)
- Signal to noise ratio: 80dB (MM), 97dB (line)
- Channel separation: 70dB (MM), 60dB (line)
- Output: 200mV (line), 1V (Pre out)
- Speaker load impedance: 6Ω (minimum)
- 9.1 channel surround sound receiver
- Dolby Digital EX, DTS-ES, Dolby Pro Logic IIx
- Yamaha Cinema DSP processing
- Multi-zone capability
DIMENSIONS
- Width: 17″
- Height: 7.5″
- Depth: 19″
- Weight: 60 lbs

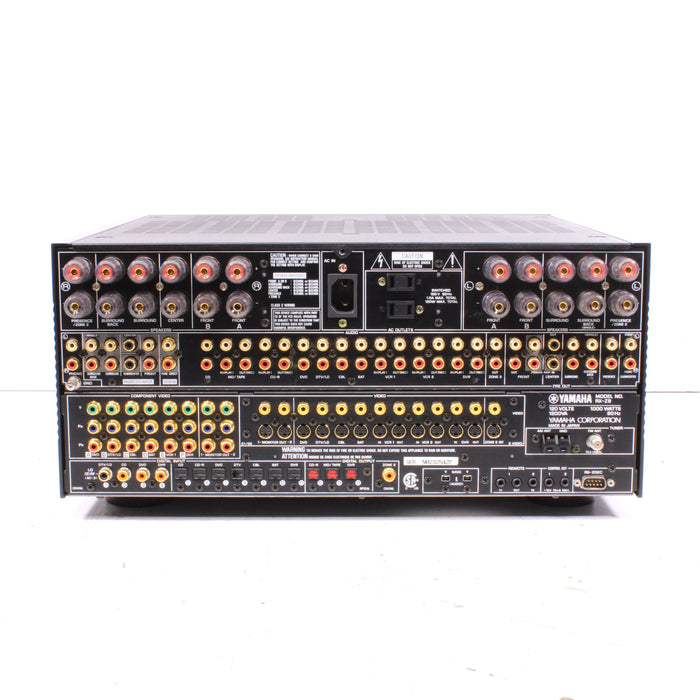

INPUTS

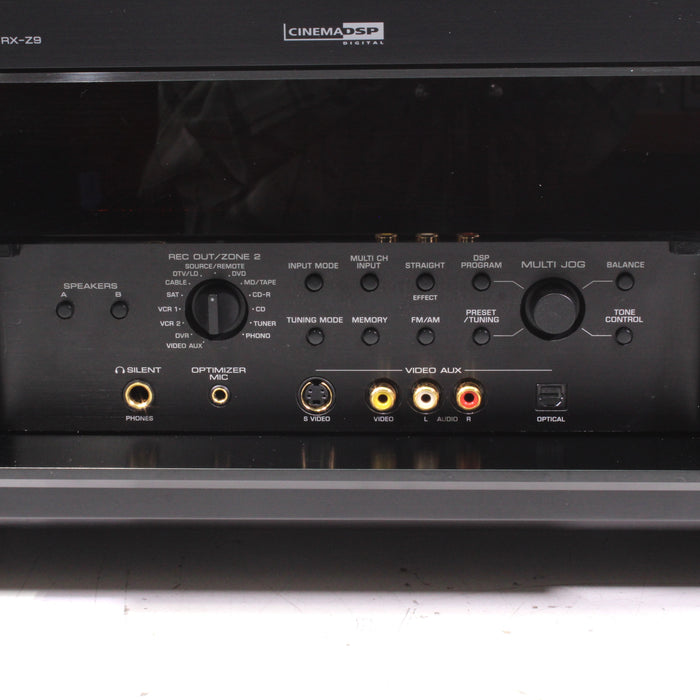

- Mic x1 (front)
- S-Video x1 (front)
- Composite x1 (front)
- Optical x1 (front)
- Phono x1 L/R (back)
- Multi CH
- Surround Back x1 L/R (back)
- Surround x1 L/R (back)
- Center x1 (back)
- Subwoofer x1 (back)
- Front x1 L/R (back)
- 2 CH
- Pure Direct x1 L/R (back)
- Analog Audio x2 L/R (back)
- Composite x8 (back)
- Pre Out
- Power Amp IN x1 L/R (back)
- Center x1 (back)
- S-Video x7 (back)
- Component x6 (back)
- Coaxial x4 (back)
- Optical x7 (back)
- Remote x2 (back)
- RS-232C x1 (back)
OUTPUTS
- Headphones x1 (front)
- Speakers x4 L/R (back)
- Center Speaker x1 (back)
- Analog Audio x1 L/R (back)
- Composite x5 (back)
- Pre Out x5 L/R (back)
- Center x1 (back)
- S-Video x6 (back)
- Component x2 (back)
- Optical x3 (back)
- Coaxial x1 (back)
- Remote x1 (back)
- Control Out x2 (back)
MANUFACTURER
- Made in Japan
- MFD: 2004-06
