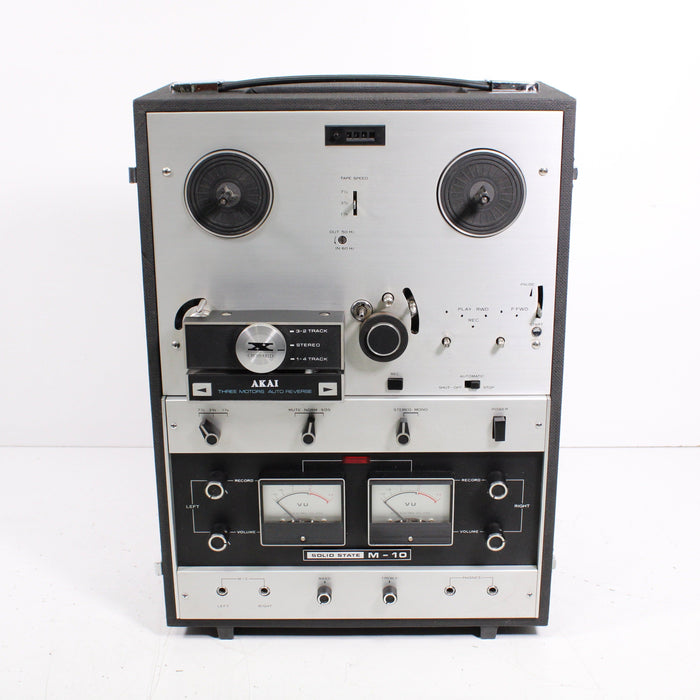

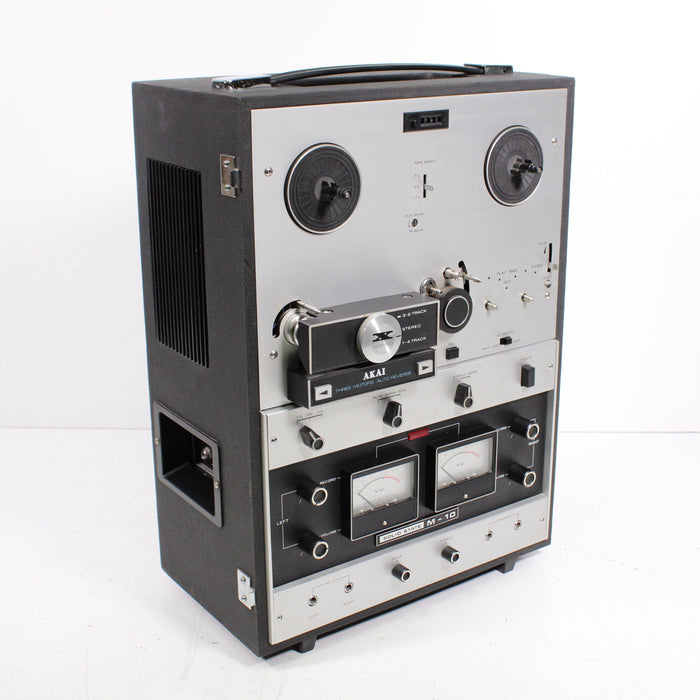

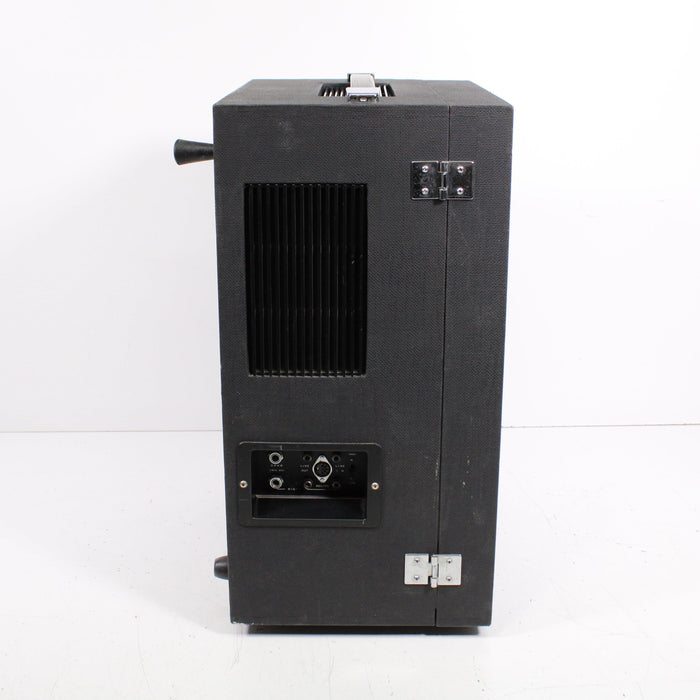

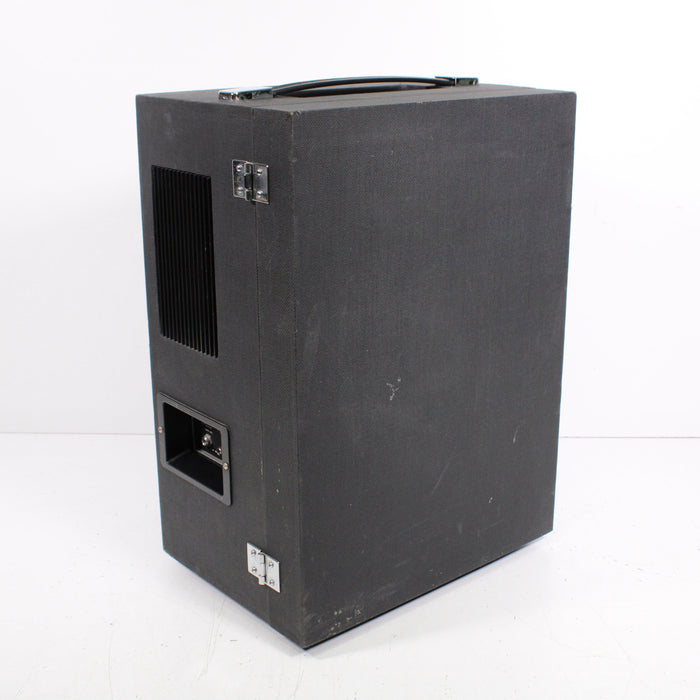

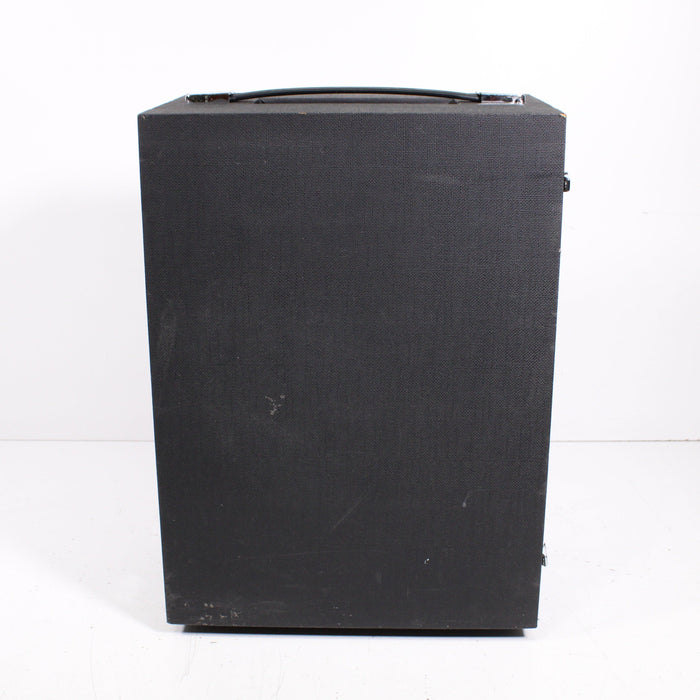

Akai M-10 Three Motor Auto Reverse Stereo Tape Recorder Reel to Reel Deck (AS IS)
The Akai M-10 is an incredible reel-to-reel player and recorder. This deck features 4-track stereo/monaural recording/playback, two ICs, and sensing tape or manual reverse. It also has three heads - but not the usual three. It features an erase head, a combined play/record head, and a cross-field head for improved fidelity of high frequencies. This system currently plays but is missing the play and rewind / fast-forward knobs, so for the right person who wants to give this amazing system the service and care it needs, it can become the perfect reel-to-reel deck!
CONDITION
Both the inside and outside along with all components and pots have been 100% cleaned with CRC.
Every switch and mode has been tested and confirmed working.
Cosmetic Condition: Missing the play and rewind / fast-forward controls. It has two different pairs of feet.
Functional Condition: Good, as-is (the system plays fine).
WHAT'S IN THE BOX?
- Akai M-10 Three Motor Auto Reverse Stereo Tape Recorder Reel to Reel Deck
- Built-In Protective Case
Other information about the Akai M10
- Track system: 4-track, 2-channel, stereo/monaural system
- Heads: 1 x record/playback, 1 x erase, 1 x bias
- Motor: 2 x reel drive, 1 x capstan
- Reel size: up to 10.5 inch reel
- Tape speeds: 1 7⁄8 3 3⁄4 7 1⁄2 ips
- Wow and flutter: 0.1% (7 1⁄2 ips)
- Frequency response: 30Hz to 25kHz (7 1⁄2 ips)
- Signal to Noise Ratio: 48dB
- Total harmonic distortion: 3%
- Crosstalk: 43dB
- Input: 50mV (line), 5mV (DIN), 0.5mV (mic)
- Output: 1.23V (line), 0.4V (DIN)
- Cross-Field Recording System
- Two VU meters
DIMENSIONS
- 14" x 14" x 9" (Length x Width x Height)
- Weight: 37.5 lbs
INPUTS
- Microphone Input L/R x1 (front)
- Line In L/R x1 (side)
- DIN Rec / PB x1 (side)
OUTPUTS
- Headphones Jack L/R x1 (front)
- Speaker R/L x1 (side)
- Line Out L/R x1 (side)
- DIN Rec / PB x1 (side)
MANUFACTURER
- Made in Japan
