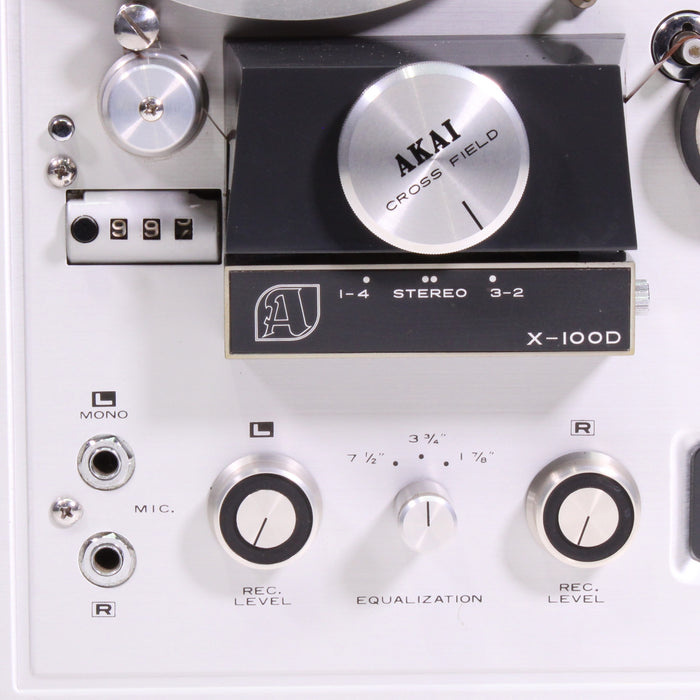

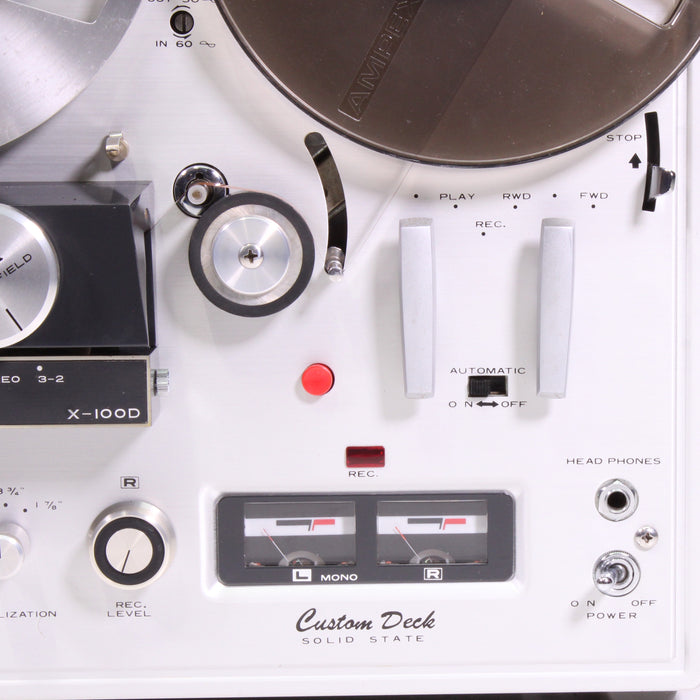

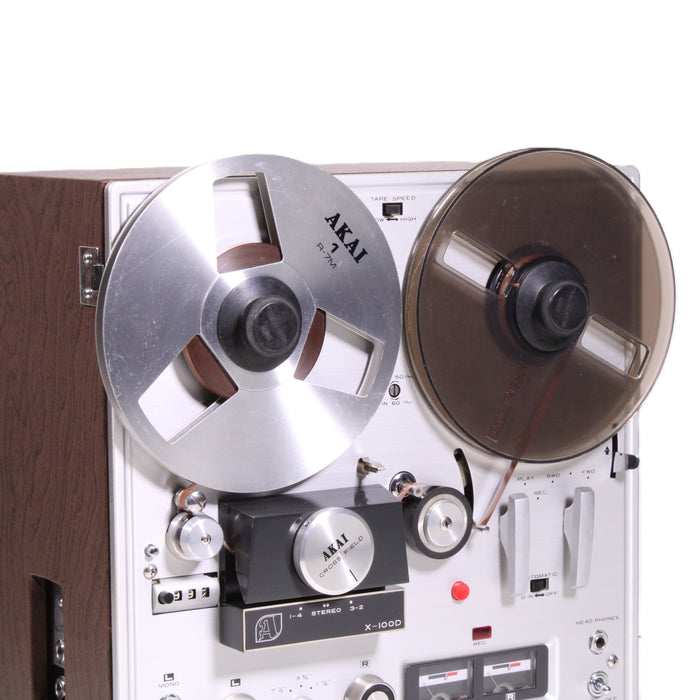

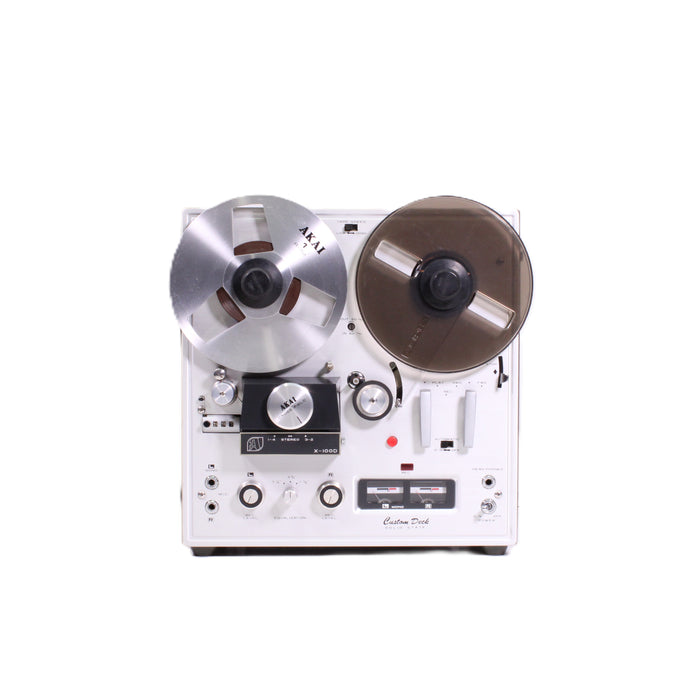

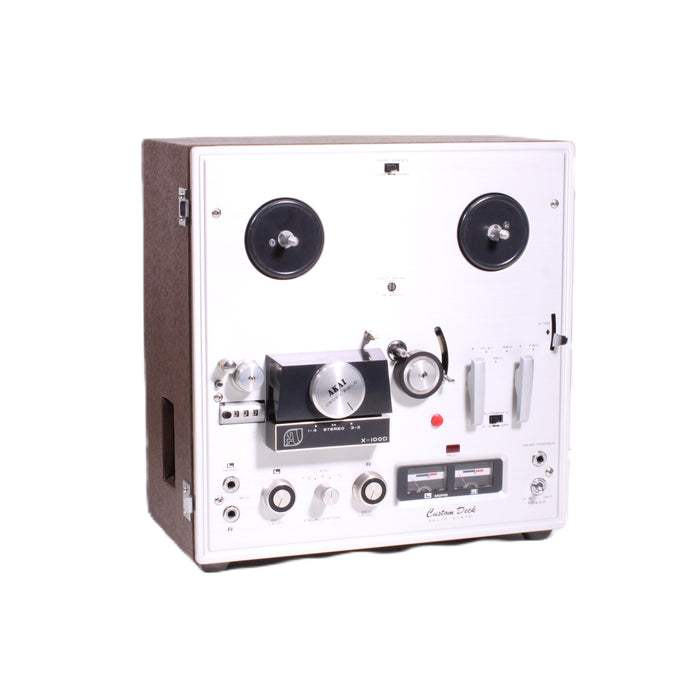

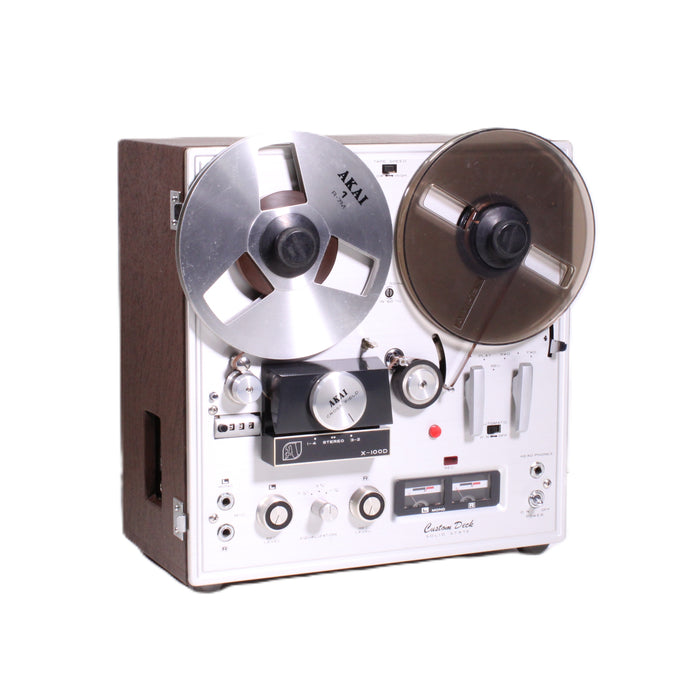

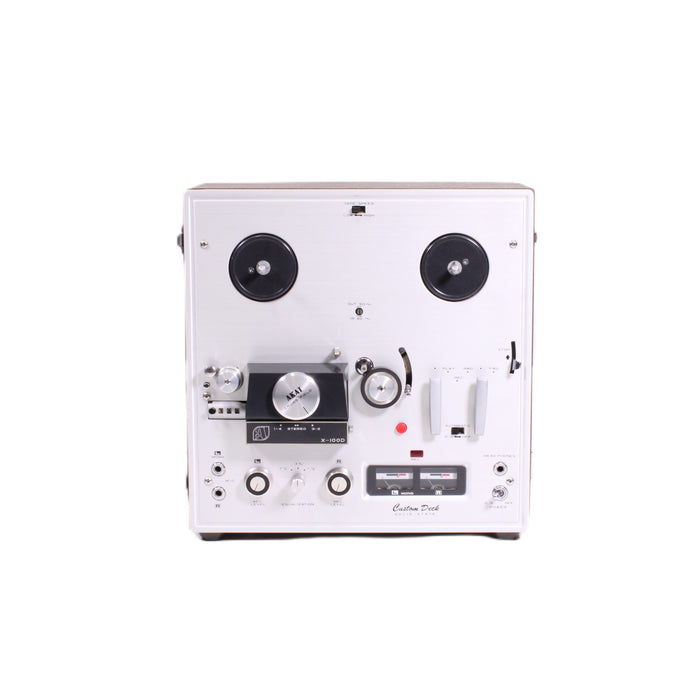

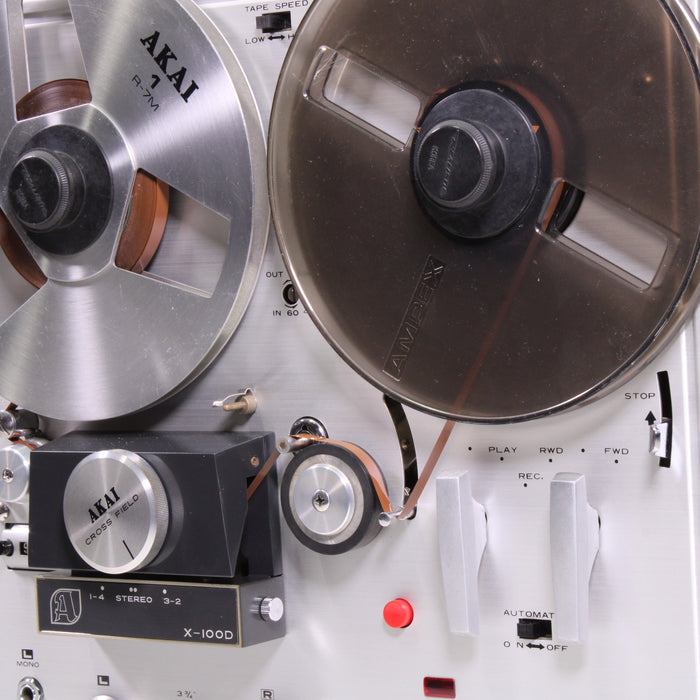

Akai X-100D 4-Speed 3-Head Reel to Reel Tape Recorder
Experience warm vintage analog sound with the Akai X-100D 4-Speed 3-Head Reel to Reel Tape Recorder. Built during the golden era of home tape recording, this classic Akai deck features Cross-Field recording technology for improved high-frequency performance and detailed analog playback. Its rugged transport, analog controls, and timeless silver-face styling make it a standout addition to any vintage audio setup. Fully tested and performing well, this reel-to-reel recorder is ready to bring your tapes back to life. A true Akai classic—SpenCertified and ready to perform.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
100% tested and functional. Cleaned inside and out; worn parts replaced as needed. Tape heads cleaned and demagnetized, capstan and pinch roller serviced, and transport lubricated for stable tape movement. Controls and switches cleaned with WD-40 Specialist Electrical Contact Cleaner, safe for electronics. Internal components were inspected and adjusted for reliable playback and recording operation.
Cosmetic Condition: 9/10
Functional Condition: 10/10
WHAT'S IN THE BOX?
- Akai X-100D 4-Speed 3-Head Reel-to-Reel Tape Recorder
- Analog Audio Cables
Other information about the Akai X-100D
- Track system: 4-track, 2-channel, stereo/monaural system
- Heads: 1 x record/playback, 1 x erase, 1 x bias
- Motor: 2 speed hysteresis synchronous
- Equalization: NAB
- Tape speeds: 1 7⁄8 3 3⁄4 7 1⁄2 ips
- Wow and flutter: 0.15% (7 1⁄2 ips)
- Frequency response: 30Hz to 13kHz (7 1⁄2 ips)
- Signal to Noise Ratio: 45dB
- Total harmonic distortion: 3%
- Input: 50mV (line), 0.5mV (mic)
- Output: 1.23V (line)
- Semiconductors: 11 x transistors, 2 x diodes, 2 x rectifiers

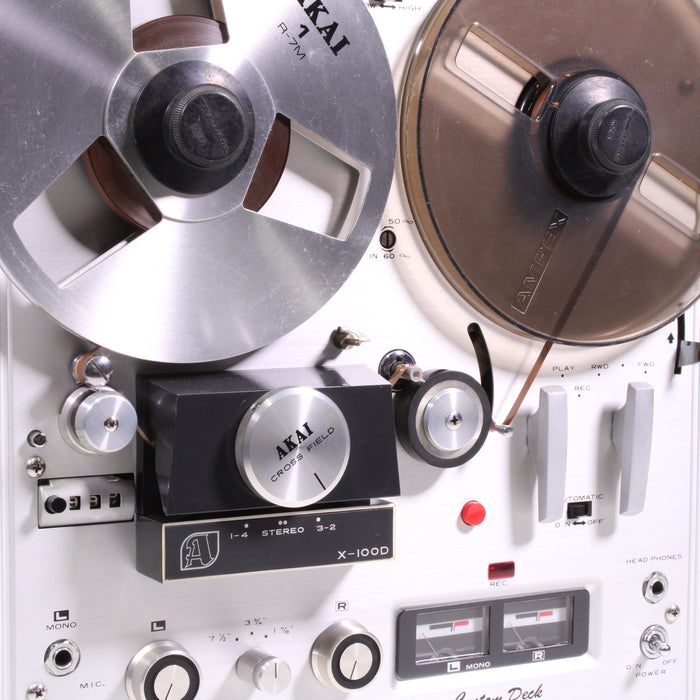

- Cross-Field recording technology
- Stereo recording and playback

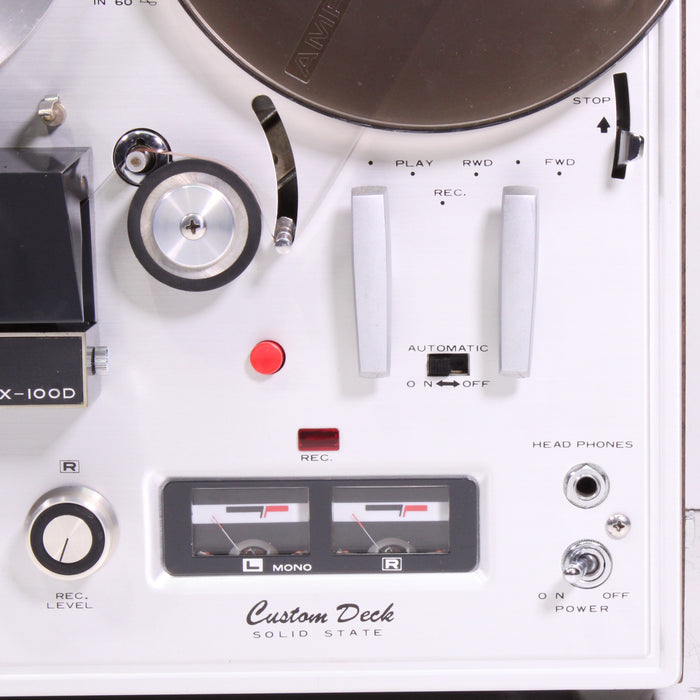

- Analog VU meters
- Front-panel microphone inputs
- Headphone monitoring output
- Mechanical transport controls
- Vintage silver-face styling
- Compatible with up to 7" reels
DIMENSIONS
- Size: 13.5" x 13.5" x 9" (HxWxD)
- Weight: 30 lbs

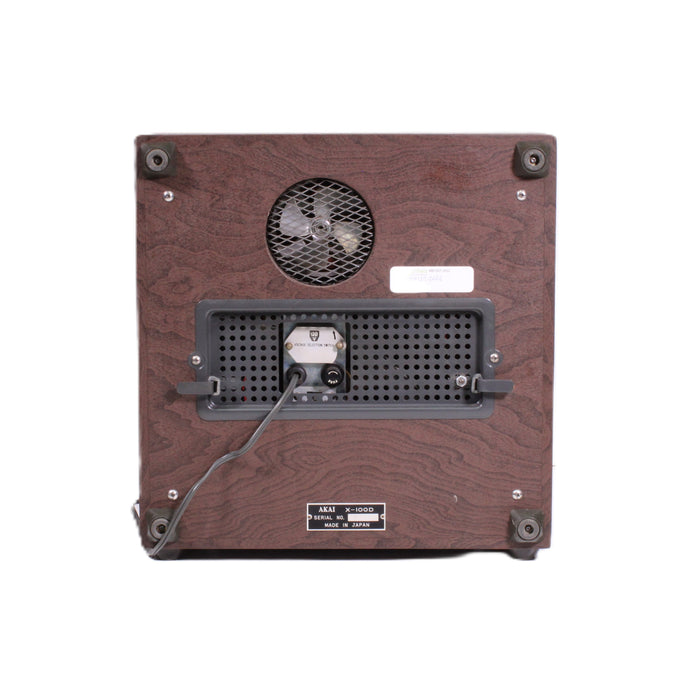

INPUTS
- Microphone L/R x1 (front)

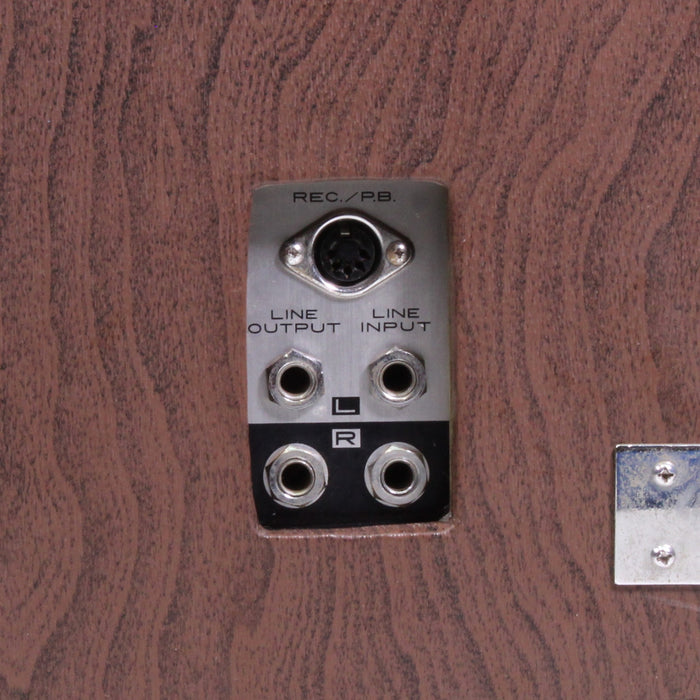

- Line In R/L x1 (back)
- Rec/P.B. x1 (back)

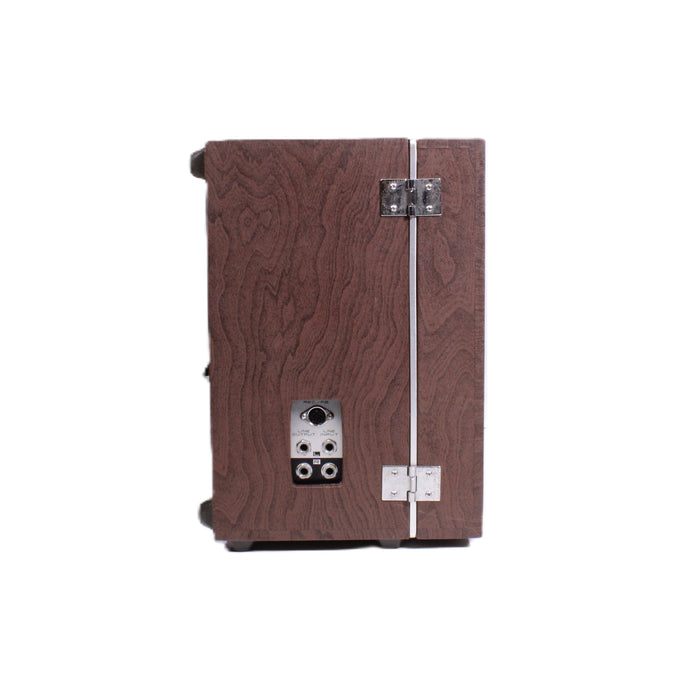

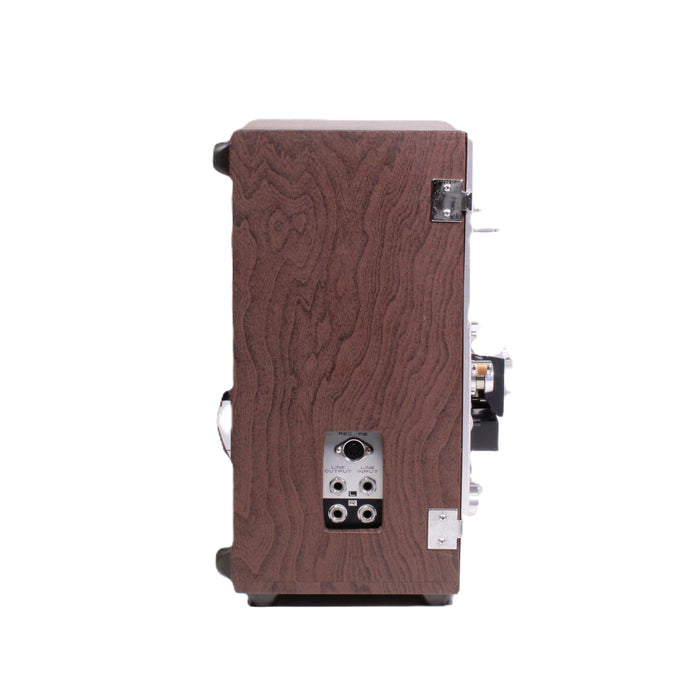

OUTPUTS
- Headphones Jack x1 (front)
- Line Out R/L x1 (side)
- Rec/P.B. x1 (side)
MANUFACTURE DATE and PLACE
- Made in Japan
