AudioPur PLA92-6 Planar Ribbon Tweeter Speaker Driver Replacement Part
Save 27%
Original price
$109.99
Original price
$109.99
-
Original price
$109.99
Original price
$109.99
Current price
$79.99
$79.99
-
$79.99
Current price
$79.99
The AudioPur PLA92-6 is a planar ribbon tweeter initially custom designed for a rear mount application. Conductive tracings are implanted in a flat Kapton membrane. Strong neodymium magnets and an electrical current cause the diaphragm to move, creating the high frequency sound. Planar tweeters have a detailed and airy sound. They also make good super tweeters with their high sensitivity. It's an excellent speaker for DIY speaker designs.
OTHER PART NUMBERS ASSOCIATED WITH IT INCLUDE...
- PLA926
CONDITION
Like New. Never Used.
This is a never-before used tweeter! It's in excellent shape and is ready to integrate into your speaker right out of the box.
📦 Professionally packed and shipped with care.
Cosmetic Condition: Very Good.
Functional Condition: Works Like New.
WHAT'S IN THE BOX?
- AudioPur PLA92-6 Planar Ribbon Tweeter Speaker Driver Replacement Part
Other information about AudioPur PLA92-6

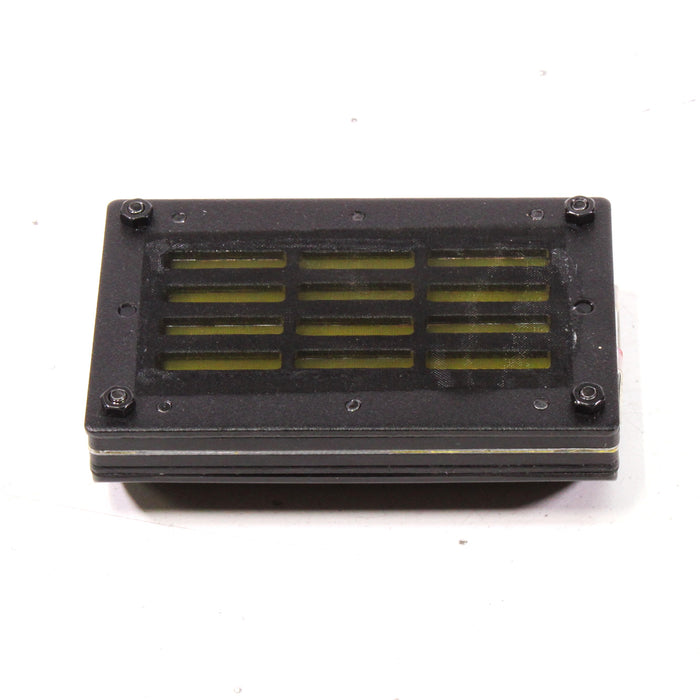

- Fine mesh screen protects against dust
- Kapton former with aluminum foil conductor
- Strong Neodymium magnets
- Chambered back with felt padding
- Impedance: 6 ohms
- Sensitivity: 95dB
- Frequency range: 1.5kHz to 35kHz
- Recommended lowest crossover point: 2.5kHz w/ steep slope
- 15W RMS power handling*
- *The music power rating is much higher than an RMS rating. A RMS is full spectrum at a constant output, where music has different levels of output at different frequencies.
DIMENSIONS
- Overall: 59mm x 92mm x 28mm (Width x Height x Depth)
- Diaphragm Area: 70mm x 30mm
- No. of Mounting Holes: 4
