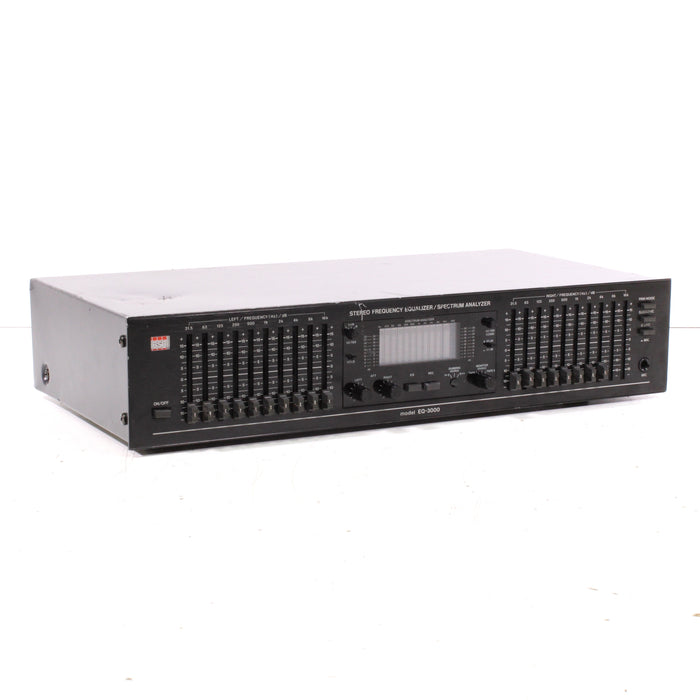

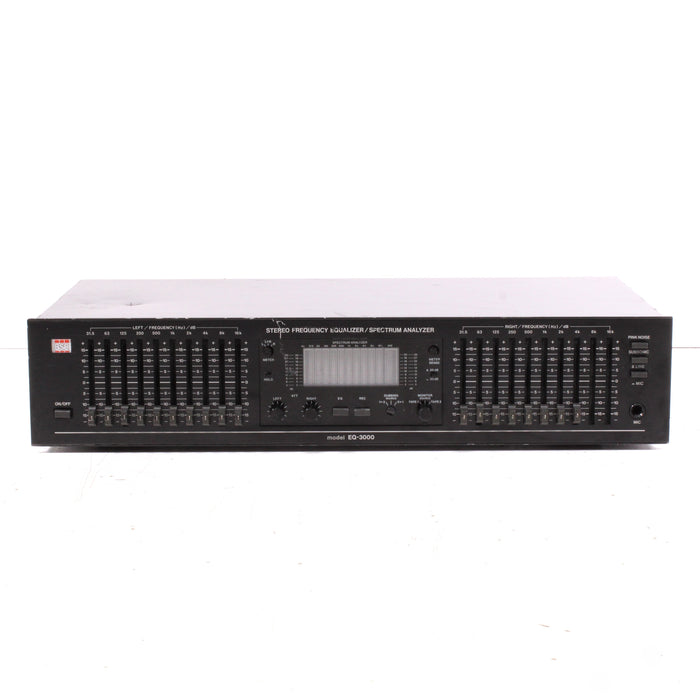

BSR EQ-3000 10-Band Stereo Frequency Graphic Equalizer Spectrum Analyzer
This old-school BSR EQ-3000 is not only a stereo frequency equalizer, it's also a real-time frequency spectrum analyzer. It uses a fluorescent indicator that analyzes and displays sound source frequencies and room acoustics. This is handy for recording or for playing back audio in an environment where accurate sound is vital. It has ten bands (31.5Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8KHz, and 16KHz) and produces clean, clear audio. It's also sleek and compact so it's easier to find space for. This unit works, but please note that it is missing a couple of sliders knobs at the 8kHz and 16kHz frequencies on the right.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
We have cleaned it inside and out and replaced any worn parts. A recap was performed if necessary. All pots, knobs, connectors and boards have been cleaned with CRC cleaner.
Cosmetic Condition: Poor (has a couple dents and some scratch marks).

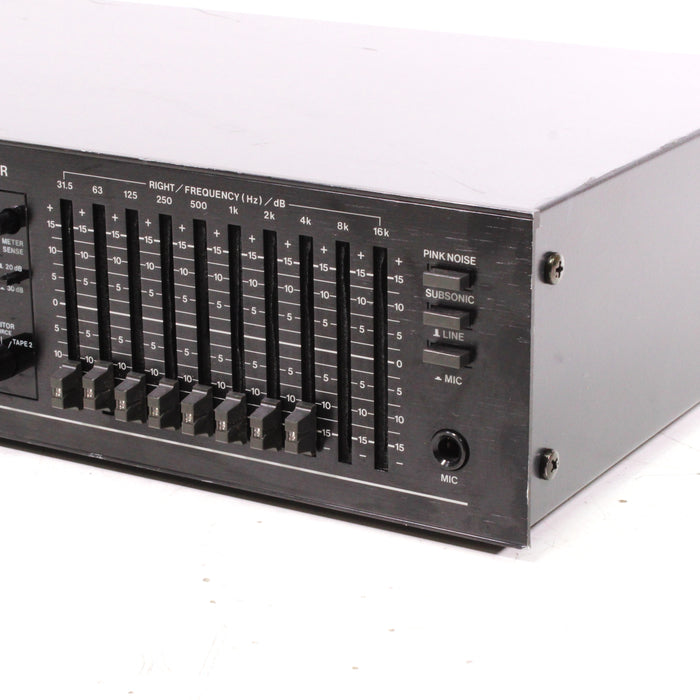

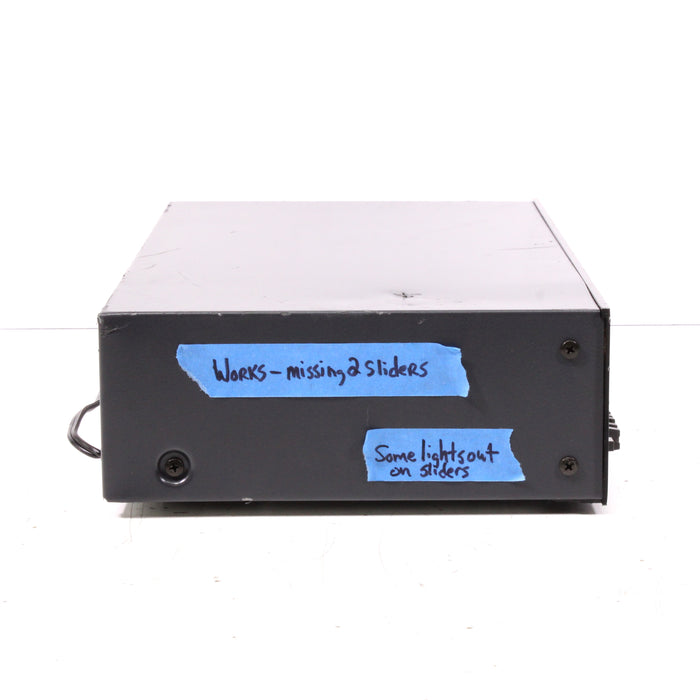

Functional Condition: Works, but missing a couple of sliders knobs at the 8kHz and 16kHz frequencies on the right.
WHAT'S IN THE BOX?
- BSR EQ-3000 10 Band Stereo Frequency Graphic Equalizer Spectrum Analyzer
- Analog Audio Cable
Other information about the BSR EQ3000
- Frequency Bands: 31.5, 63, 125, 250, 500, 1K, 2K, 4K, 8K, 16KHz
- Input Sensitivity: 7V (max)
- Output Level: 1V (7V max)
- Gain: ± 1dB
- Frequency response: 5Hz to 100kHz
- Signal to Noise Ratio: 100dB
- Total harmonic distortion: 0.008%
- Control Range: ± 15dB
- Finish: black
DIMENSIONS
- 17.13" x 9.4" x 3.63" (Length x Width x Height)
- Weight: 9.5 lbs

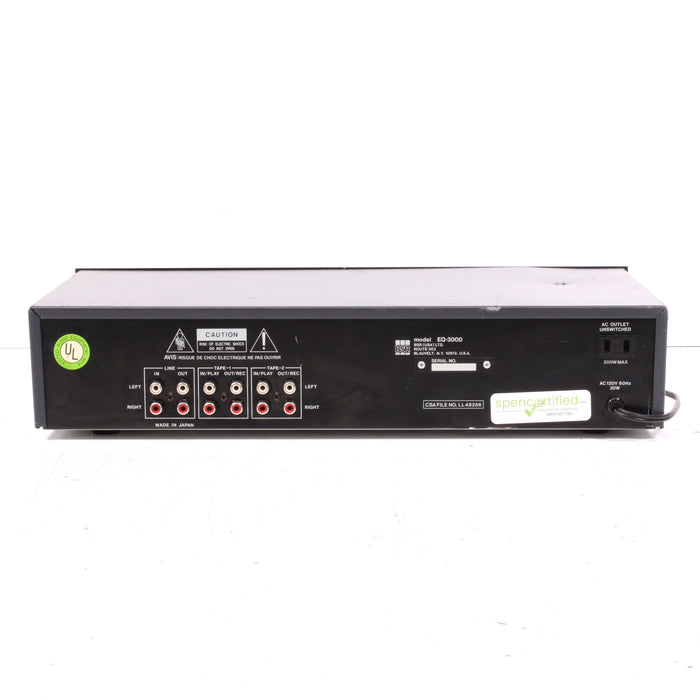

INPUTS
- Mic x1 (front)
- Line In L/R x1 (back)
- Tape In L/R x2 (back)
OUTPUTS
- Line Out L/R x1 (back)
- Tape Rec Out L/R x2 (back)
- AC Outlet x1 (back)
MANUFACTURER
- Made in Japan
