Crown PT 1.1 PowerTech One.One Power Amplifier 210W (2001)
Please the crowd with the Crown PT 1.1! This is a Power-Tech Series amplifier, which means it has clean, punchy audio, reliability, and power to spare. This rugged, professional power amplifier was built for the road. It's rated at 210 watts per channel into 8 ohms (stereo) from 20Hz to 20kHz with 0.1% THD. And its high damping factor provides superior control over low-frequency drivers for a clean, accurate low end. It's a rock-solid, rack-mountable amp that's perfect for adding more power to your system.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
Every function has been confirmed 100% working. We have cleaned it inside and out and replaced any worn parts. A recap was performed if necessary. All pots, knobs, connectors and boards have been cleaned with CRC cleaner.
Cosmetic Condition: Good.
Functional Condition: Works Like New.
WHAT'S IN THE BOX?
- Crown PT 1.1 PowerTech One.One Power Amplifier 210W
Other information about the Crown PT 1.1
- Power output: 210W/CH at 8 ohms with 20Hz-20kHz (stereo); 275W/CH at 4ohms with 20Hz-20kHz (stereo); 550W/CH at 8 ohms with 20Hz-20kHz (bridge-mono)
- Frequency Response: ±0.1 dB from 20 Hz to 20 kHz at 1 watt
- Phase Response: ±10 degrees from 10 Hz to
20 kHz at 1 watt - Signal-to-Noise: A-weighted, better than 105 dB below full bandwidth power. Better than 100 dB below full bandwidth power from 20 Hz to 20 kHz
- Total Harmonic Distortion (THD): Less than 0.05% at full bandwidth power from 20 Hz to 1 kHz increasing linearly to 0.1% at 20 kHz
- Damping Factor: Greater than 1,000 from 10 Hz to 400 Hz
- Crosstalk: Greater than 75 dB below full bandwidth power from 50 Hz to 2 kHz, rising linearly to greater than 60 dB at 20 kHz
- Load Impedance: Safe with all types of loads. Rated for 4 to 8 ohms in Stereo, 8 to 16 ohms in Bridge-Mono and 2 to 4 ohms in Parallel Mono mode
- Rugged, professional power amplifier built for the road

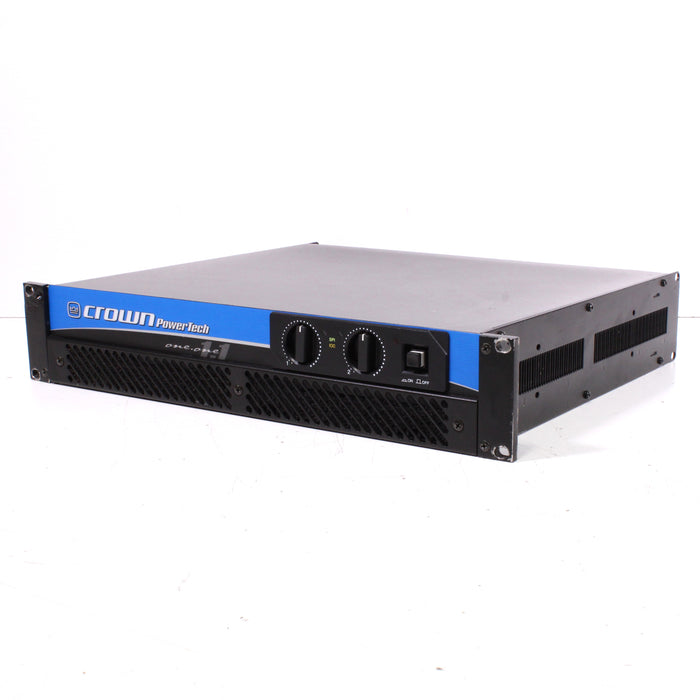

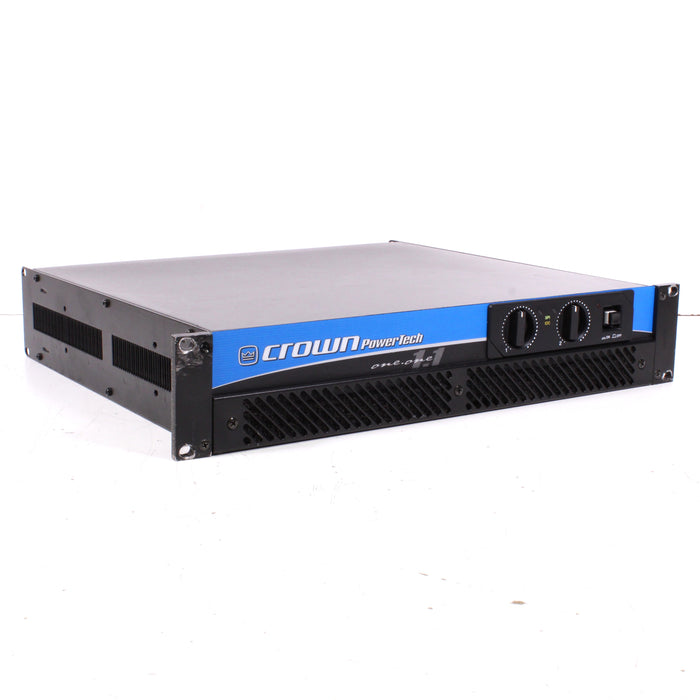

- Quick-access front panel power switch and level controls protection
- Patented ODEP circuitry and Grounded Bridge design combine to provide performance and reliability that surpass traditional designs
- Easy to read signal presence (SPI) and distortion (IOC ) indicator for each channel
- High damping factor provides superior control over low-frequency drivers for a clean, accurate low end
- Bridge-Mono and Parallel-Mono modes make it easy to optimize the amplifier’s performance for a wide range of loads

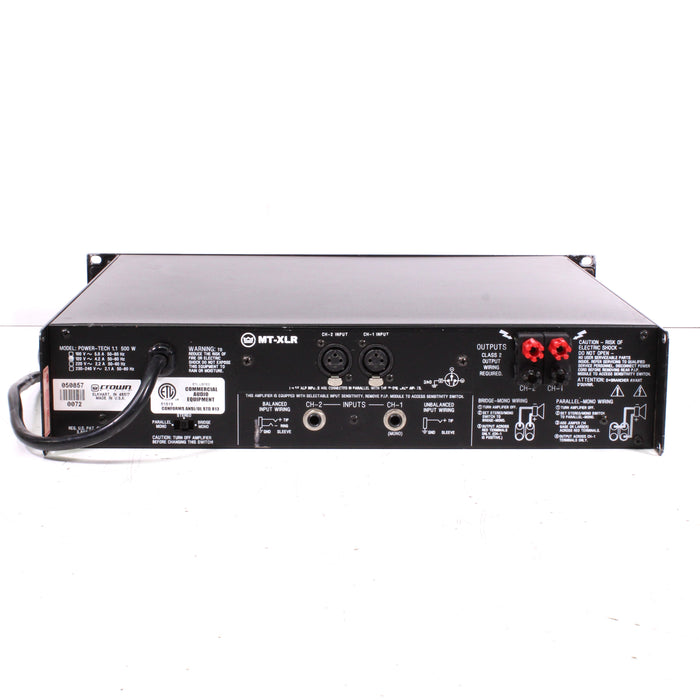

- Balanced phone jack inputs in parallel with XLR input connectors
- Complete protection against shorted outputs, mismatched loads, overheating, input/output DC and high-frequency overload; full internal fault protection
DIMENSIONS
-
19" x 16" x 3.5" (Length x Width x Height)
- Weight: 30 lbs
MANUFACTURE DATE and PLACE
- MFD. 2001
- Made in USA
