Dahlquist DQ-20 3-Way Phased Array Dynamic Speaker Pair RARE
🔍 Phased Array Design
Dahlquist’s Phased Array design was developed to deal with two basic areas of loudspeaker inaccuracy: time-delay distortion and diffraction effects. In general, the direct sounds from the different drivers of a multiway system arrive at the listener’s position at slightly different times because of differences in the inertia of their moving systems and unequal distances from their voice coils to their front mounting planes and from the mounting planes to the listener. The combined result of these effects can be degraded spatial definition.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
This pair of Dahlquist DQ-20 speakers is in great condition, both functionally and cosmetically. All drivers are original and fully operational, with clear, balanced output across the frequency range. The woofers deliver tight, accurate bass, while the midrange and tweeters provide detailed and natural sound with excellent imaging—true to the DQ-20’s audiophile reputation. The crossover networks are functioning properly, and the time-aligned driver array remains intact and well-preserved.

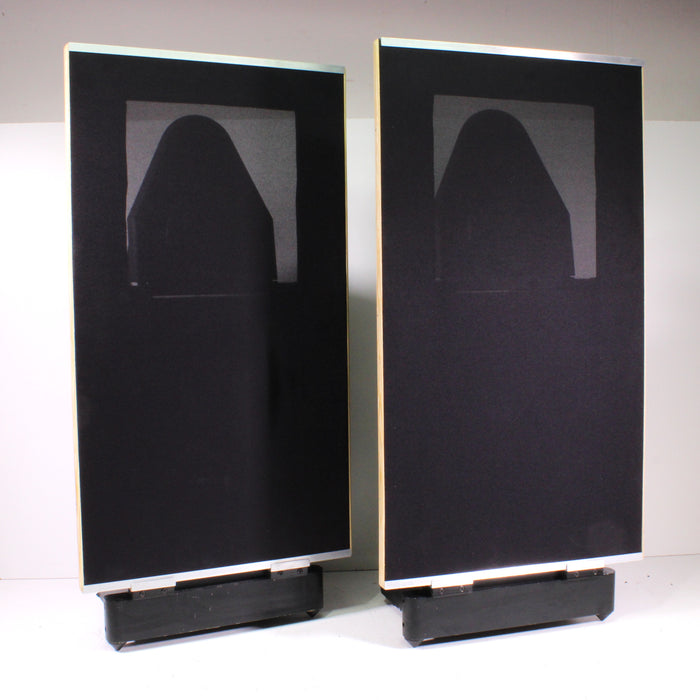

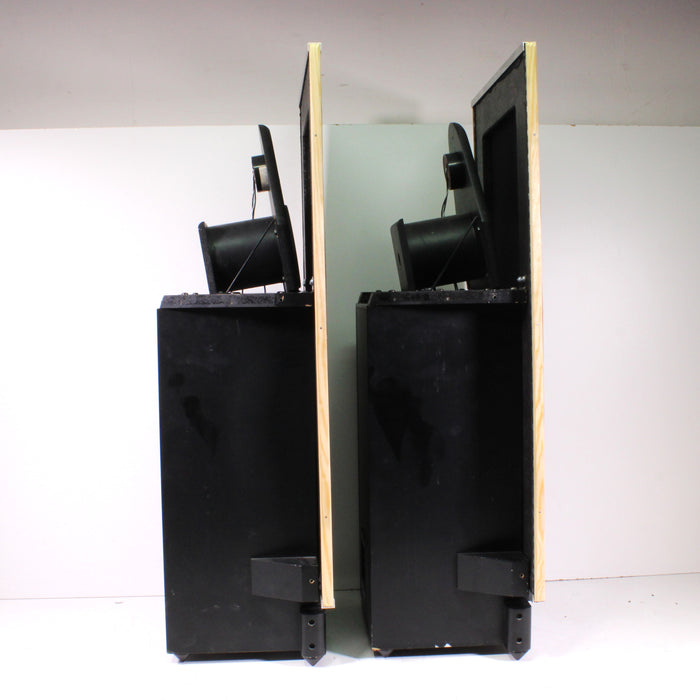

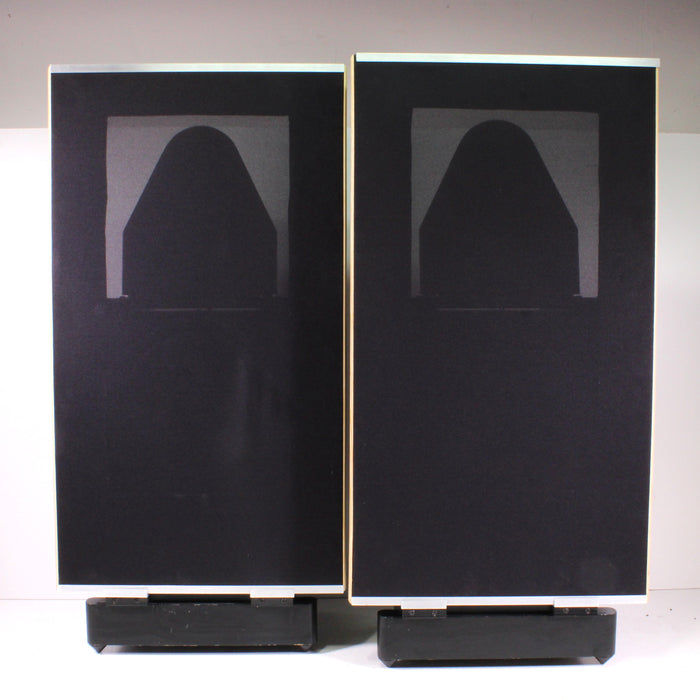

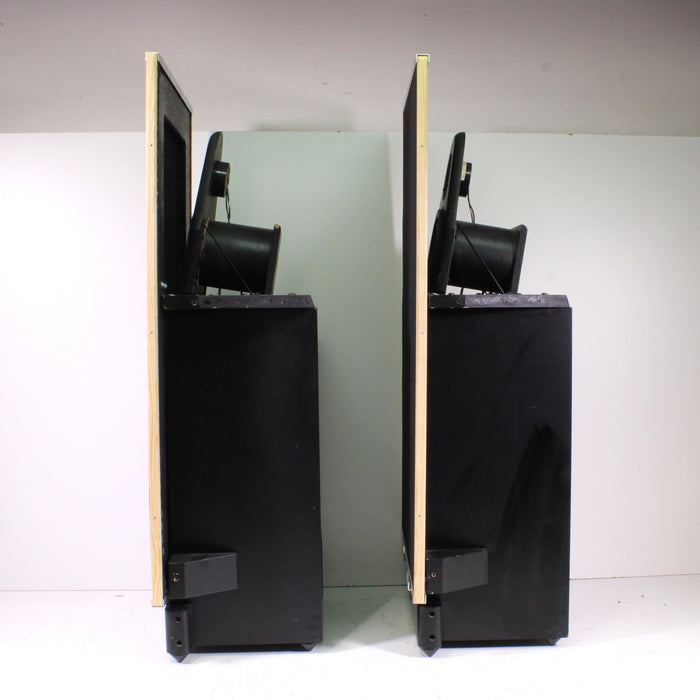

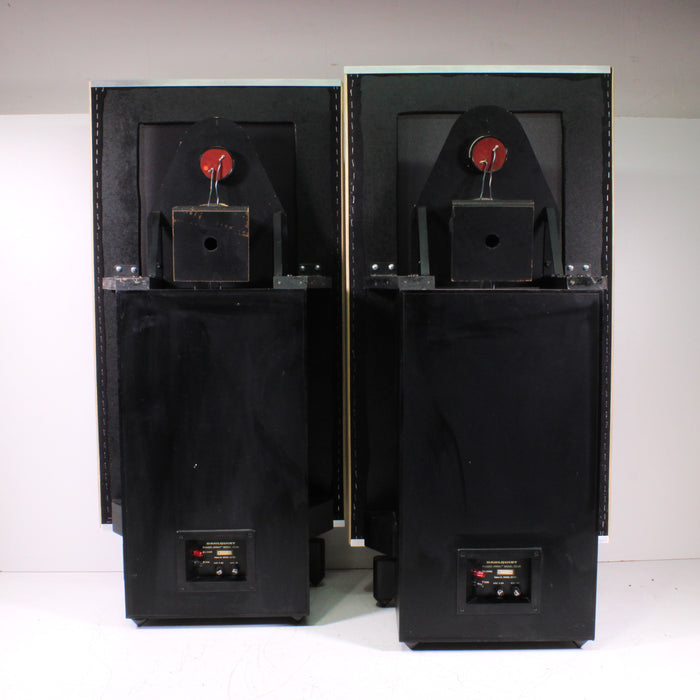

Cosmetically, the cabinets are clean with some wear on the back of the units. The fabric grills are in excellent shape with no holes or snags, and all trim pieces are present.
Cosmetic Condition: Good.
Functional Condition: Works Like New.
WHAT'S IN THE BOX?
- Dahlquist DQ-20 3-Way Phased Array Dynamic Speaker Pair RARE
- Speaker Wire
Other information about the Dahlquist DQ20
-

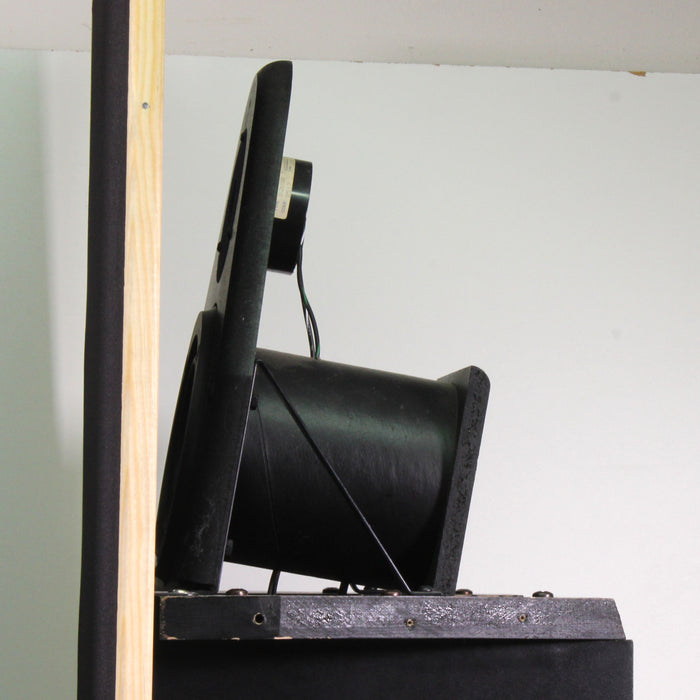

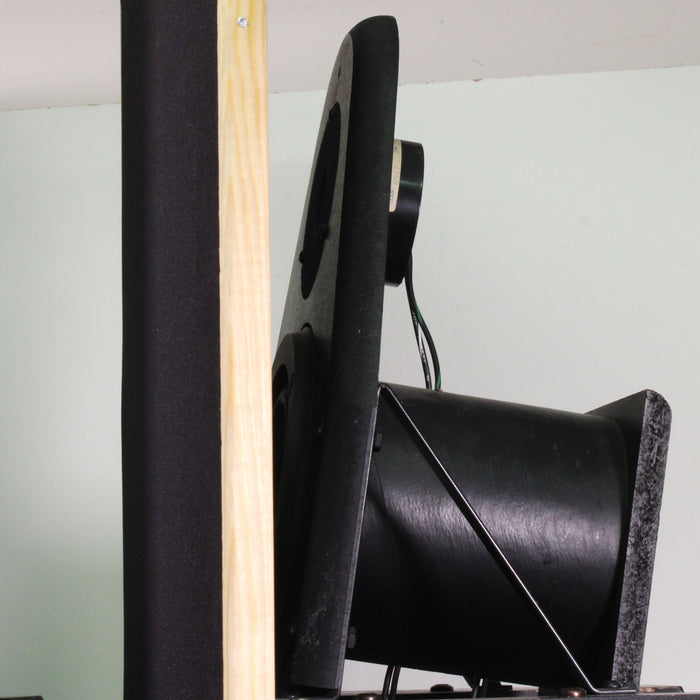

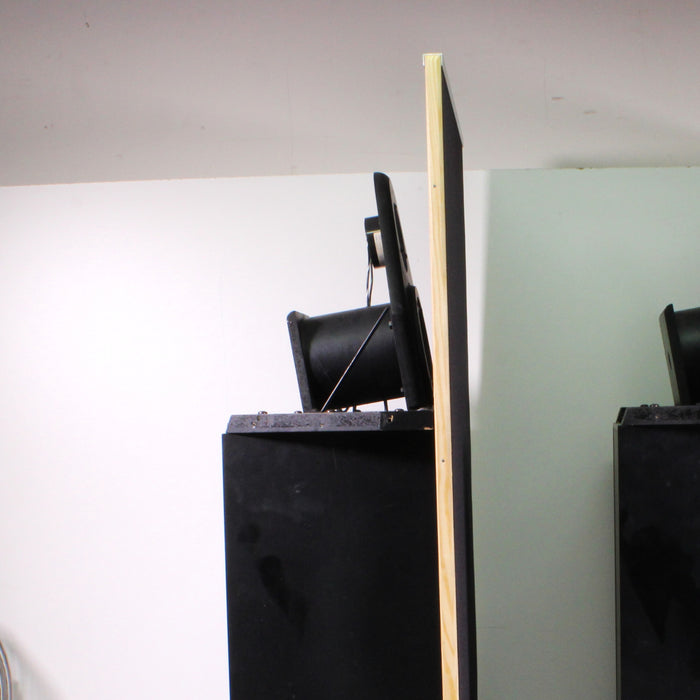

Three-way design with vertically aligned drivers
- 10-inch acoustic-suspension woofer crosses over to a 5-inch midrange cone at 400 Hz
- Second crossover, at 3,500 Hz, is to a 3/4-inch soft-dome tweeter

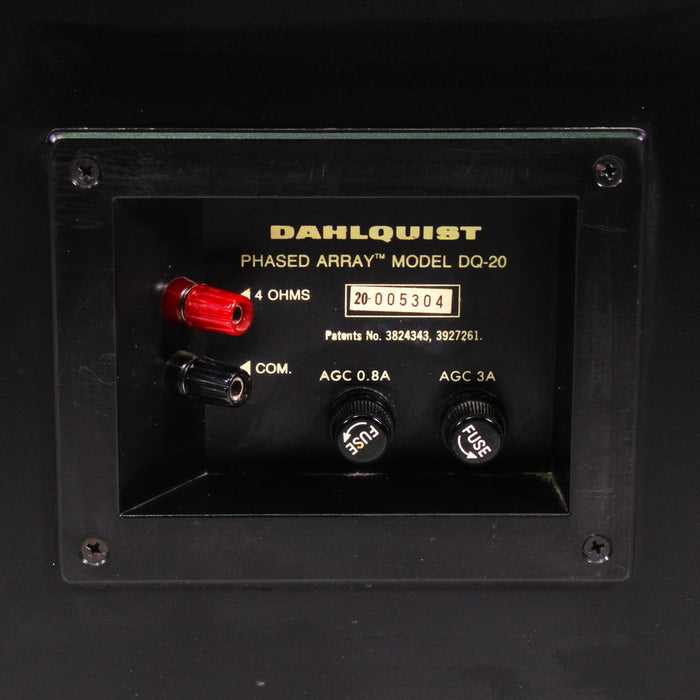

- Nominal system impedance: 6 ohms (4 ohms minimum)
- Frequency response: 50 to 20,000 Hz ±2.5 dB (1,000 to 20,000 Hz ± 1 dB)
- Recommended for use with amps rated to deliver between 50 and 250 watts
- Mounted on an integral base about 3 inches high (not including the spikes)
- Tweeter is a Scan-Speak D2008
DIMENSIONS
- 20.4" x 11.5" x 41.5" (Length x Width x Height)
- Weight: 60 lbs
