Dayton Audio DATS V3 Computer Based Audio Component Test System
Dayton Audio created the DATS V3 to be the most complete and easy-to-use audio test system. With improvements to the accuracy, capability, and reliability of the previous models, the DATS V3 sets a new standard for quick and accurate audio component measurements. It features tighter tolerances on internal components for more precise measurements and increased output capability for greater separation from the noise floor, resulting in more accurate measurements. It's perfect for measuring loudspeaker drivers, crossover networks, and complete audio systems!
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
Every function has been confirmed 100% working. We have cleaned it inside and out and replaced any worn parts. A recap was performed if necessary. All pots, knobs, connectors and boards have been cleaned with CRC cleaner.
Cosmetic Condition: Very Good.
Functional Condition: Works Like New.
WHAT'S IN THE BOX?

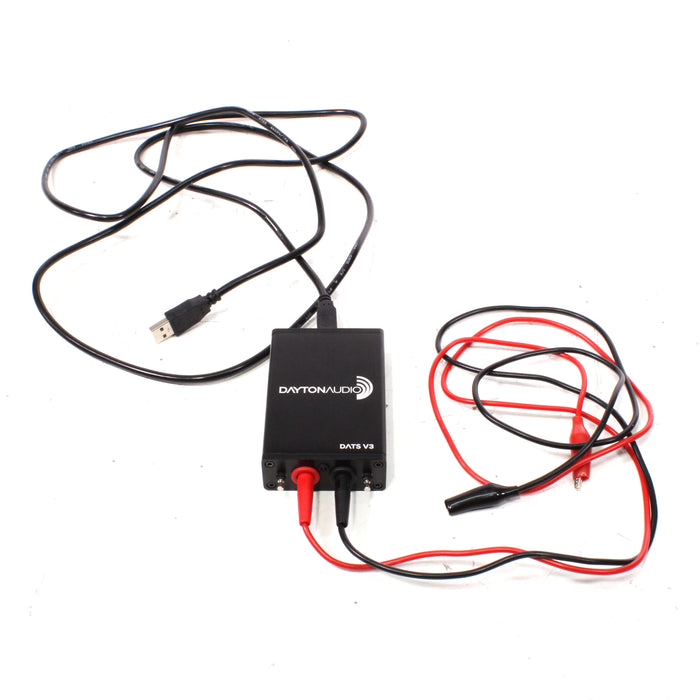

- DaytonAudio DATS V3 Computer Based Audio Component Test System
- Cables
Other information about the DaytonAudio DATSV3

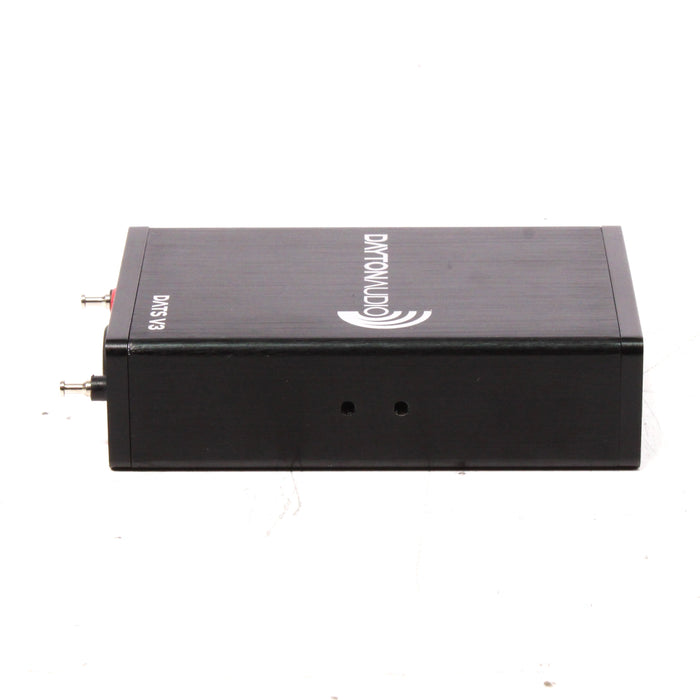

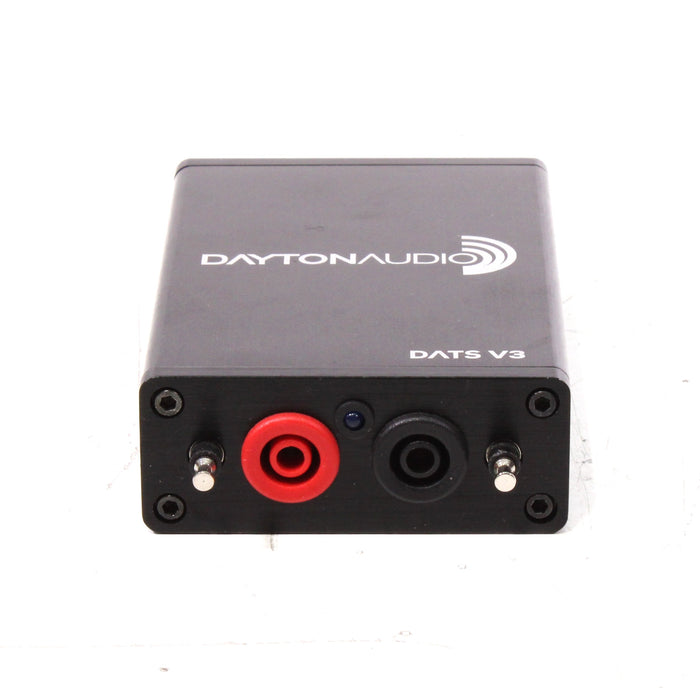

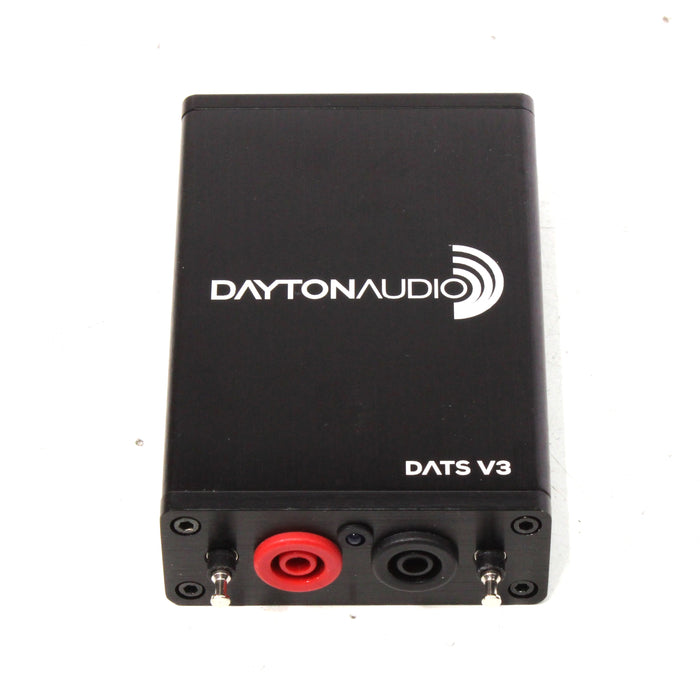

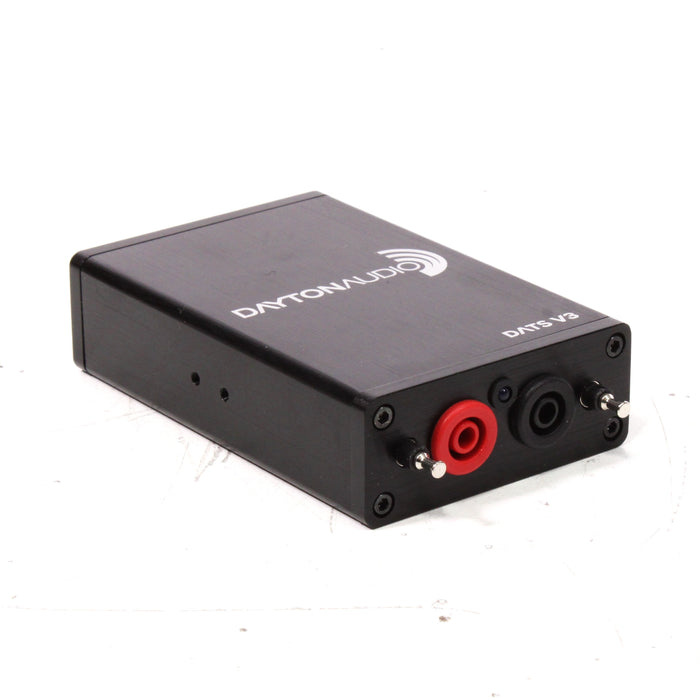

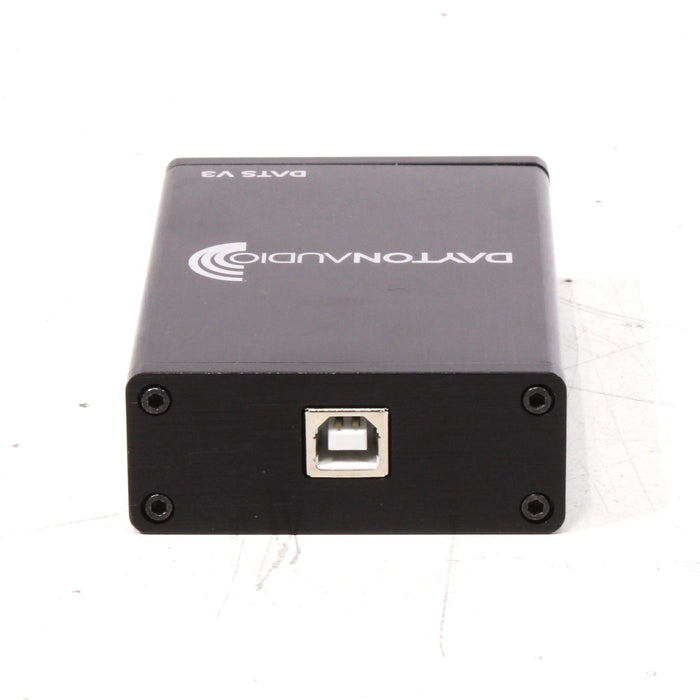

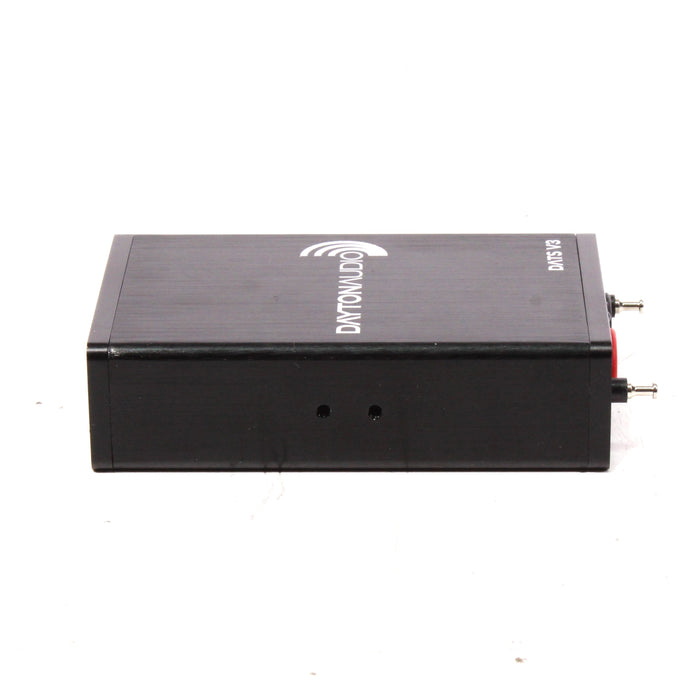

- Rugged aluminum housing with detachable test leads and built-in precision calibration resistor
- Tighter tolerances on internal components for more precise measurements
- Linearity test allows you to easily observe shifting parameters with different drive levels
- Increased output capability for greater separation from the noise floor for more accurate measurements
- Optional under desk mounting brackets to save desk space
- Precise impedance response measurement for loudspeaker drivers and complete systems
- Accurate measurement of loudspeaker electromechanical parameters (Fs, Qts, Vas, and many more)
- Measurement of advanced Wright Model parameters (Kr, Xr, Ki, Xi) for precision simulations
- Precise, high-resolution impedance response measurements with 30,000 data points (1 Hz to 20,000 Hz)
- Save and compare up to 20 impedance graphs simultaneously within one test file
- Integrated quality control feature set provides pass/fail parameter measurement
- Sensitive rub and buzz detection functionality reveals hidden flaws in individual drivers
- Software signal generator with selectable waveform, frequency, and amplitude
- Generates sine, square, triangle, saw tooth, impulse, pink noise, and log sweeps
- Oscilloscope software mode with dual traces, plus adjustable time and amplitude scales
- Oscilloscope and generator modes are compatible with other audio interfaces
- Quality test interface hardware assembled using precision SMT components and automation
- High-quality alligator clip leads minimize contact resistance for improved consistency
- Includes method for calculating Vas from specified Mmd
- Faster-than-ever hardware startup time virtually eliminates warm-up/cool-down
DIMENSIONS
-
2.5" x 4.125" x 1" (Length x Width x Height)
- Weight: 0.8 lbs
MANUFACTURER
- Made in USA
