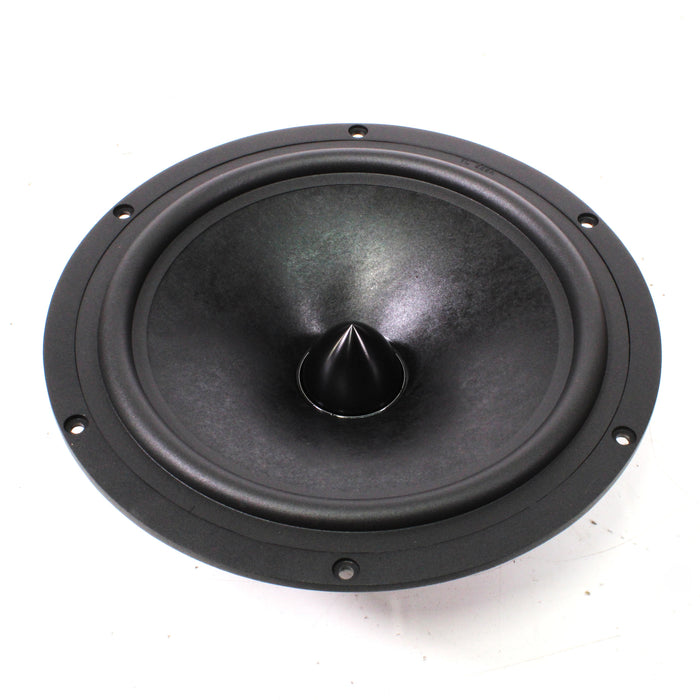

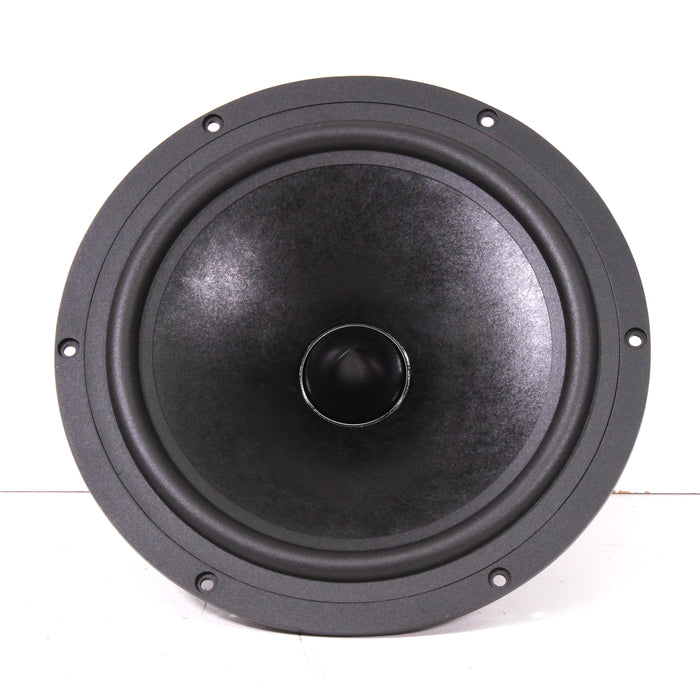

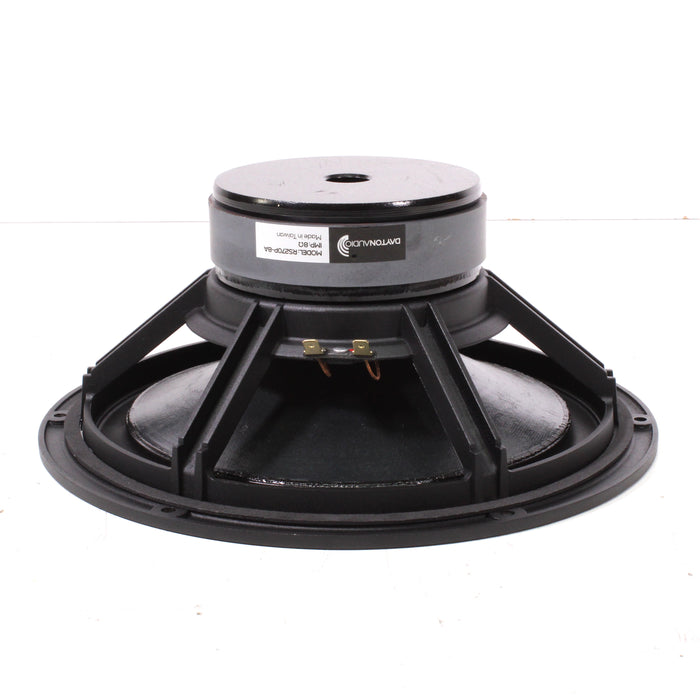

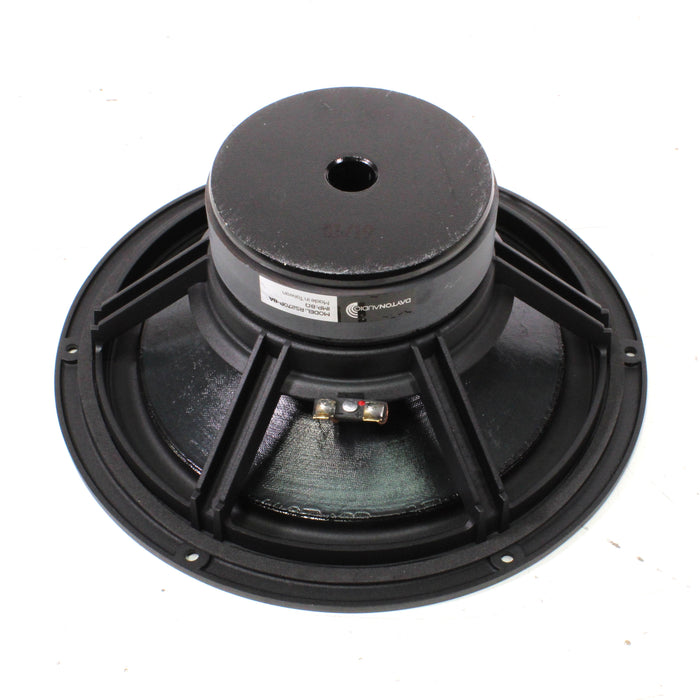

Dayton Audio RS270P-8A 10" Reference Paper Woofer 8 Ohms with Original Box
The Dayton Audio RS270P-8A is the perfect replacement driver for your home audio speaker! It's part of the Reference Series Paper Drivers, which use a proprietary paper cone formulation combining natural paper pulp with synthetic Kevlar and glass fibers to create an advanced non-woven fiber composite that delivers excellent detail and smooth, natural audio every time. It was also designed to offer the lowest distortion possible so you can enjoy your music the way it was meant to be heard.
OTHER PART NUMBERS ASSOCIATED WITH IT INCLUDE...
- RS270P8A
- RS27OP8A
- RS27OP-8A
- 4879100269
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
Every function has been confirmed 100% working. All speaker parts have been cleaned. The speaker frame, dust cap, cone, and surround are in excellent condition.
Cosmetic Condition: Very Good.
Functional Condition: Works Like New.
WHAT'S IN THE BOX?
- DaytonAudio RS270P-8A 10" Reference Paper Woofer 8 Ohms

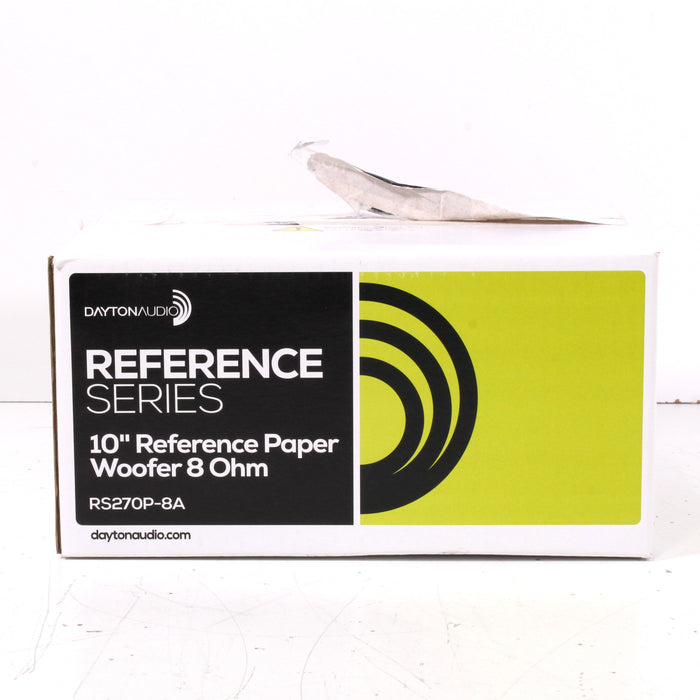

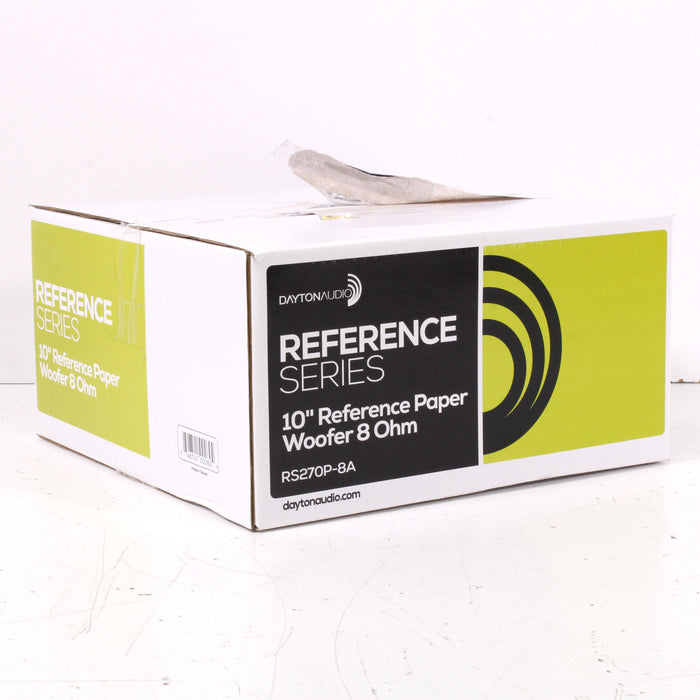

- Original Box
Other information about Dayton Audio RS270P-8A
- Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
- Low-distortion high-excursion motor system with two short-circuit paths
- Similar cosmetics and design features as original aluminum Dayton Audio Reference Series
- Perfect for use a woofer, midwoofer, or dedicated midrange driver
- 87.5 dB sensitivity and 6 mm of excursion
- Speaker Type: Woofer
- Nominal Diameter: 10"
- Power Handling (RMS): 100 watts
- Power Handling (max): 200 watts
- Impedance: 8 ohms
- Sensitivity: 87.5 dB @ 2.83V/1m
- Frequency Response: 23 - 6,000Hz
- Voice Coil Diameter: 2"
OPTIMUM CABINET SIZE*
-
Sealed Volume 1.39 ft.
-
Sealed F3 55 Hz
-
Vented Volume 4.47 ft.
-
Vented F3 29 Hz
- * Enclosure volume/F3s based on BassBox "optimum" calculations
DIMENSIONS
- Overall Outside Diameter: 272 mm (10.7 in)
- Overall Depth: 113 mm (4.45 in)
- Baffle Cutout Diameter: 236 mm (9.3)
- No. of Mounting Holes: 6
- Bolt Circle Diameter: 258 mm (10.16)
MANUFACTURER
- Made in Taiwan
