DBX 400X Active Program Route Selector Audio Switcher
Take control of a complex vintage audio system with the DBX 400X Active Program Route Selector. Designed for serious analog setups, the 400X can manage up to three tape decks, three sound processors, and a dedicated noise-reduction system from one convenient front panel. Push-button routing and LED indicators make it easy to configure recording, playback, dubbing, and processing paths without constantly reconnecting cables. Fully tested, refurbished, and SPENCERTIFIED for reliable everyday use.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
100% tested for primary operation. Controls and switches cleaned with WD-40 Specialist Electrical Contact Cleaner. Internal boards and connections inspected, RCA connections checked, and signal-routing functions verified for proper operation. The indicator lights are not working. One button is physically damaged, but the button remains functional.
Cosmetic Condition: 8/10 (indicator lights are not working)
Functional Condition: 10/10
WHAT'S IN THE BOX?
- DBX 400X Active Program Route Selector Audio Switcher
- Analog Audio Cable
Other information about the DBX 400X
- Type: Active Program Route Selector / Analog Audio Router
- Tape Deck Capacity: Up to 3
- Sound Processor Capacity: Up to 3
- Noise Reduction: Dedicated external noise-reduction processor loop
- Audio Connections: Stereo RCA line-level inputs and outputs
- Controls: Front-panel push-button routing selectors
- Indicators: LED function and signal-path indicators
- Power Consumption: 5W
- Power Requirements: AC50/60Hz

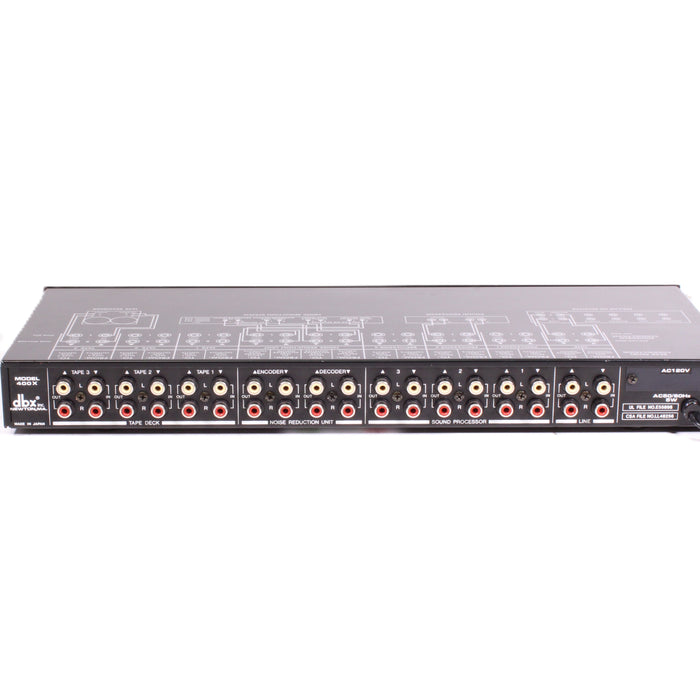

INPUTS
- Tape x3 L/R (back)
- Noise Reduction Unit x2 L/R (back)
- Sound Processor x3 L/R (back)
- Line x1 L/R (back)
OUTPUTS
- Tape x3 L/R (back)
- Noise Reduction Unit x2 L/R (back)
- Sound Processor x3 L/R (back)
- Line x1 L/R (back)
DIMENSIONS
- Size: 17-1/8" W × 1-3/4" H × 7-1/2" D
-
Weight: 5 lbs (2.3 kg)
MANUFACTURER
- Made in Japan
