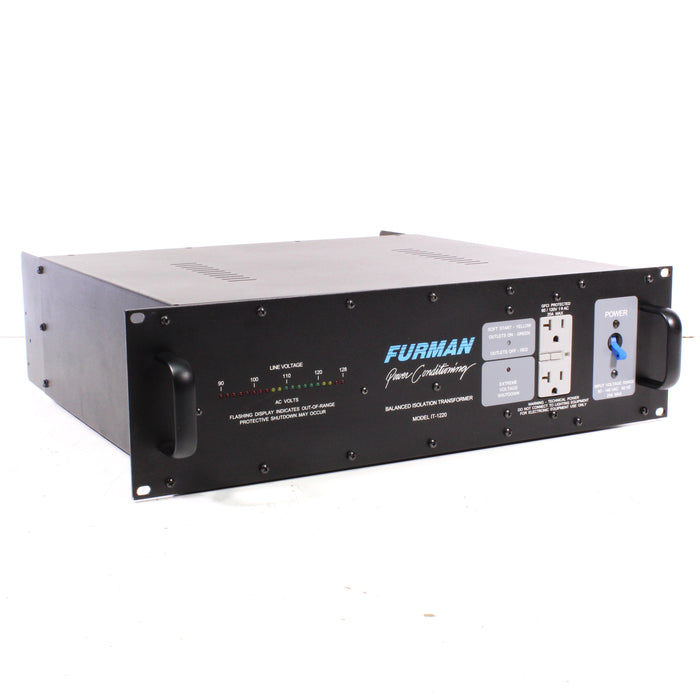

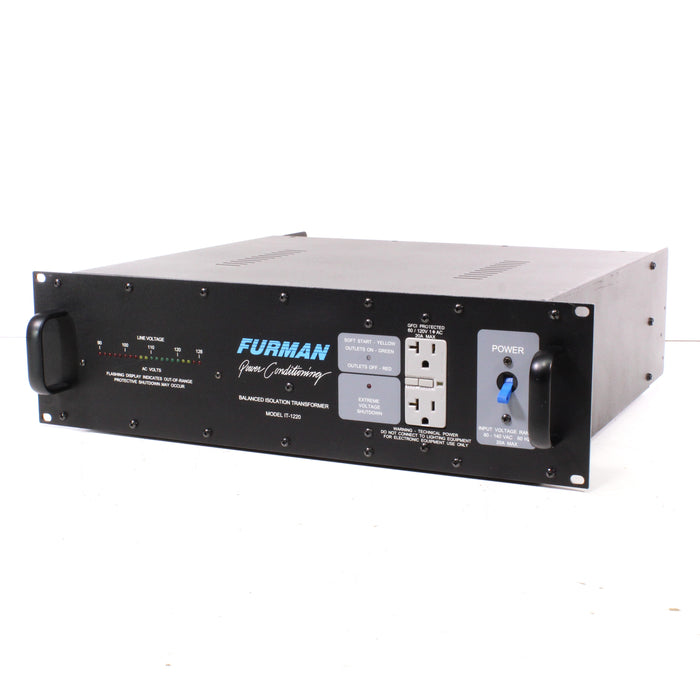

Furman IT-1220 Balanced Isolation Transformer Power Conditioner Rack Mount

With the flick of a switch (literally!), the Furman IT-1220 will supply you with 20 amps of balanced AC power. Perfect for a recording studio, video or film production facility, broadcast station, outdoor music venue, and more, this power condition is made to drastically reduce the hum and buzz you would typically get from the noise floor. Since it improves the dynamic range and sonic clarity, you'll get better sound than you ever thought possible.

Housed in a 3-unit rack chassis, the front panel provides two balanced outputs and the back panel provides an incredible 12 more. The IT-1220 offers that clean, safe power you need when operating multiple systems. It even has some awesome features like a self-check AC voltmeter, an Extreme Voltage Shutdown circuit, and a unique "Soft Start" circuit to prevent large inrush surge spikes that would otherwise occur in such a large transformer when it's turned on and off. Complete with a sleek black front panel, this heavy (66 lbs!) beast of a power conditioner is just what you need to protect against unwanted noise and surges.

CONDITION

SPENCERTIFIED- Fully certified by Spencer

Refurbished and SPENCERTIFIED

Every function has been confirmed 100% working. We have cleaned it inside and out and replaced any worn parts. A recap was performed if necessary. All pots, knobs, connectors and boards have been cleaned with CRC cleaner.

Cosmetic Condition: Very Good.

Functional Condition: Works Like New.

WHAT'S IN THE BOX?

• Furman IT-1220 Balanced Isolation Transformer Power Conditioner

Furman IT-1220 Specifications

Electrical:

• Output Current: 20 amps (2400 watts at 120V AC, 60 Hz)

• Voltage Ranges:

  • Normal Operation: 90–130V

  • Marginal (Flashing Alert): 80–90V or 130–140V

  • Extreme (Shutdown): Below 80V or above 140V

• Transformer Type: Toroidal isolation transformer with center-tapped secondary

• Turns Ratio: 1:1

• Isolation (Input to Output):

  • Breakdown Voltage: ≥1500V

  • Leakage Current: ≤40 mA

  • Capacitance: ≤300 pF

Surge Protection:

• Spike Clamping Voltage: 400V peak (L-N, N-G, L-G)

• Maximum Surge Current: 6500 amps (8x20 µs pulse)

• Maximum Spike Energy: 80 joules per mode; 240 joules total

• Spike Response Time: 1 nanosecond

Noise Attenuation:

• Differential Mode:

  40 dB

• Transverse Mode:

  60 dB

• Common Mode:

  80 dB (1–200 MHz)

Features:

• Soft Start Circuit: Prevents turn-on transients and high inrush currents

• Extreme Voltage Shutdown (EVS): Protects against dangerously high or low input voltages

• Microprocessor-Controlled AC Voltmeter: Monitors line voltage; flashes alerts for marginal and extreme conditions

• Power Conditioning: Includes spike suppression, RFI filtering, and gas discharge tube for spike dissipation

• Ground Fault Circuit Interrupter (GFCI) Protection: Ensures safety for connected equipment

• UL/CUL Listed: Certified for safety and reliability

Mechanical:

• Rack Mount: 3U (5.25" high)

• Dimensions: 5.25" (H) x 19" (W) x 17" (D)

• Weight: Approximately 65 lbs (30 kg)

• Construction: Steel chassis with powder-coated finish; glass epoxy printed circuit boards

Outlets:

• Rear Panel: 12 balanced outlets, spaced to accommodate "wall wart" adapters

• Front Panel: 2 balanced outlets

Power Consumption:

• Display and Control Circuits: Approximately 8.5 watts (independent of actual load)

MANUFACTURER

• Made in USA
