JVC JR-S201 DC Integrated AM/FM Stereo Receiver 35WPC 5-Band S.E.A. EQ

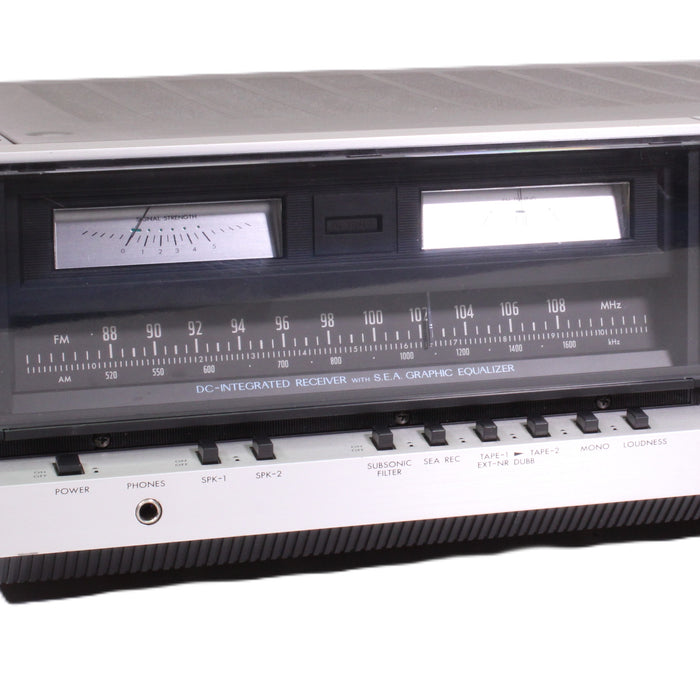

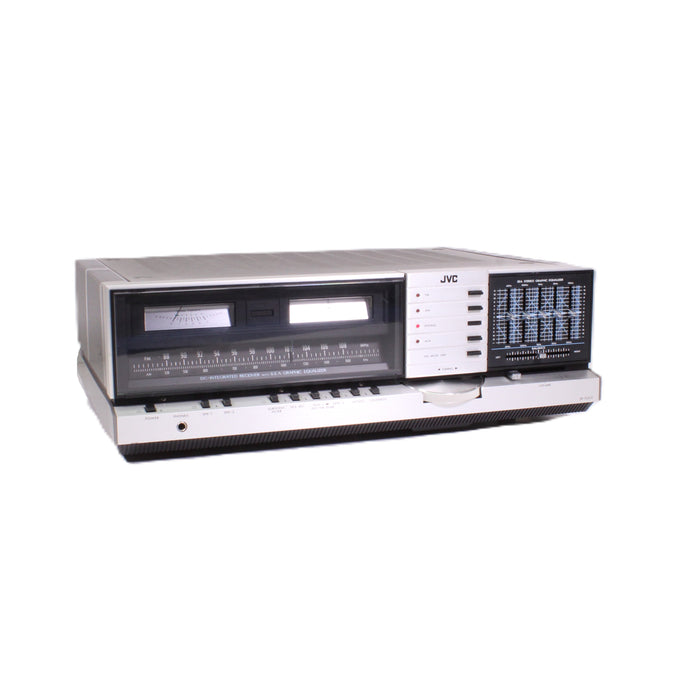

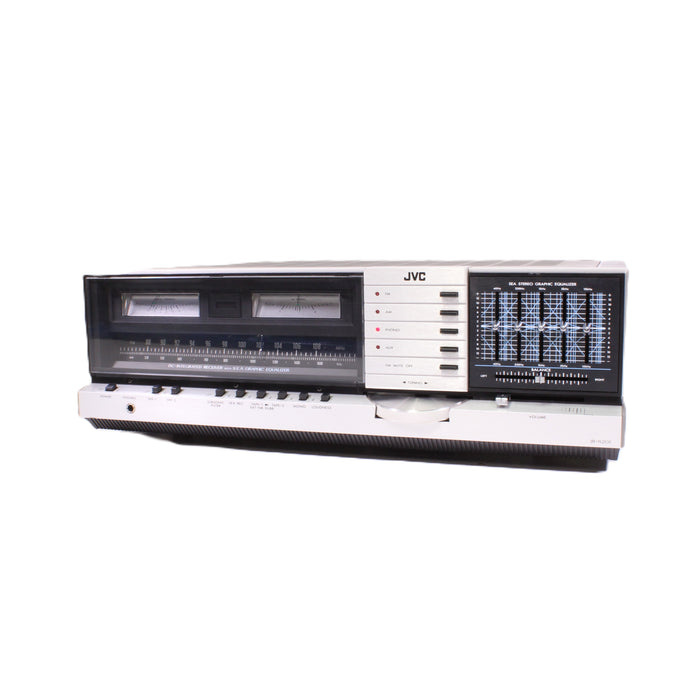

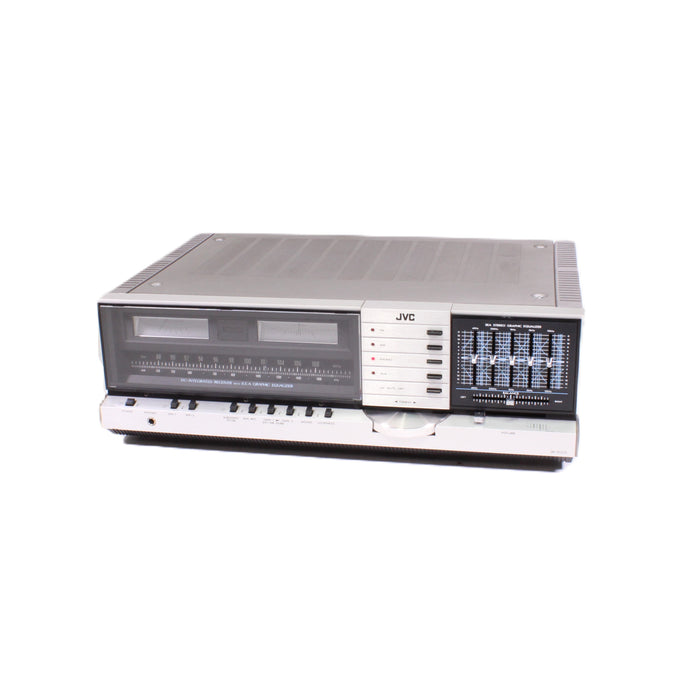

Bring home late-1970s JVC style with the JR-S201, a distinctive silver-face stereo receiver featuring DC amplifier circuitry and JVC’s built-in five-band S.E.A. graphic equalizer. Rated at 35 watts per channel into 8 ohms, it offers MM phono, AUX, dual tape connections, A/B speaker outputs, twin tuning meters, and extensive sound-shaping controls. JVC introduced the JR-S201 as part of its 1978 DC integrated receiver lineup.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
100% tested and functional. Controls, switches, and S.E.A. equalizer sliders cleaned with WD-40 Specialist Electrical Contact Cleaner. Internal boards and connections inspected, amplifier outputs tested, DC offset checked, AM/FM tuner reception verified, and all major audio inputs and speaker outputs tested.
Cosmetic Condition: 9/10
Functional Condition: 10/10
WHAT'S IN THE BOX?
- JVC JR-S201 DC Integrated AM/FM Stereo Receiver 35WPC 5-Band S.E.A. EQ (AS-IS??)
- FM Antenna
- Speaker Wire
Other information about the JVC JR-S201
- Tuning range: FM, MW
- Power output: 35 watts per channel into 8Ω (stereo)
- Frequency response: 5Hz to 40kHz
- Total harmonic distortion: 0.01%
- Damping factor: 70
- Input sensitivity: 2.5mV (MM), 150mV (line)
- Signal-to-noise ratio: 75dB (MM), 95dB (line)
- Output: 150 mV (line), 30 mV (DIN)
- Speaker load impedance: 4Ω to 16Ω
DIMENSIONS
- Size: 19.7" W × 6.5" H × 14.9" D
- Weight: 23.4 lbs

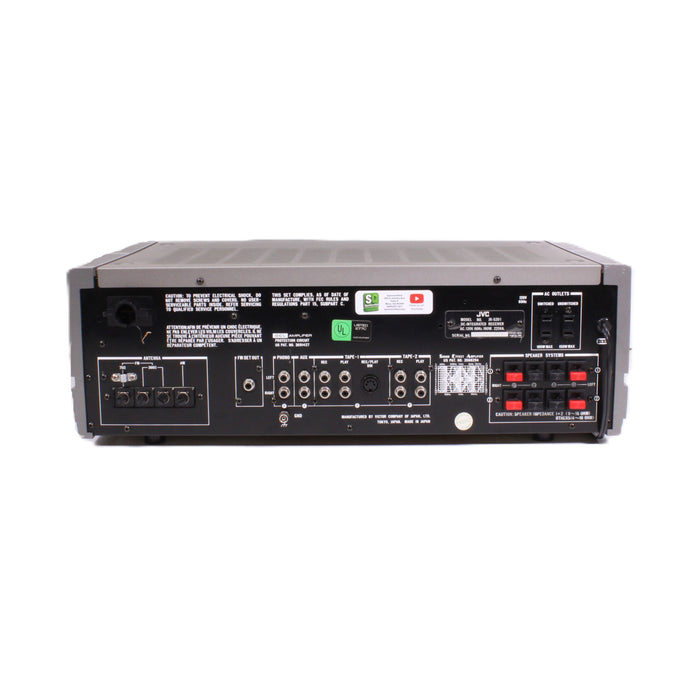

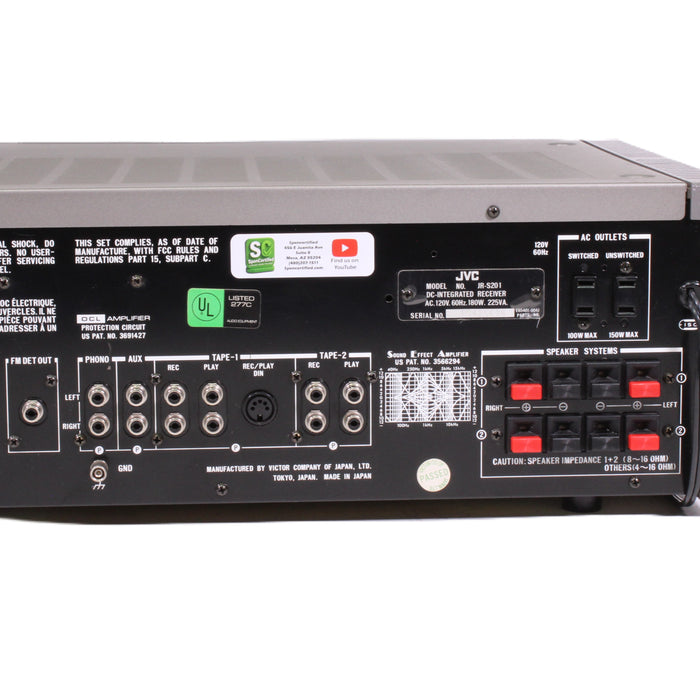

INPUTS

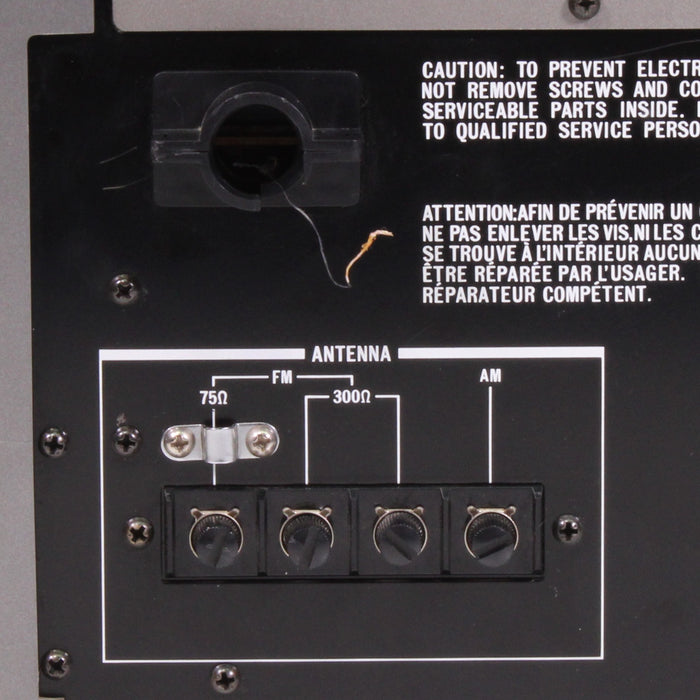

- FM Antenna x1 (back)
- AM Antenna x1 (back)
- Phono L/R x2 (back)
- GND x1 (back)
- Aux L/R x1 (back)
- Tape L/R x2 (back)
- DIN x1 (back)
OUTPUTS
- Headphones Jack x1 (front)
- AC Outlets x2 (back)
- Speakers R/L x2 (back)
- FM DET Out x1 (back)
- Tape L/R x2 (back)
- DIN x1 (back)
MANUFACTURER
- Made in Japan
