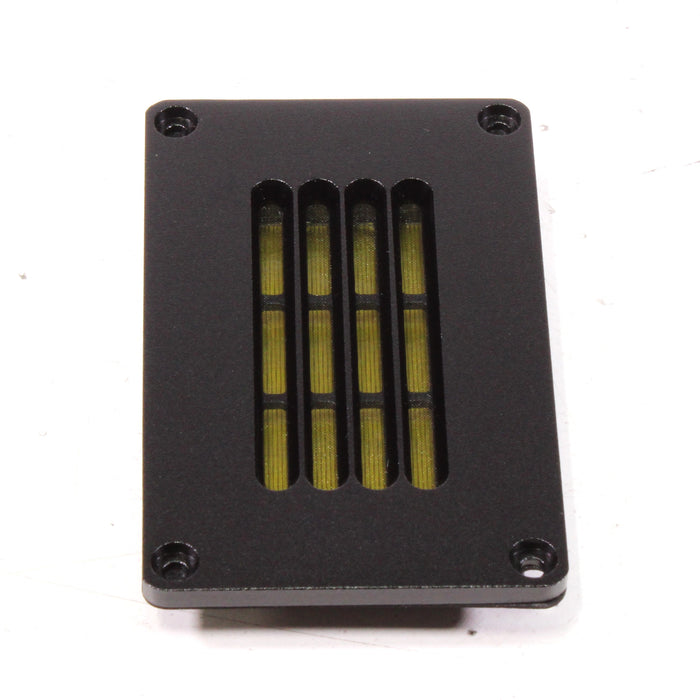

Madisound PLA-BODY 2.5" Planar Tweeter Speaker Driver Part 6 Ohms
The Madisound PLA-BODY is the perfect replacement driver for your home audio speaker! It's a 2.5-inch planar tweeter. It's an excellent speaker for DIY designs or as a replacement driver for your broken stereo speaker.
OTHER PART NUMBERS ASSOCIATED WITH IT INCLUDE...
- PLABODY
CONDITION
Open Box.
Upgrade your audio system with this brand-new, never-used speaker driver, still in its original packaging. This high-performance driver is designed to deliver precise, clear sound with outstanding reliability—perfect for speaker repairs, custom audio builds, or audiophile-grade replacements.
📦 Ships securely with all original materials and packaging.
WHAT'S IN THE BOX?
- Madisound PLA-BODY Planar Tweeter Speaker Driver Part 6 Ohms
DIMENSIONS
- Overall Dimension: 2.85" x 4.5"
- Ribbon: 1.13" x 2.63"
- Mounting Depth: 0.7"
- Vertical Hole to Hole: 2.25"
- Horizontal Hole to Hole: 3.9"
- No. of Mounting Holes: 4
Product Overview
-
Brand: Madisound
-
Model: PLA-BODY
-
Type: Planar Magnetic Tweeter
-
Size: 2.5″ diaphragm
-
Impedance: 6 Ohms
-
Power Handling: 20 W RMS / 40 W max
-
Frequency Response: 2,000 Hz – 30,000 Hz
-
Sensitivity: ≈ 89 dB (1 W/1 m)
-
Diaphragm Material: Ultra-thin Kapton film with aluminum traces
-
Magnet Type: Neodymium
-
Crossover Recommendation: 2.5 kHz or higher (12 dB/octave or steeper)
-
Mounting Plate: Solid aluminum body with countersunk screws
-
Applications: High-end bookshelf or monitor builds, ribbon/planar hybrid systems, audiophile tweeter upgrades.
MANUFACTURER
- Made in China
