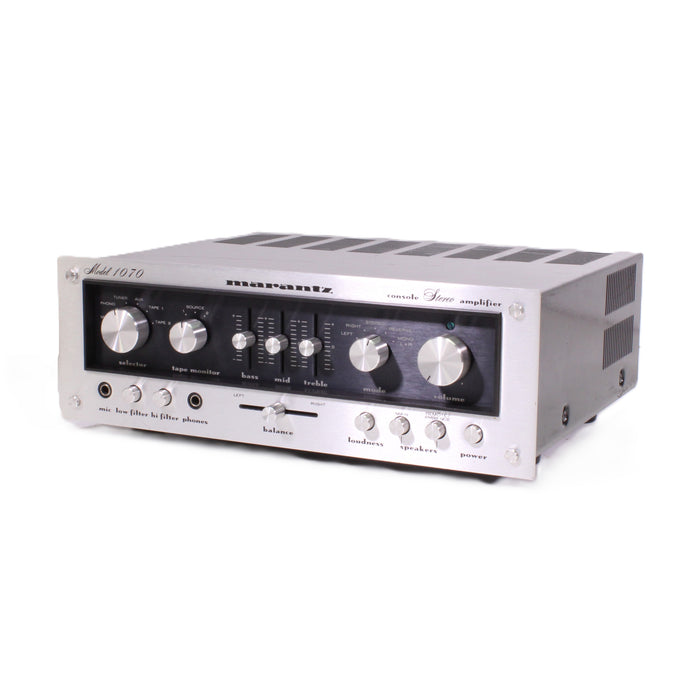

Marantz Model 1070 Vintage Integrated Stereo Amplifier | 35W/Channel | Phono
Enjoy the classic look and flexible analog connections of the Marantz Model 1070. This vintage integrated amplifier delivers 35 watts per channel into 8-ohm speakers and combines a dedicated moving-magnet phono stage with inputs for a tuner, auxiliary source, microphone, and two tape decks.
Tone and listening controls include separate bass, midrange, and treble adjustment, a loudness control, selectable high and low filters, mono/stereo mode, and balance. The preamp and power amp sections can also be separated using the rear-panel Pre Out and Main In connections.

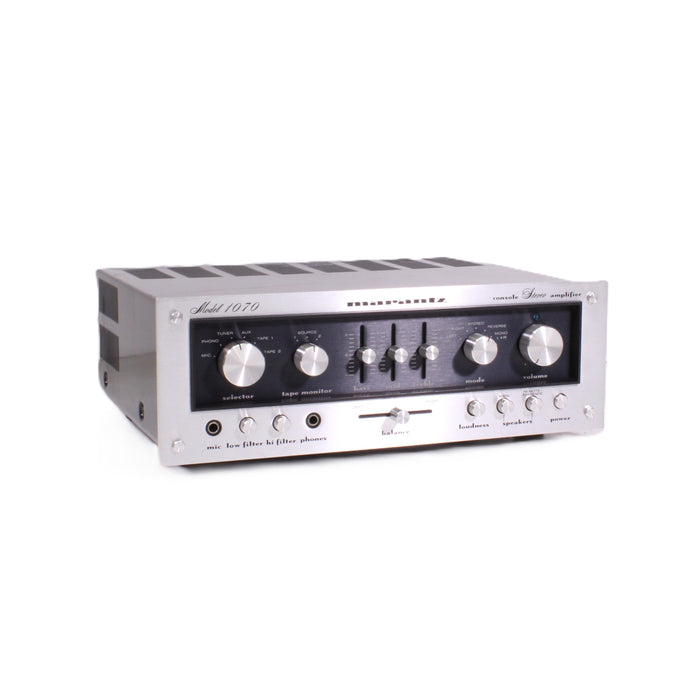

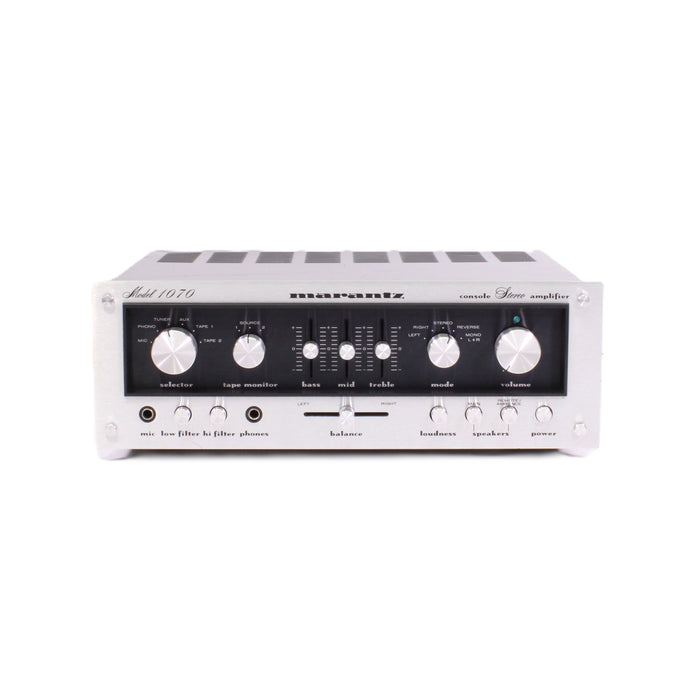

This example is SpenCertified, in excellent cosmetic condition, and has been tested for reliable operation. Its silver-face styling and practical features make it a handsome, versatile centerpiece for a vintage stereo setup.
Who this amplifier is ideal for
The Model 1070 is well suited to someone building a classic two-channel system who wants an integrated amplifier with a built-in phono stage and enough input flexibility for several analog components. It’s a natural match for a turntable, tuner, CD player or other line-level source, and tape decks. The Pre Out/Main In connections also allow the preamp and power amp sections to be used separately.
Condition and testing
- Cosmetic condition: 9/10
- Functional condition: 10/10
- Controls and switches cleaned
- Internal boards and connections inspected
- Amplifier outputs tested and DC offset checked
- Major audio functions verified
Features and specifications
- Stereo integrated amplifier
- 35 watts per channel into 8 ohms
- Frequency response: 20 Hz–20 kHz, ±1 dB
- Total harmonic distortion: less than 0.3% at rated output
- Damping factor: greater than 20 into 8 ohms
- Moving-magnet phono input sensitivity: 1.8 mV
- Dedicated microphone input
- Bass, midrange, and treble controls
- Loudness control and balance adjustment
- High and low filters
- Mono/stereo mode selection
- Separable preamp and power amp sections

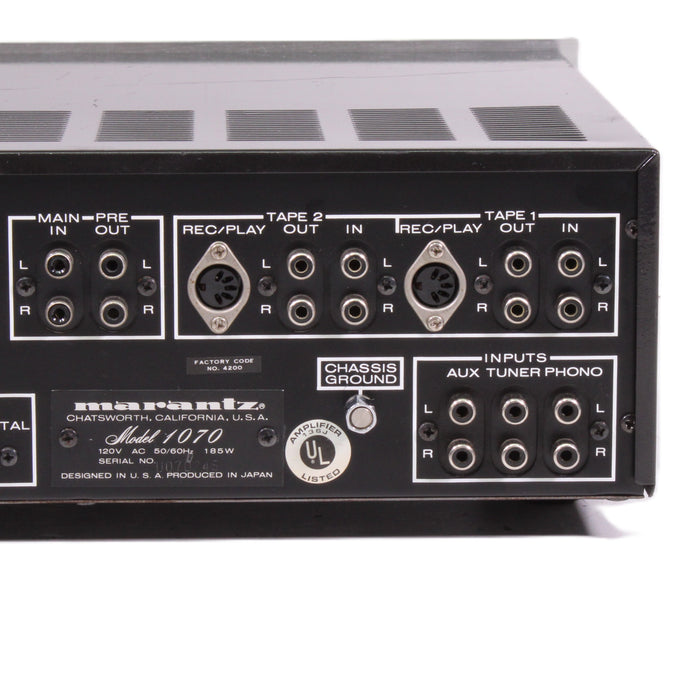

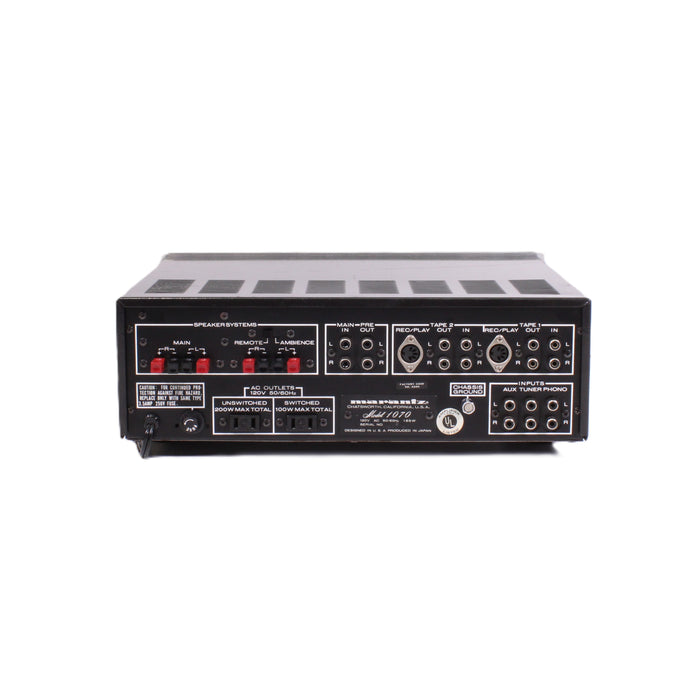

Inputs and connections
- Phono, with ground terminal
- Tuner
- AUX

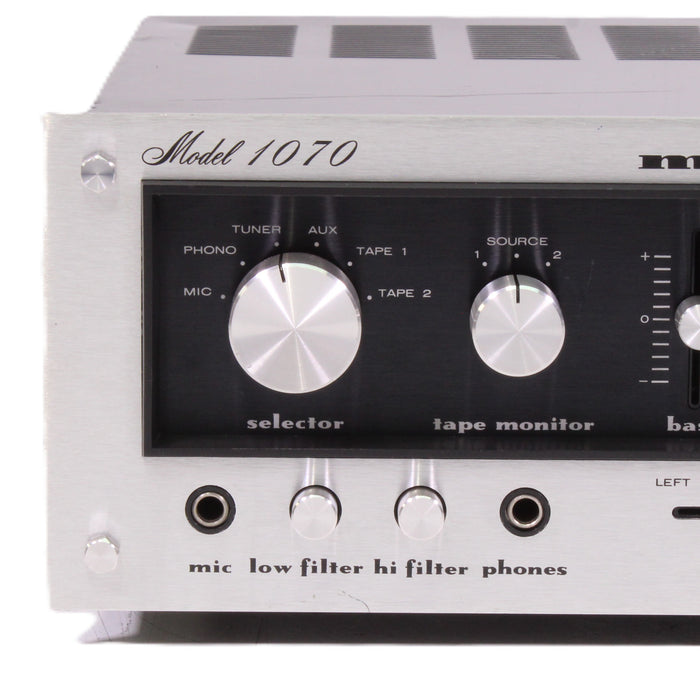

- Microphone input on the front panel
- Two tape input/recording loops

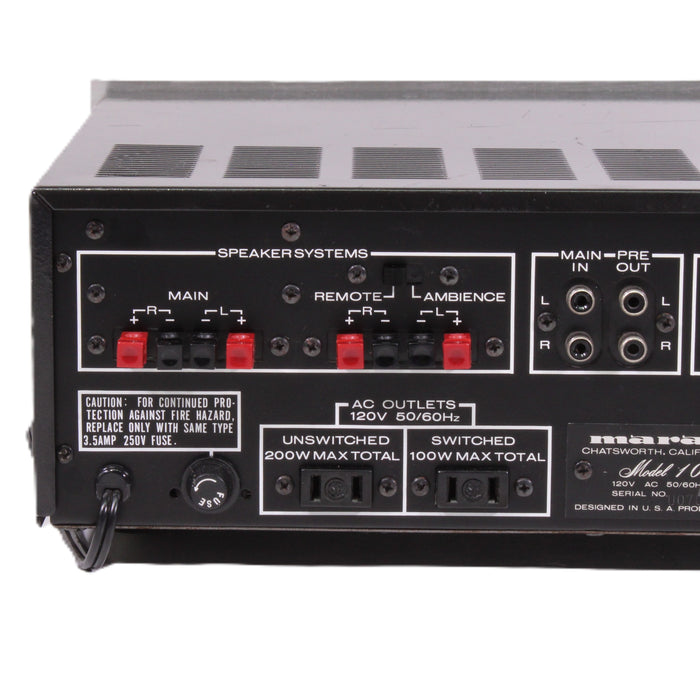

- Pre Out and Main In
- Front-panel headphone jack
- Speaker outputs for two sets of speakers
- Two rear AC outlets
Included
- Marantz Model 1070 amplifier
- Speaker wire
Dimensions and weight
- Approx. 14⅛″ W × 4¾″ H × 11″ D
- 18 lb
Made in Japan. The 1070 was produced from approximately 1974 to 1977. Specifications and dimensions are based on the model’s owner and service documentation.
