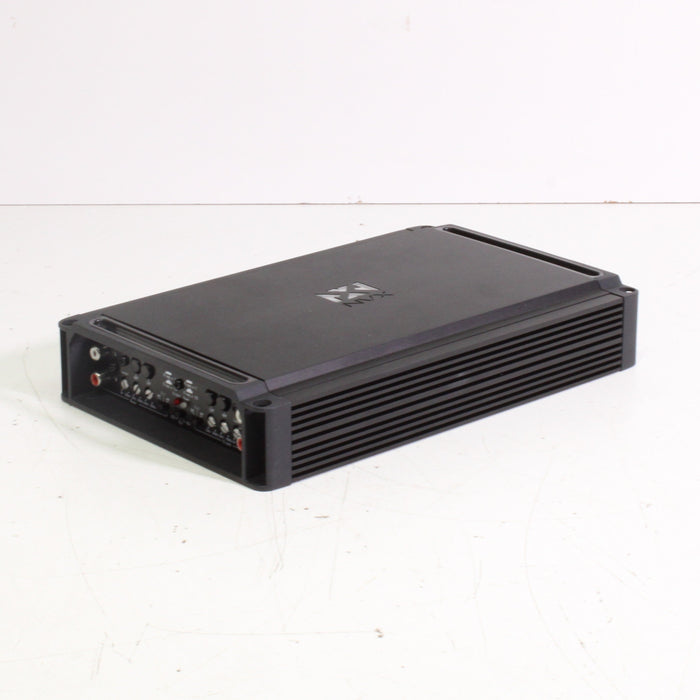

NVX JAD800.4 800W RMS 4/3/2 Channel Full Range Class D Car Amplifier (2018)
Sold out
Original price
$399.99
Original price
$399.99
-
Original price
$399.99
Original price
$399.99
Current price
$299.99
$299.99
-
$299.99
Current price
$299.99
If you're searching for a powerful amp for your car audio system, the NVX JAD800.4 is a great choice! It's perfect if you're wanting a small footprint, high output amplifier. With features such as variable high and low pass filters, bridgeable channels, and gain level control, it's an ideal amp. The JAD800.4 4-channel is rated at 800 watts RMS (1600 watts peak) and is ideal for running a couple of pairs of speakers or even a couple subwoofers. The broad frequency response of 20 to 20,000 hertz will ensure every note is properly reproduced. Get the sound you deserve with NVX today!
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Every function has been confirmed 100% working. All knobs and parts have been cleaned.
Cosmetic Condition: Like New.
Functional Condition: Like New.

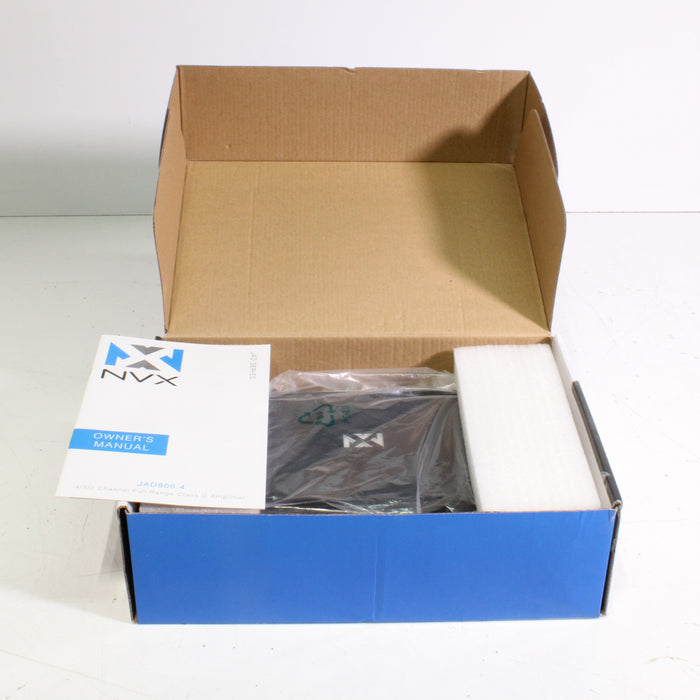

WHAT'S IN THE BOX?
- NVX JAD800.4 800W RMS 4/3/2 Channel Full Range Class D Car Amplifier
- Original Owner's Manual

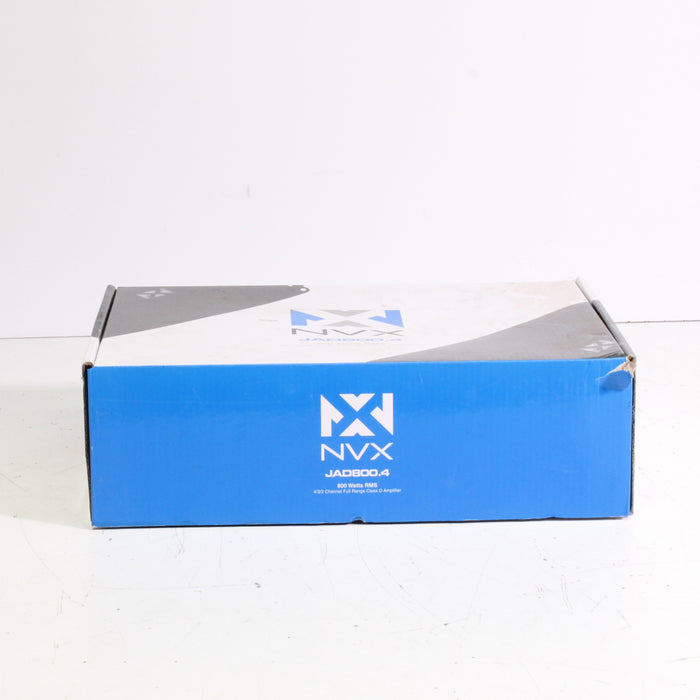

- Original Box
Other information about the NVX JAD8004
- Class D 4-Channel Amplifier
- CEA-2006 Compliant
- Peak Power Rating: 1600
- RMS Power Rating:
- 4 ohm: 125 watts x 4 channels
- 2 ohm: 200 watts x 4 channels
- Bridged, 4 ohm: 400 x 2 channels
- Sonic Electronix Certified Power Rating:
- 4 ohm: 175 watts x 4 channels
- 2 ohm: 297 watts x 4 channels
- Non-regulated efficient S.M.P.S power supply design
- Pulse Width Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- High speed rectifying diodes
- Soft start turn-on
- 4, 3, or 2 channel operation
- 3-way protection circuitry (thermal, overload, and speaker short protection)

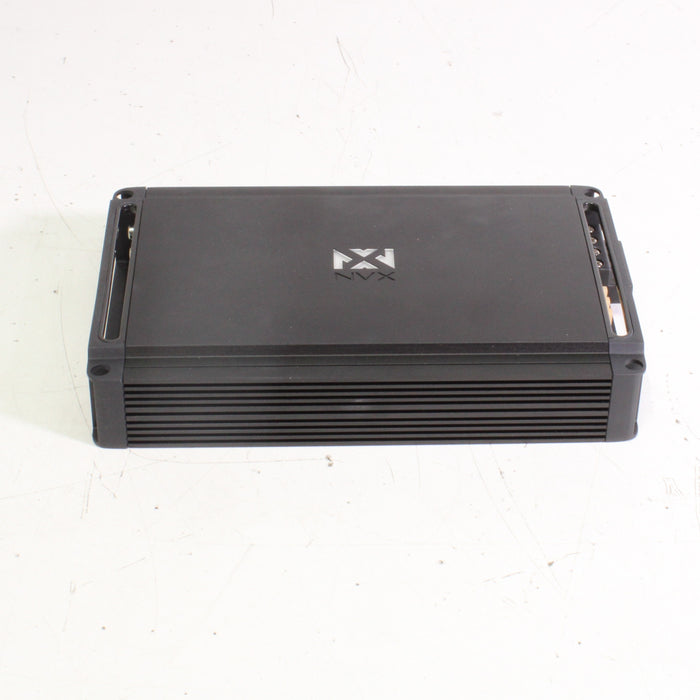

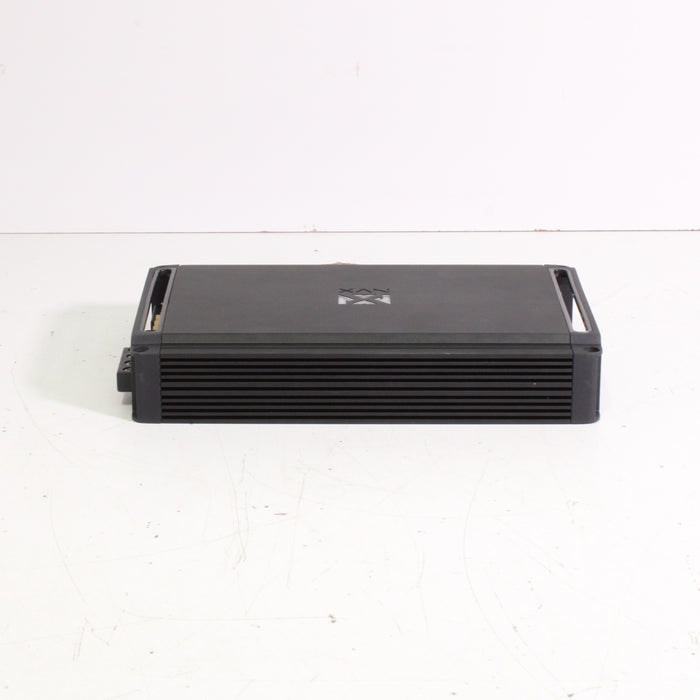

- Heavy duty aluminum alloy heat-sink
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals
- Input sensitivity: 200mV - 6V
- Frequency Response: 20 - 20,000 Hz
- Total Harmonic Distortion (THD): <1.00%
- Signal to Noise Ration: 106dB

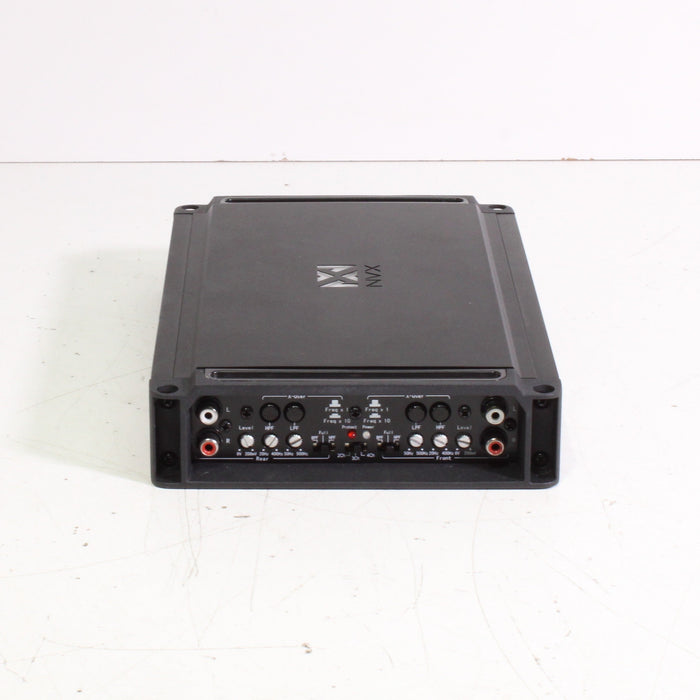

- Selectable crossover modes: BPF / FULL / LPF
- x1 & x10 Frequency multiplier, Front & Rear
- Variable high-pass filter: 20 - 400 Hz or 200 - 4,000 Hz, 24 dB/octave
- Variable low-pass filter: 50 - 500 Hz or 500 - 5,000, 24 dB/octave

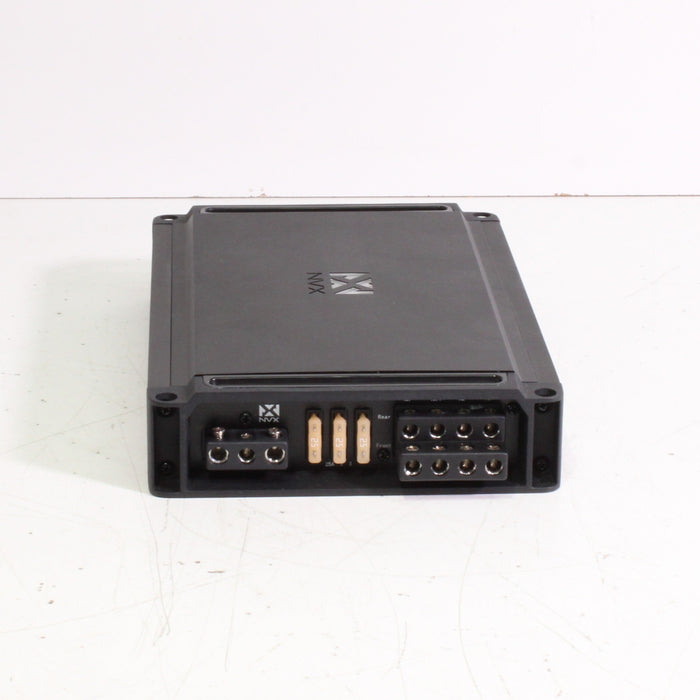

- Fuse Rating: 25A x 3

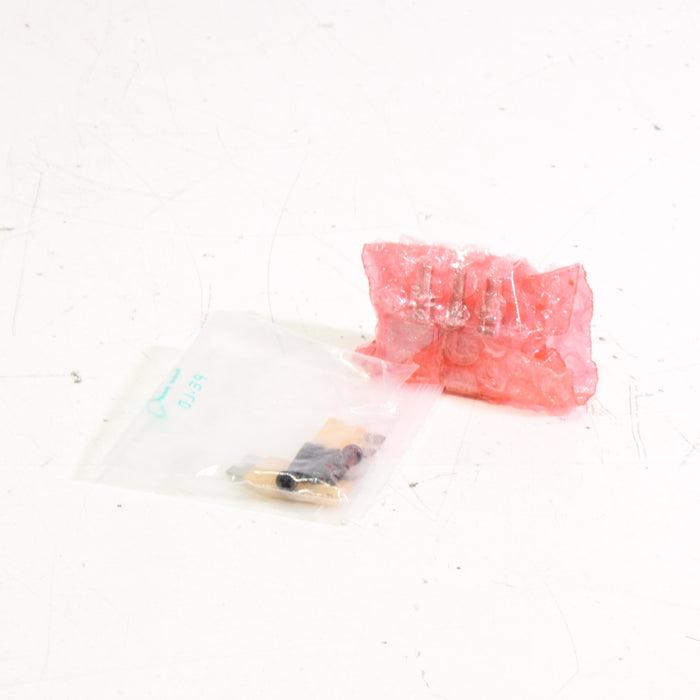

- Gauge adapter included, allowing amplifier to accept 8, 4, 2, and 1/0
- 4 gauge power and ground wiring is recommended for installation
DIMENSIONS
- 10.4" x 6.7" x 1.8" (Length x Width x Height)
MANUFACTURER
- MFD. May, 2018
- Made in China
