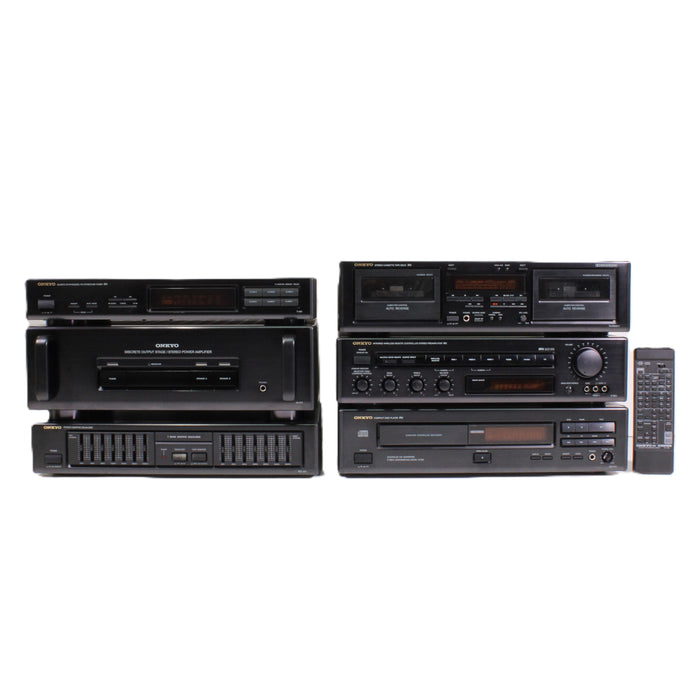

Onkyo 6-Piece Stereo System M-501, P-301, EQ-101, T-401, TA-RW311, DX-710 + Remote
Build a complete matching Onkyo separates system with this six-piece vintage stereo bundle. The system combines the powerful M-501 stereo amplifier with the P-301 preamplifier, EQ-101 graphic equalizer, T-401 AM/FM tuner, TA-RW311 dual cassette deck, and DX-710 CD player, plus the included Onkyo RI remote control. All six components have also been upgraded with detachable AC power connections for easier setup, storage, and cable management. Fully tested, refurbished, and SPENCERTIFIED for reliable everyday audio use.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
100% tested and functional. Cleaned controls, switches, and equalizer sliders with WD-40 Specialist Electrical Contact Cleaner. Internal boards and connections inspected throughout the system. Amplifier outputs and DC offset checked, preamplifier inputs verified, tuner reception tested, cassette heads and transports serviced, CD lens and tray mechanism serviced, equalizer channels tested, and remote-control operation verified. All six components have been upgraded with detachable AC power connections, replacing the original fixed-cord configuration for easier servicing, transport, storage, and cable management.
Cosmetic Condition: 8/10
Functional Condition: 10/10
WHAT'S IN THE BOX?
- Onkyo P-301 Preamplifier
- Onkyo EQ-101 Graphic Equalizer
- Onkyo T-401 AM/FM Tuner
- Onkyo TA-RW311 Dual Cassette Deck
- Onkyo DX-710 CD Player
- Onkyo M-501 Stereo Amplifier
- Factory Remote (RC-199M)
- Batteries
- Power cords
- Speaker Wire
- Analog Audio Cables
Other information about the Onkyo 6-Piece Bundle
-

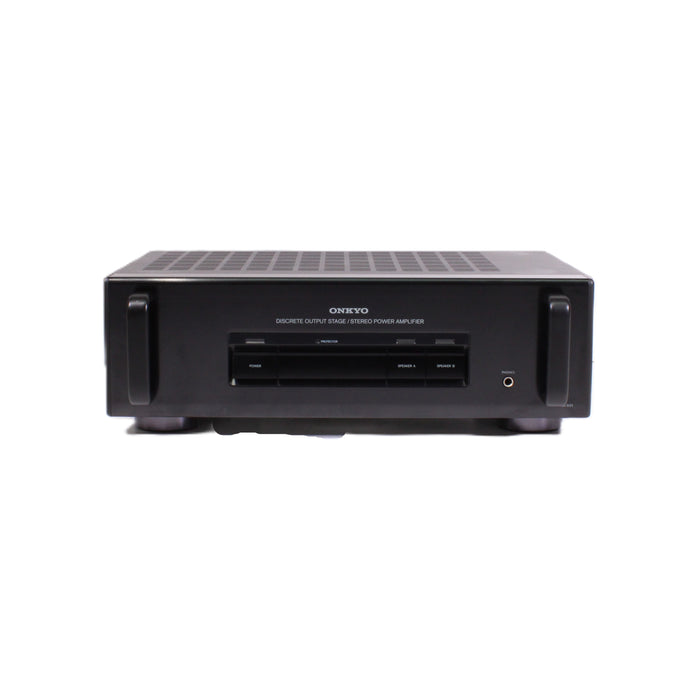

Onkyo M-501 Stereo Amplifier
- Power output: 150 watts per channel into 8Ω (stereo)
- Frequency response: 5Hz to 100kHz
- Total harmonic distortion: 0.09%
- Damping factor: 60
- Input sensitivity: 1V
- Signal-to-noise ratio: 100dB
-

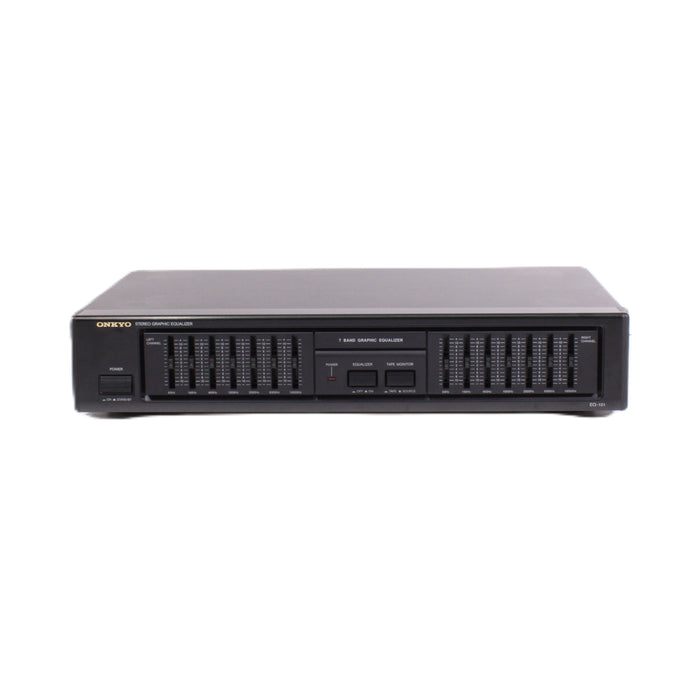

Onkyo EQ-101 Graphic Equalizer
- Input Sensitivity: 150mV (5V max)
- Output Level: 150mV
- Gain: ± 0dB
- Frequency response: 10Hz to 35kHz
- Signal-to-Noise Ratio: 100dB
- Total harmonic distortion: 0.01%
- Control Range: ±12 dB
- Frequency Bands: 63, 160, 400, 1K, 2.5K, 6.3K, 16KHz
- 7-band stereo graphic equalizer
- Equalizer tape-monitor loop
-

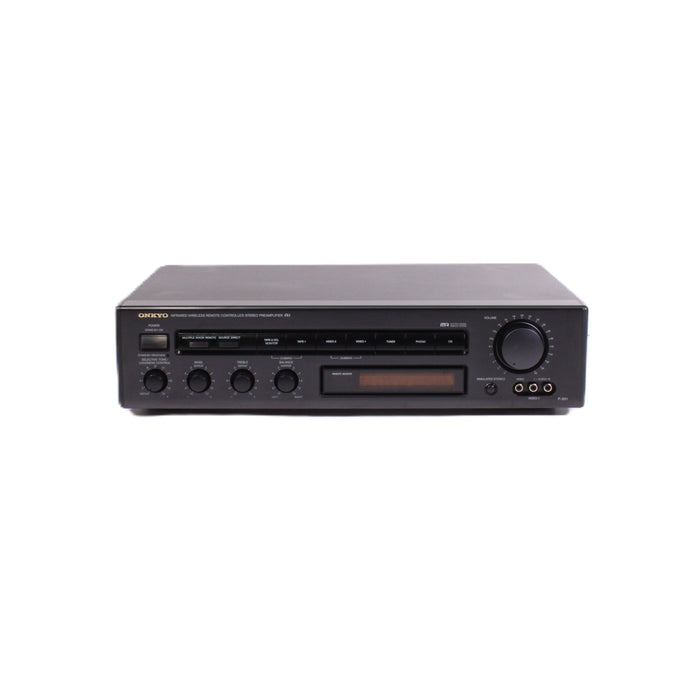

Onkyo P-301 Preamplifier
- Frequency response: 15Hz to 30kHz
- Total harmonic distortion: 0.009%
- Input sensitivity: 2.5mV (MM), 150mV (line)
- Signal-to-noise ratio: 83dB (MM), 100dB (line)
- Output: 1V (Pre-out), 5V (Pre-out Max)
-

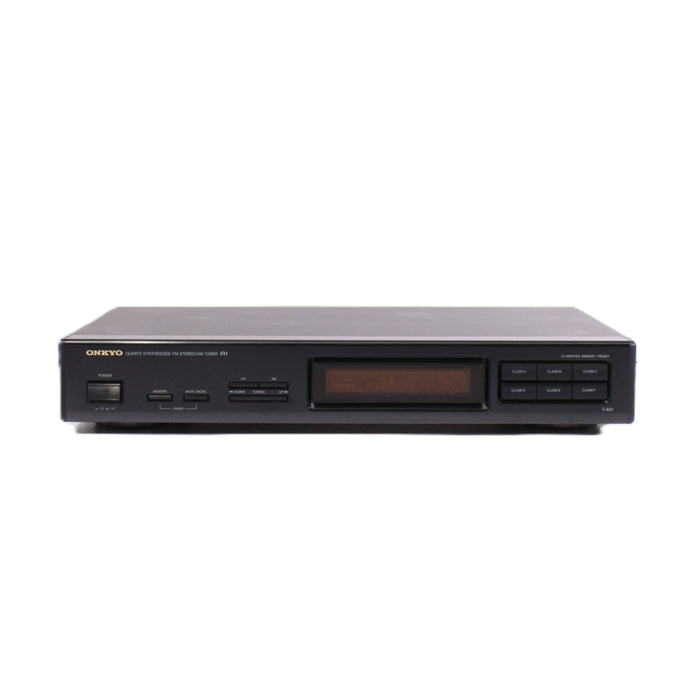

Onkyo T-401 AM/FM Tuner
- Type: Mono/Stereo Tuner
- Tuning Bands: FM, MW
- Tuning Scale: Digital
- FM Tuning Range: 87.9 to 107.9 MHz
- MW Tuning Range: 530 to 1710 kHz
- Sensitivity: 1.0uV (FM), 25uV (MW)
- Signal-to-Noise Ratio: 66dB (FM), 40dB (MW)
- Distortion: 0.2% (FM), 0.8% (MW)
- Selectivity: 50dB (FM)
- Frequency response: 30Hz to 15kHz (FM)
- Output: 500mV (FM), 150mV (MW)
- Quartz-synthesized AM/FM tuner
- 40-station tuner preset memory
-

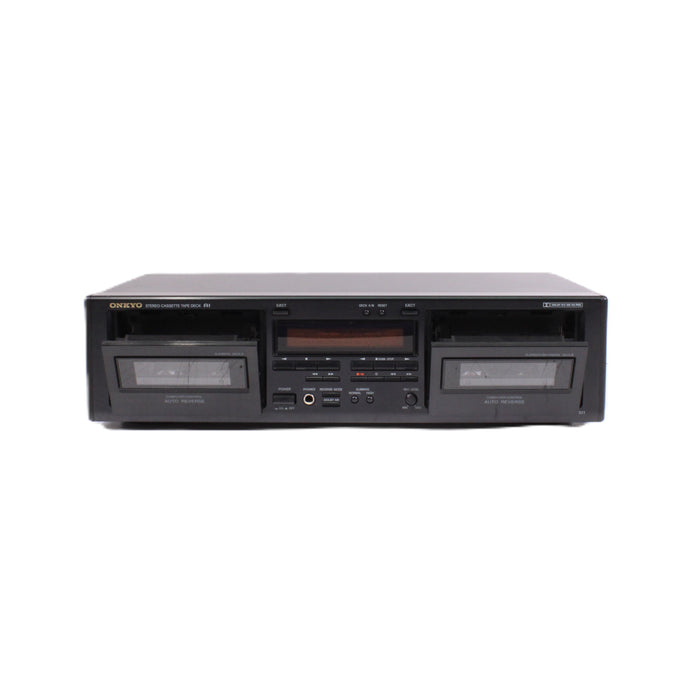

Onkyo TA-RW311 Dual Cassette Deck
- Type: auto reverse, double compact cassette deck
- Track System: 4-track, 2-channel stereo
- Tape Speed: 4.8 cm/s
- Heads: 1 x record/playback, 1 x playback, 1 x erase
- Motor: 2 x DC servo, 2 x DC
- Tape Type: Type I, CrO2, Metal
- Noise Reduction: B, C
- Frequency Response: 20Hz to 17kHz (Metal tape)
- Signal-to-Noise Ratio: 78dB (Dolby C)
- Wow and Flutter: 0.07%
- Input: 80mV (line)
- Output: 0.5V (line)
- Dual auto-reverse cassette transports
- Cassette recording and tape-to-tape dubbing
- Normal and high-speed dubbing
- Dolby B/C noise reduction
- Dolby HX Pro
-
Onkyo DX-710 Equalizer
- Disc format: CD
- Digital converter: TC9237BN, 1-bit Accupulse
- CD Mechanism: KSM-2101AAM
- Frequency response: 5Hz to 20kHz
- Dynamic range: 96dB
- Signal-to-noise ratio: 100dB
- Channel separation: 90dB
- Total harmonic distortion: 0.004%
- Line output: 2V
- Single-disc CD playback
- 8-times oversampling digital filter
- Programmable CD track memory
- Shuffle and repeat playback
- Ideal as a complete vintage two-channel stereo setup
DIMENSIONS
- Onkyo DX-710 Size: 17.9" W × 4.3" H × 12" D
- Onkyo DX-710 Weight: 10.8 Ib
- ONKYO TA-RW311 Size: 17.75"x 4.5"x 12.75" (WxHxD)
- ONKYO TA-RW311 Weight: 13 lbs
- Onkyo P-301 Size: 17-15/16" W × 4-3/8" H × 12-1/4" D
- Onkyo P-301 Weight: 9 Ibs
- Onkyo T-401 Size: 17.9" W × 3" H × 12" D
- Onkyo T-401 Weight: 7 lbs
- Onkyo M-501 Size: 17.13" x 13.9" x 5" (W x H x D)
- Onkyo M-501 Weight: 23 Ibs
- Onkyo EQ-101 Size: 17.9" W × 3.5" H × 11.7" D
- Onkyo EQ-101 Weight: 11 Ibs
INPUTS
- Onkyo DX-710 CD Player
- RI x1 (back)
- Onkyo TA-RW311 Cassette Deck
- Line x1 L/R (back)
- RI x1 (back)
- Onkyo T-401 Tuner
- FM Antenna x1 (back)
- AM Antenna x1 (back)
- RI Remote Control x1 (back)
- Onkyo P-301 Stereo Pre-Amplifier
- Composite x1 (front)
- Phono Remote Control x1 (back)
- RI Remote Control x2 (back)
- Composite x1 (back)
- GND x1 (back)
- Phono L/R x1 (back)
- CD L/R x1 (back)
- Tuner L/R x1 (back)
- Tape L/R x2 (back)
- Onkyo M-501 Stereo Power Amplifier
- RI x1 (back)
- Analog Audio x1 L/R (back)
- Onkyo EQ-101 Equalizer
- Equalizer x1 L/R (back)
- Tape x1 L/R (back)
OUTPUTS
-

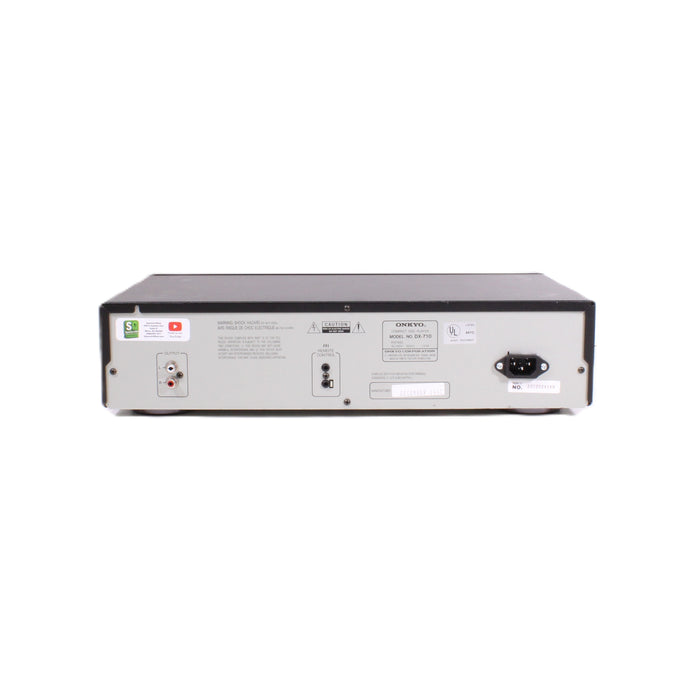

Onkyo DX-710 CD Player
- Headphone Jack x1 (front)
- RI x1 (back)
- Analog Audio x1 L/R (back)

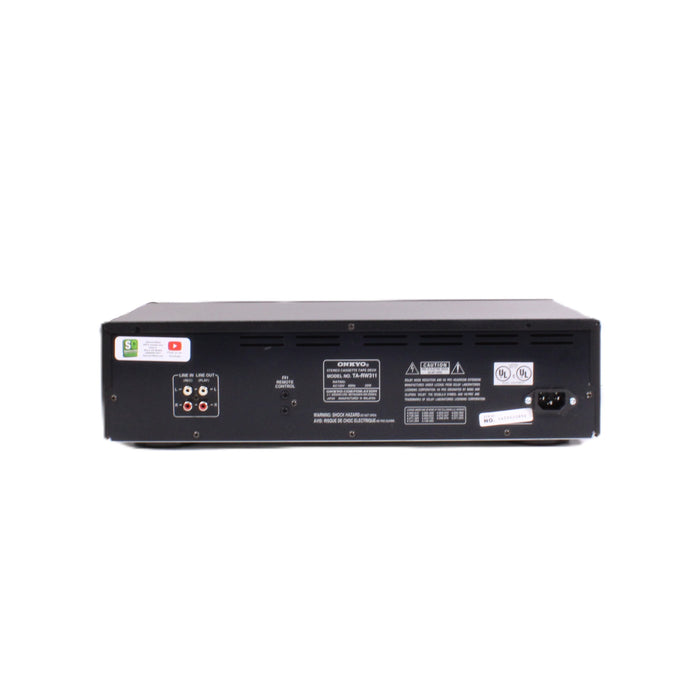

- Onkyo TA-RW311 Cassette Deck
- Headphone Jack x1 (front)
- Line x1 L/R (back)
- RI x1 (back)
-

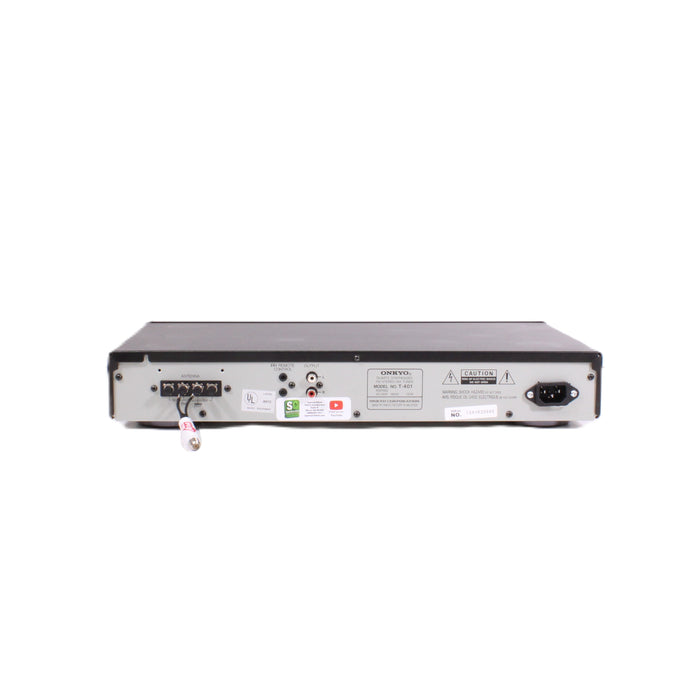

Onkyo T-401 Tuner
- Output L/R x1 (back)
- RI Remote Control x1 (back)
-

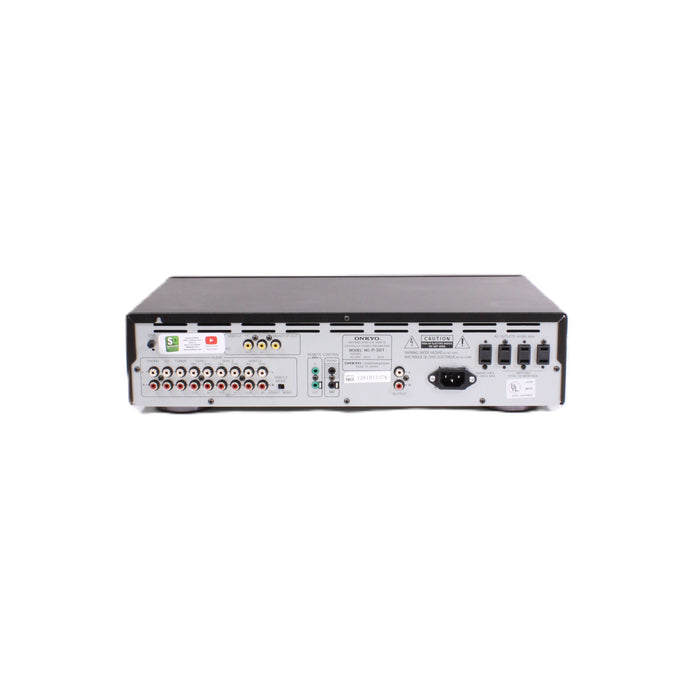

Onkyo P-301 Stereo Pre-Amplifier
- AC Outlets x4 (back)
- Analog Audio L/R x1 (back)
- RI x1 (back)
- Monitor x1 (back)
- Composite x1 (back)
- Tape L/R x2 (back)
-

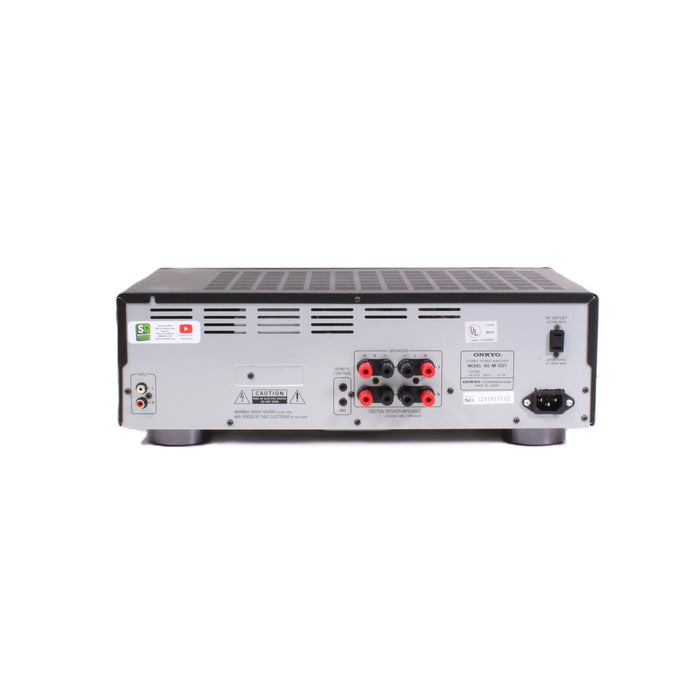

Onkyo M-501 Stereo Power Amplifier
- Headphone x1 (front)
- Speakers x2 L/R (back)
- RI x1 (back)
- AC x1 (back)
-

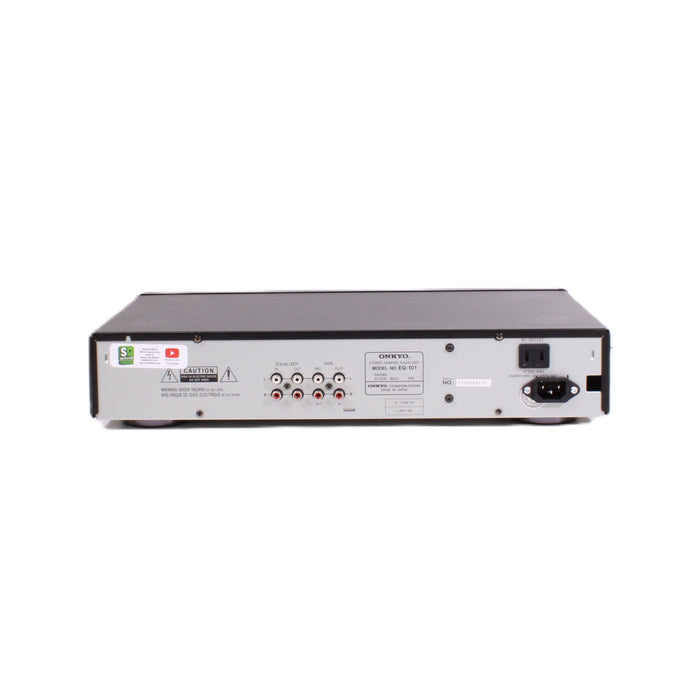

Onkyo EQ-101 Equalizer
- Equalizer x1 L/R (back)
- Tape x1 L/R (back)
MANUFACTURER
- Made in Malaysia & Japan
