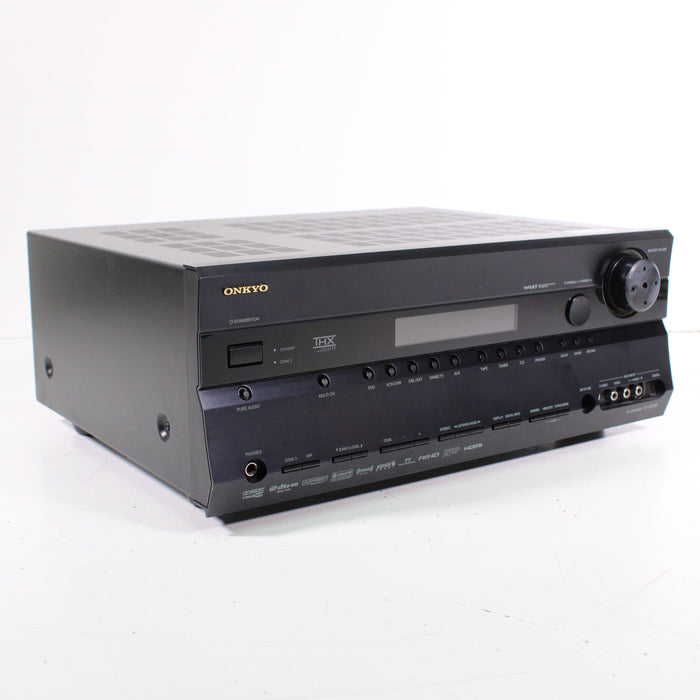

Onkyo TX-SR705 Audio Video AV Receiver with Phono (NO REMOTE)
The Onkyo TX-SR705 AV Receiver is the perfect solution for all your home entertainment needs! Featuring an impressive array of inputs and outputs, this system accommodates a variety of audio and video sources, from phono to VCR. Get ready to undergo an immersive audio-visual experience!
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
Every function has been confirmed 100% working. We have cleaned it inside and out and replaced any worn parts. A recap was performed if necessary. All pots, knobs, connectors and boards have been cleaned with CRC cleaner.
Cosmetic Condition: Very Good.
Functional Condition: Works Like New .
WHAT'S IN THE BOX?
- Onkyo TX-SR705 Audio Video AV Receiver with Phono (NO REMOTE)
- Audio/Video Cables
Other information about the Onkyo TX-SR705
- 100 watts x 7 into 8 ohms (20-20,000 Hz) at 0.08% THD
- 192kHz/24-bit DACs for all channels
- High-current amplifier design
- 40 AM/FM/XM/SIRIUS presets
- THX Select2 certification
- Dolby True HD, DTS-HD Master Audio, Dolby Digital Plus, DTS-HD High Resolution Audio, THX Surround EX, DTS Neo:6 decoding
- XM Satellite Radio Ready (requires XM subscription)
- Neural -THX Surround decoder for XM's HD Surround channels and gaming
- SIRIUS satellite radio capable (requires SIRIUS subscription)
- iPod integration (requires optional Onkyo DS-A2x iPod dock)
- Audyssey Laboratories' MultEQ XT 8-point auto setup & room calibration system
- Dual-room/dual-source audio (powered and line-level stereo audio output for 2nd room; using powered 2nd-room output allows 5.1 home theater in main room)
- RIHD (Remote Interactive over HDMI) control via HDMI with compatible components
- Back surround speaker channels re-assignable for bi-amping front left and right speakers
- Aluminum front panel
DIMENSIONS
- 17.15" x 15.15" x 6.88" (Length x Width x Height)
- Weight: 28.5 lbs

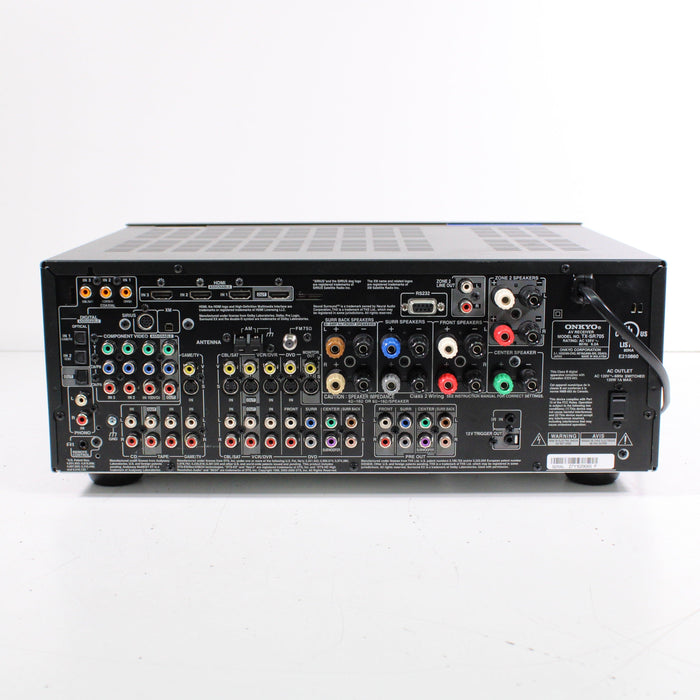

INPUTS
- Setup Mic x1 (front)
- S-Video x5 (front and back)
- Composite AV x5 (front and back)
- Optical x3 (front and back)
- Coaxial x3 (back)
- Phono L/R x1 (back)
- Remote Control x1 (back)
- HDMI x3 (back)
- Sirius x1 (back)
- XM x1 (back)
- Component Video x3 (back)
- Analog Audio L/R x2 (back)
- AM Antenna x1 (back)
- FM Antenna x1 (back)
- RS232 x1 (back)
- IR In x1 (back)
OUTPUTS
- Headphones Jack x1 (front)
- Coaxial x1 (back)
- HDMI x1 (back)
- Component Video x1 (back)
- Analog Audio L/R x1 (back)
- Composite AV x1 (back)
- S-Video x1 (back)
- S-Video Monitor Out x1 (back)
- Video Monitor Out x1 (back)
- RS232 x1 (back)
- DVD Surrounds, Center, and Sub (back)
- Front, Surrounds, Center, Sub Pre Out (back)
- 12V Trigger Out x1 (back)
- Zone 2 Line Out L/R x1 (back)
- Zone 2 Speakers (Banana Plug) R/L x1 (back)
- Surround Back Speakers (Banana Plug) R/L x1 (back)
- Surround Speakers (Banana Plug) R/L x1 (back)
- Front Speakers (Banana Plug) R/L x1 (back)
- Center Speaker (Banana Plug) x1 (back)
- AC Outlet x1 (back)
MANUFACTURE DATE and PLACE
- MFD. 2007-2008
- Made in Malaysia
