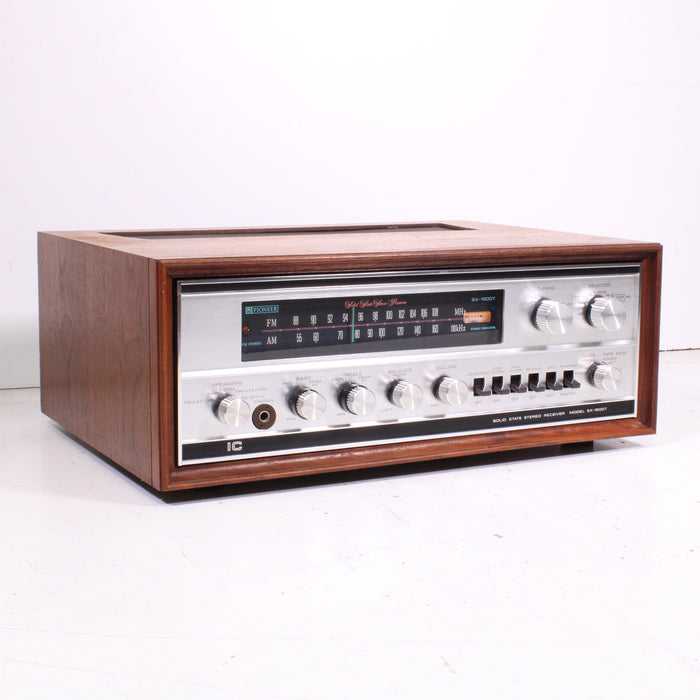

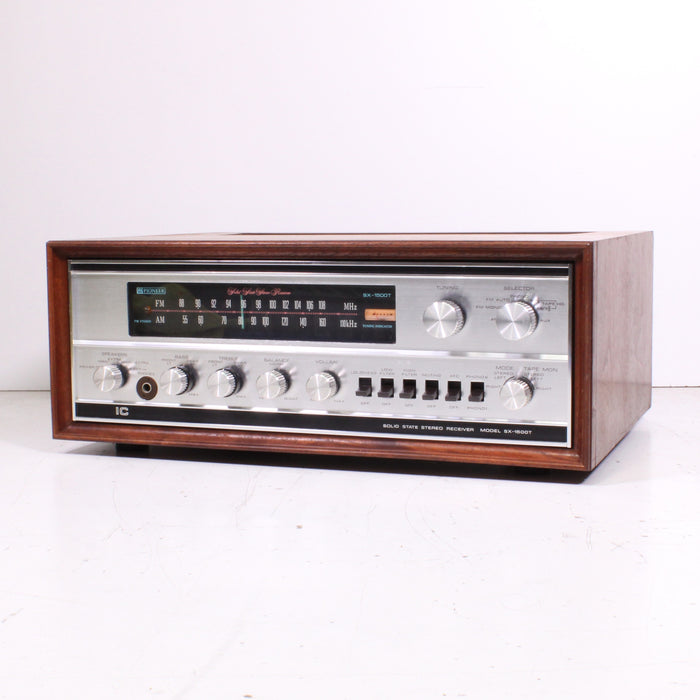

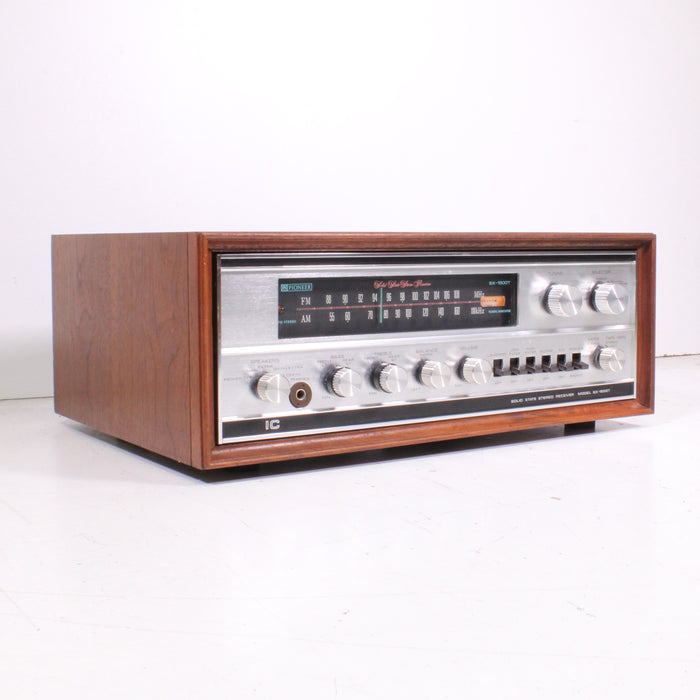

Pioneer SX-1500T Vintage AM/FM Stereo Receiver Silver Face 55WPC (1968)
Experience the golden age of hi-fi with the Pioneer SX-1500T, a classic late-1960s solid-state AM/FM stereo receiver delivering an impressive 55 watts per channel into 8 ohms. Featuring a beautiful brushed aluminum faceplate, illuminated analog tuning dial, tuning meter, and distinctive wood cabinet, this vintage Pioneer receiver combines timeless styling with powerful stereo performance. Equipped with multiple phono connections, an auxiliary input, tape recording capabilities, and independent left and right tone controls, the SX-1500T offers exceptional versatility for vintage audio enthusiasts. Fully tested, refurbished, and SPENCERTIFIED for reliable everyday listening.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
100% tested and functional. Controls and switches cleaned with WD-40 Specialist Electrical Contact Cleaner. Internal boards and connections inspected, amplifier outputs tested, DC offset checked, and all major audio functions verified for proper operation.
Cosmetic Condition: 9/10 (wood case has some signs of age).
Functional Condition: 10/10.
WHAT'S IN THE BOX?
- Pioneer SX-1500T Vintage AM/FM Stereo Receiver Silver Face 55WPC
- Speaker Wire
FEATURES OF THE PIONEER SX1500T
- AM/FM Stereo Tuner: Built-in analog radio reception with automatic FM stereo switching.

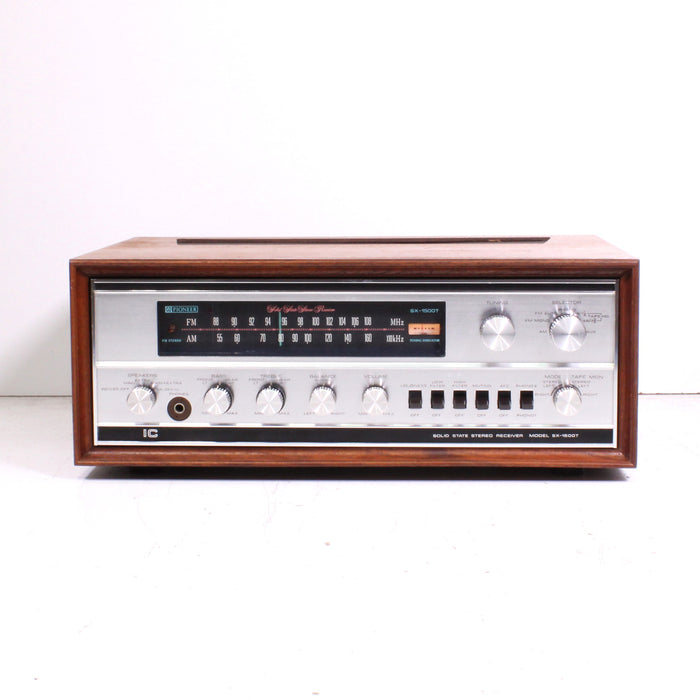

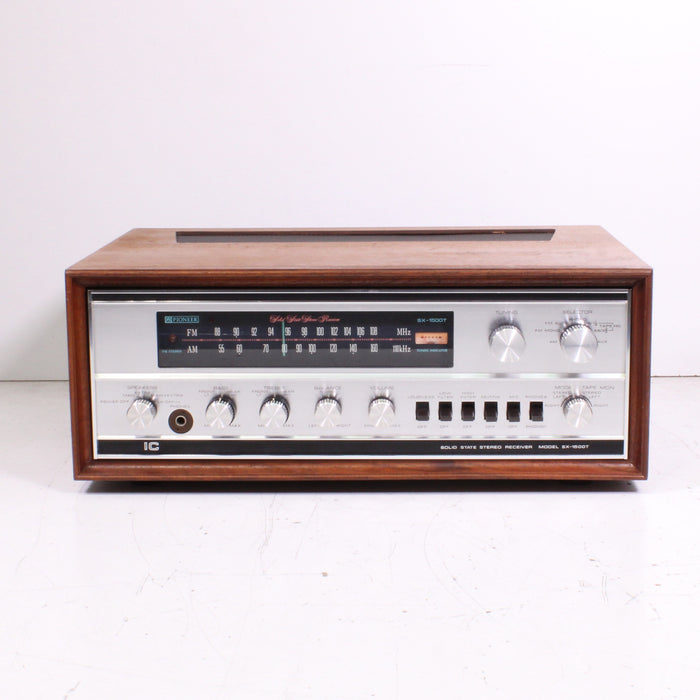

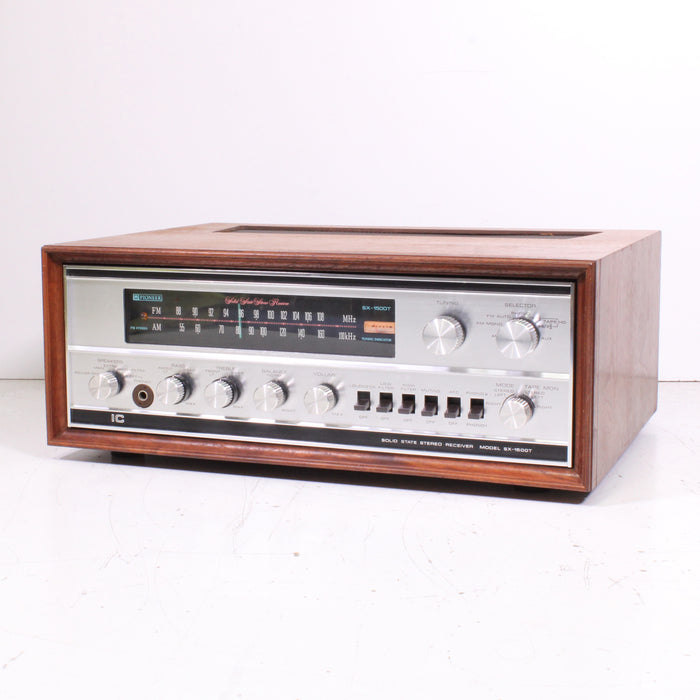

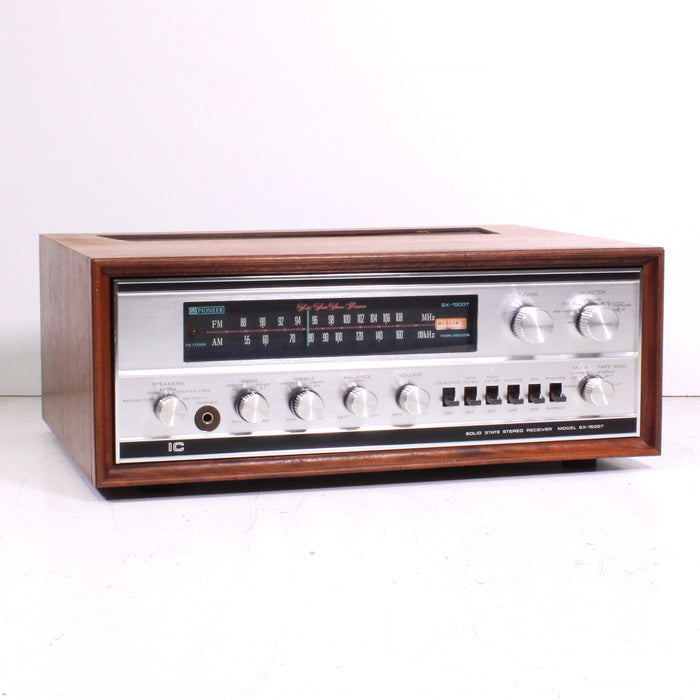

- Silver Face Design: Classic brushed aluminum front panel with polished metal controls.

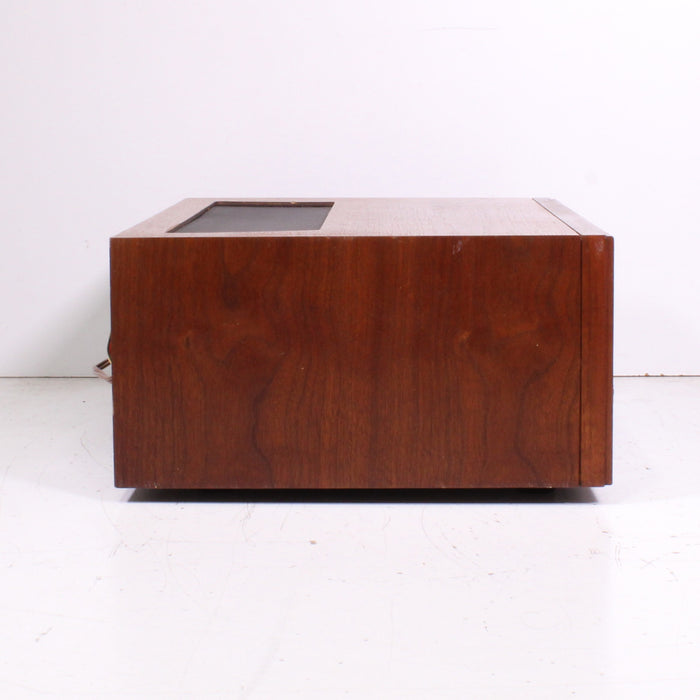

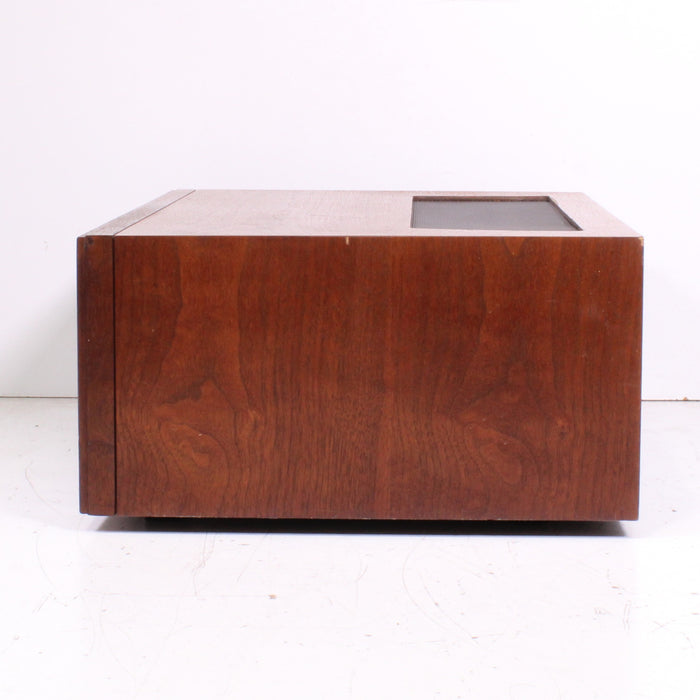

- Wood Cabinet: Traditional late-1960s Pioneer styling with wood exterior.

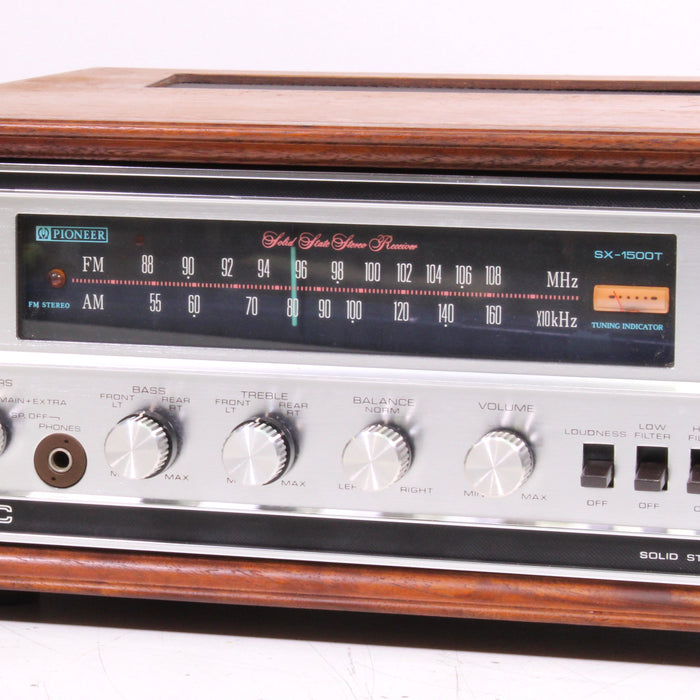

- Illuminated Analog Dial: Large AM/FM tuning display.
- Analog Tuning Meter: Helps accurately tune AM and FM radio stations.
- FM Stereo Indicator: Illuminates when receiving an FM stereo broadcast.
- Dual Magnetic Phono Inputs: Connect two turntables equipped with magnetic cartridges.
- Ceramic Phono Input: Additional connection for a turntable equipped with a ceramic or crystal cartridge.
- Auxiliary RCA Input: Connect additional audio components, such as a CD player or external music source.
- Tape Head Input: Built-in equalization for compatible tape decks without internal playback preamplifiers.
- Tape Monitor Function: Monitor tape playback and recordings.
- Tape Recording Outputs: Connect a cassette or reel-to-reel recorder.
- DIN Tape Connection: Vintage multi-pin connection for compatible tape recorders.
- Dual Speaker System Support: Main and Extra speaker connections with selectable operation.
- Independent Bass Controls: Concentric controls allow separate adjustment of left and right channel bass.
- Independent Treble Controls: Separate left and right channel treble adjustment.
- Balance Control: Adjust output balance between both stereo channels.
- Loudness Contour: Enhances low- and high-frequency response at reduced listening volumes.
- High Filter: Reduces high-frequency noise, hiss, and record surface noise.
- Low Filter: Helps minimize unwanted low-frequency rumble and hum.
- FM Muting: Reduces noise between FM radio stations.
- Automatic Frequency Control (AFC): Helps maintain stable FM tuning.
- Stereo/Mono Mode Selection: Includes left- and right-channel mono playback options.
- Headphone Output: Front-panel stereo headphone connection.
- Built-In AM Ferrite Antenna: Integrated AM reception antenna.
- Rear AC Convenience Outlets: Additional power outlets for compatible equipment.
- Made in Japan: Classic Japanese Pioneer craftsmanship.
SPECIFICATIONS OF THE PIONEER SX1500T
- Amplifier Design: Solid-State, Push-Pull
- Channels: 2-Channel Stereo
- Power Output (8 Ohms): 55 Watts Per Channel RMS
- Power Output (4 Ohms): 60 Watts Per Channel RMS
- Music Power (8 Ohms): 140 Watts Total
- Music Power (4 Ohms): 170 Watts Total
- Total Harmonic Distortion: Less than 0.5% at rated output, 1 kHz
- Frequency Response: 20 Hz – 70 kHz (±1 dB)
- Power Bandwidth: 15 Hz – 70 kHz
- Damping Factor: 25 (8 Ohms, 1 kHz)
- Speaker Impedance: 4–16 Ohms
- FM Frequency Range: 87–108 MHz
- AM Frequency Range: 525–1605 kHz
- FM Stereo Separation: 37 dB at 1 kHz
- FM Usable Sensitivity: 1.7 µV
- Phono Input Sensitivity (Magnetic): 2.4 mV
- Phono Input Sensitivity (Ceramic): 51 mV
- Tape Head Input Sensitivity: 1.5 mV
- Auxiliary Input Sensitivity: 200 mV
-
Tape Monitor Input Sensitivity: 200 mV
DIMENSIONS
- 16.5" W x 5.5" H x 13.7" D
- Weight: 28.9 lbs

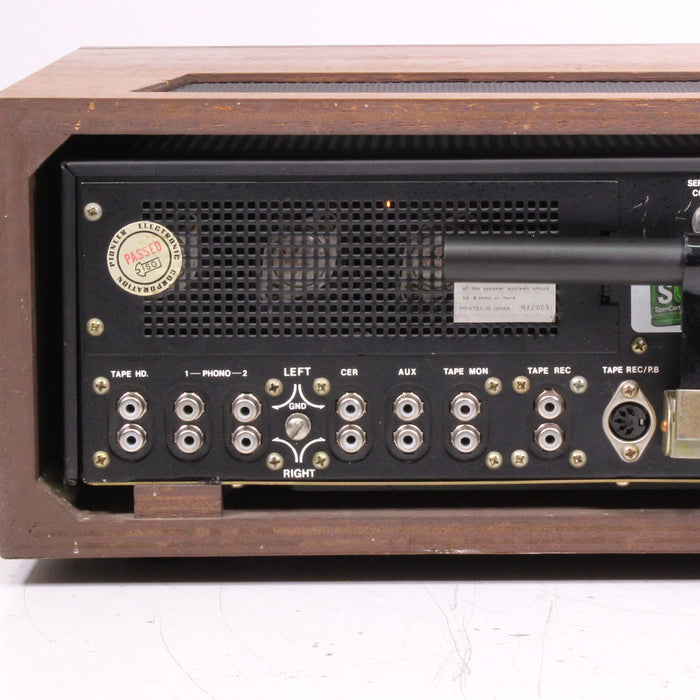

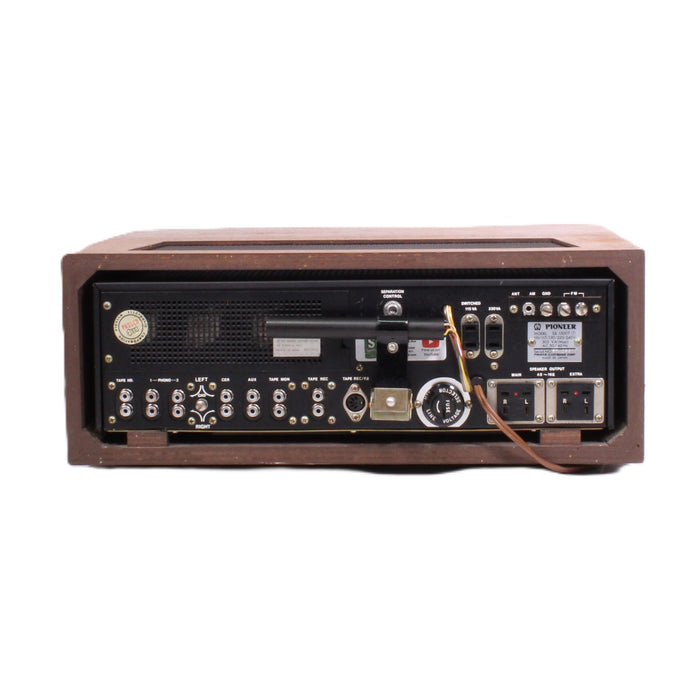

INPUTS
- 2 x Magnetic Phono Stereo RCA Inputs
- 1 x Ceramic Phono Stereo RCA Input
- 1 x Auxiliary Stereo RCA Input
- 1 x Tape Head Stereo RCA Input
- 1 x Tape Monitor Stereo RCA Input
- 1 x DIN Tape Recording/Playback Connection
- AM/FM Antenna Connections
-
Turntable Ground Terminals

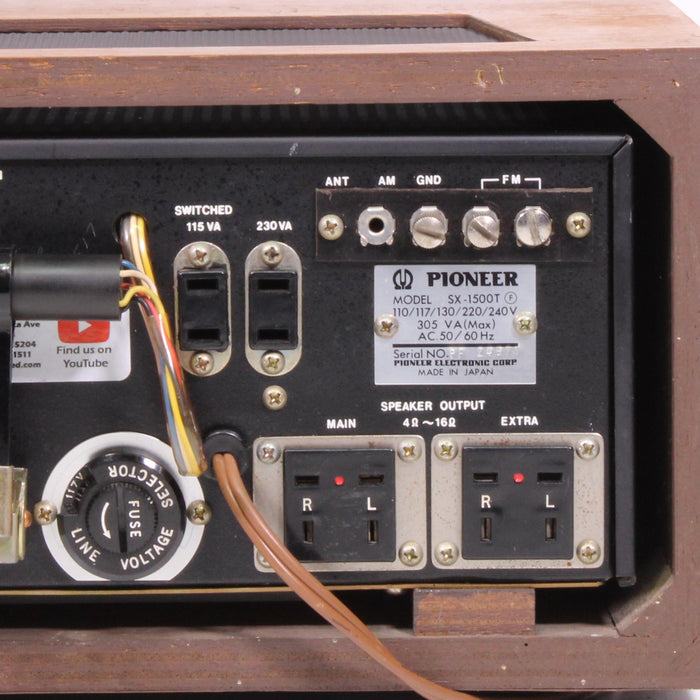

OUTPUTS
- 1 x Tape Recording Stereo RCA Output
- 1 x DIN Tape Recording/Playback Connection
- Main Left/Right Speaker Terminals
- Extra Left/Right Speaker Terminals
- 1 x Front Stereo Headphone Jack
-
Rear AC Convenience Outlets
MANUFACTURER
- MFD. 1967-1969
- Made in Japan
