Pioneer SX-424 Vintage AM FM Stereo Receiver Made in Japan
Sold out
Original price
$499.99
Original price
$499.99
-
Original price
$499.99
Original price
$499.99
Current price
$399.99
$299.99
-
$399.99
Current price
$399.99
The Pioneer SX-424 is a nice vintage receiver that both looks and sounds great! It's not overpowered or built like a tank, but it definitely gets the job done. It features a range of connectivity options, including a phono hookup for your turntable.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
Every function has been confirmed 100% working. We have cleaned it inside and out and replaced any worn parts. A recap was performed if necessary. All pots, knobs, connectors and boards have been cleaned with CRC cleaner.
Cosmetic Condition: Very Good.

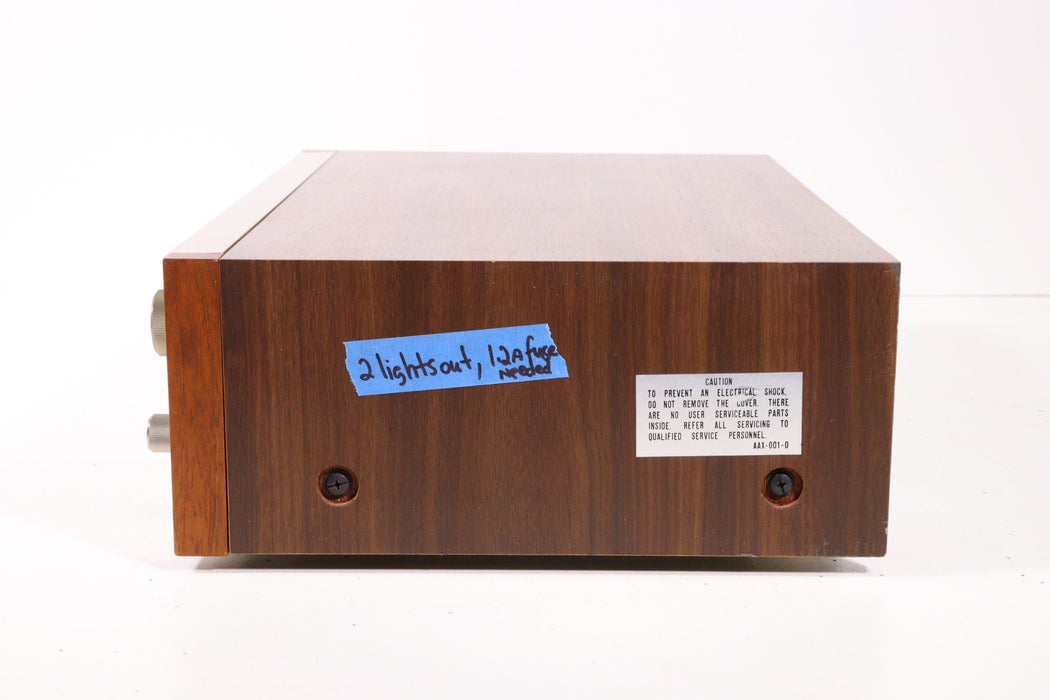

Functional Condition: Depending on the condition you choose, 2 lights may be out.
WHAT'S IN THE BOX?
- Pioneer SX-424 Vintage AM FM Stereo Receiver
- Audio Cords
Other information about the Pioneer SX-424
- Power output: 12 watts per channel into 8Ω (stereo)
- Frequency response: 20Hz to 70kHz
- Total harmonic distortion: 1%
- Damping factor: 40
- Input sensitivity: 6.5mV (mic), 3mV (MM), 180mV (DIN), 180mV (line)
- Signal to noise ratio: 75dB (MM), 85dB (line)
- Output: 180mV (line), 36mV (DIN)
- Speaker load impedance: 4Ω to 16Ω
- Semiconductors: 1 x FET, 30 x transistors, 24 x diodes
DIMENSIONS
- 17" x 13.67" x 5.75" (Length x Width x Height)
- Weight: 17.5 lbs
INPUTS
- Microphone x1 (front)
- FM Antenna x1 (back)
- AM Antenna x1 (back)
- GND x1 (back)
- Phono L/R x1 (back)
- Aux L/R x1 (back)
- Tape L/R x1 (back)
- Tape REC/PB x1 (back)
OUTPUTS
- Headphones Jack x1 (front)
- Tape L/R x1 (back)
- Tape REC/PB x1 (back)
- Speakers R/L x2 (back)
- AC Outlets x2 (back)
MANUFACTURE DATE and PLACE
- MFD. 1972-1974
- Made in Japan
