Pioneer SX-737 Vintage AM/FM Stereo Receiver 35W (1974-76) (AS IS)
The Pioneer SX-737 delivers all you want in a vintage receiver and more. It offers a continuous power output of 35 watts per channel (min RMS at 8 ohms), from 20 to 20,000Hz, with no more than 0.5% total harmonic distortion. This means it has the power to do the job you need it to: no more and no less. The phono stage and bass response are top quality; hook up your turntable, and you'll be amazed by the clean, warm sound. Plus, the SX-737 has the traditional Pioneer 70s receiver styling with a silver face and wooden case. This particular system currently has no sound and blows fuses, but for the right person who wants to give this amazing system the service and care it needs, it can become the perfect vintage receiver!
CONDITION
As is, has issues, for parts or repair.
At Spencertified, we are experts on a wide variety of electronics. Unfortunately, we do not have the time or resources necessary to fix everything that comes in our shop. So, rather than throwing it away, we give our customers an opportunity to tinker.
Cosmetic Condition: Good.

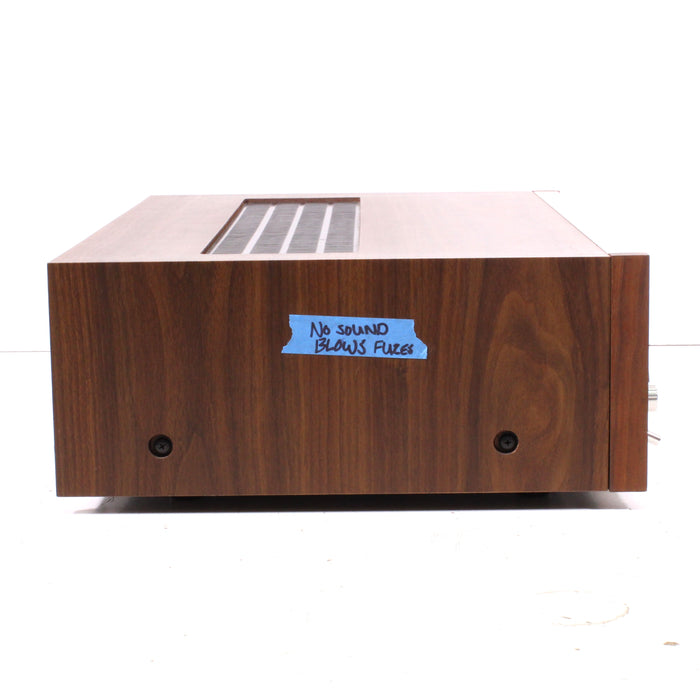

Functional Condition: As-is. Has issues. For parts or repair. (No sound. Blows fuses).
WHAT'S IN THE BOX?
- Pioneer SX-737 Vintage AM/FM Stereo Receiver 35W (AS IS)
Other information about the Pioneer SX737
- Tuning range: FM, MW
- Power output: 35 watts per channel into 8Ω (stereo)
- Frequency response: 15Hz to 40kHz
- Total harmonic distortion: 0.5%
- Damping factor: 40
- Input sensitivity: 2.5mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
- Signal to noise ratio: 65dB (mic), 70dB (MM), 95dB (line)
- Output: 150mV (line), 30mV (DIN)
- Speaker load impedance: 4Ω (minimum)
- Semiconductors: 1 x FET, 3 x IC, 46 x transistors, 22 x diodes
- Easy A/B speaker switching
- Bass, treble, and balance controls
- FM muting on/off
- Silver-faced design
- Wooden side panels
DIMENSIONS
- 19.75″ x 15″ x 6.1″ (Length x Width x Height)
- Weight: 29 lbs
INPUTS
- Microphone x1 (front)
- FM Antenna x1 (back)
- AM Antenna x1 (back)
- GND x1 (back)
- Phono L/R x1 (back)
- Aux x1 (back)
- Tape L/R x2 (back)
- Tape DIN Rec/PB x1 (back)
OUTPUTS
- Headphones Jack x1 (front)
- Tape L/R x2 (back)
- Tape DIN Rec/PB x1 (back)
- Speaker R/L x2 (back)
- AC Outlets x2 (back)
MANUFACTURE DATE and PLACE
- MFD. 1974-1976
- Made in Japan
