Pioneer SX-850 Vintage Stereo AM FM Receiver Silver Face (1976)

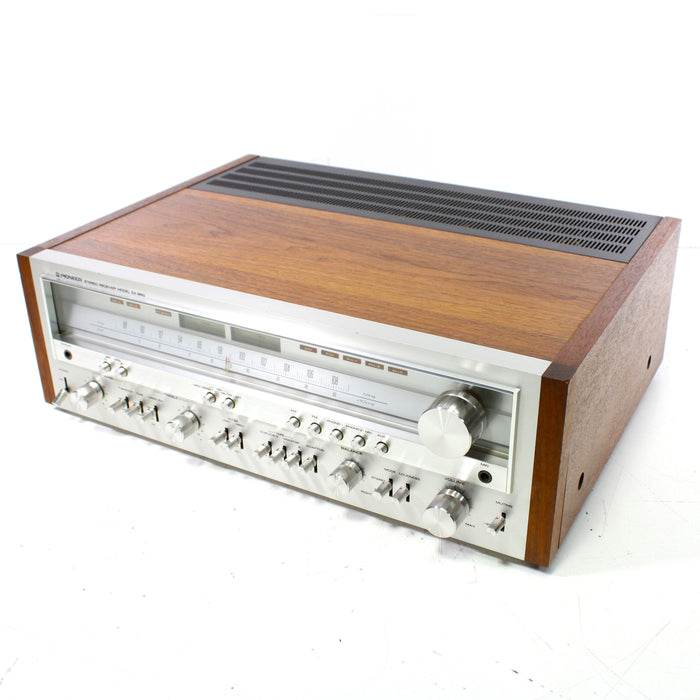

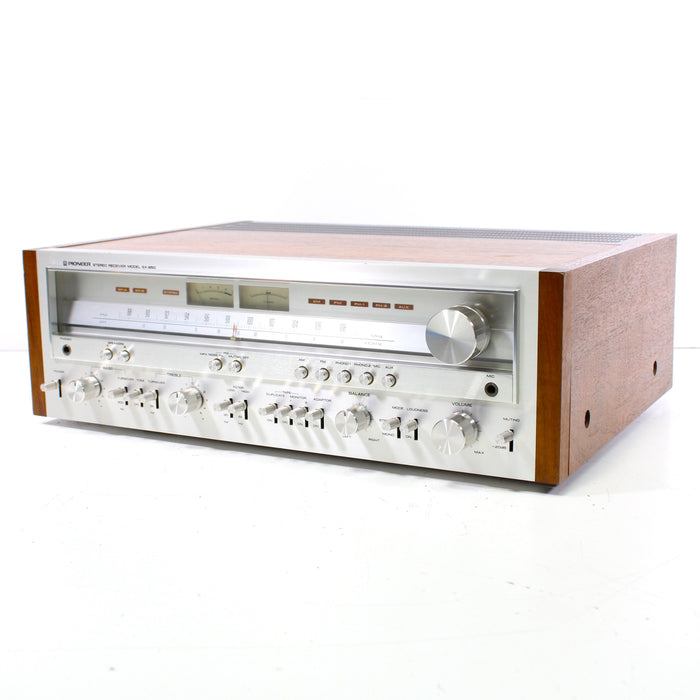

The Pioneer SX-850 delivers all you want in a vintage receiver and more. It delivers a continuous power output of 65 watts per channel, min RMS at 8 ohms, from 20 to 20,000Hz, with no more than 0.1% total harmonic distortion. The phono stage and bass response are top quality; hook up your turntable, and you'll be amazed by the clean, warm sound. Plus, the SX-850 has the traditional Pioneer 70s receiver styling: silver face, wooden case, and amber lights. The quality build and above-average performance makes it a fantastic receiver for anyone wanting to build or expand their vintage audio system.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
Every function has been confirmed 100% working.
All speakers drive and sound like new.
All of the speakers themselves are in excellent condition.
All speaker surrounds are in excellent condition.
Cosmetic Condition: Very Good.
Functional Condition: Works Like New .
WHAT'S IN THE BOX?
- Pioneer SX-850 Vintage Stereo AM FM Receiver Silver Face
- Analog Audio Cable
Other information about the Pioneer SX850
- Tuning range: FM, MW
- Power output: 65 watts per channel into 8Ω (stereo)
- Frequency response: 10Hz to 50kHz
- Total harmonic distortion: 0.1%
- Damping factor: 25
- Input sensitivity: 6.5mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
- Signal to noise ratio: 70dB (MM), 90dB (line)
- Output: 150mV (line), 30mV (DIN), 1V (Pre out)
- Speaker load impedance: 4Ω (minimum)
- Semiconductors: 3 x FET, 3 x IC, 56 x transistors, 36 x diodes
- Super-quiet 3-stage direct-coupled phono equalizer
- FET in the Tone Control section
- 2-step frequency turnover switch for Bass and another for Treble
- 2-deck monitor/dubbing
- 2-system speaker drive
- Separable pre/main
- Superb FM/ AM section with dual-gate MOS FET and 4-gang variable capacitor
- PLL IC in the multiplex to improve stereo separation
- Special Integrated Circuit in the AM for better reception and less noise

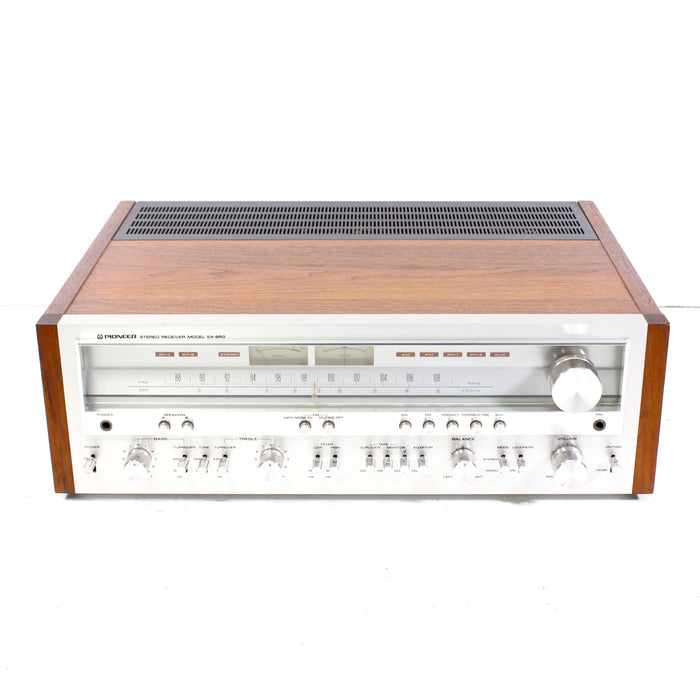

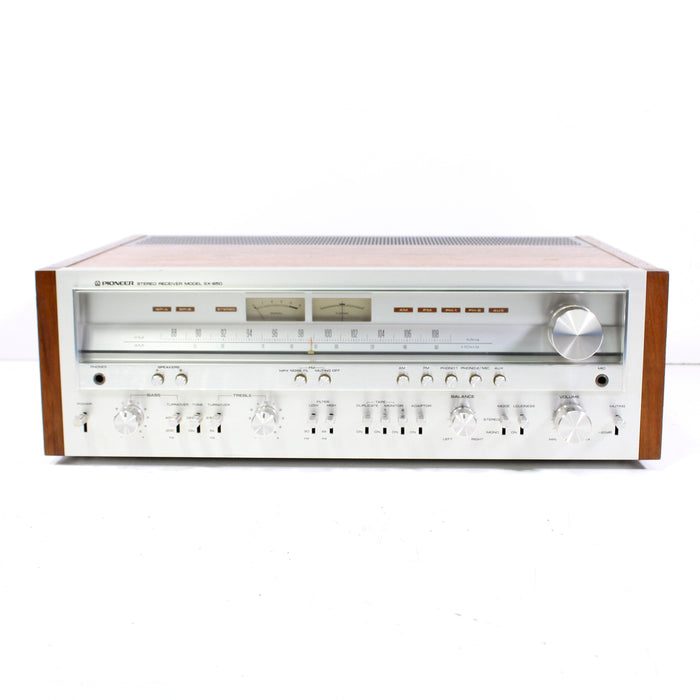

- Silver-faced design

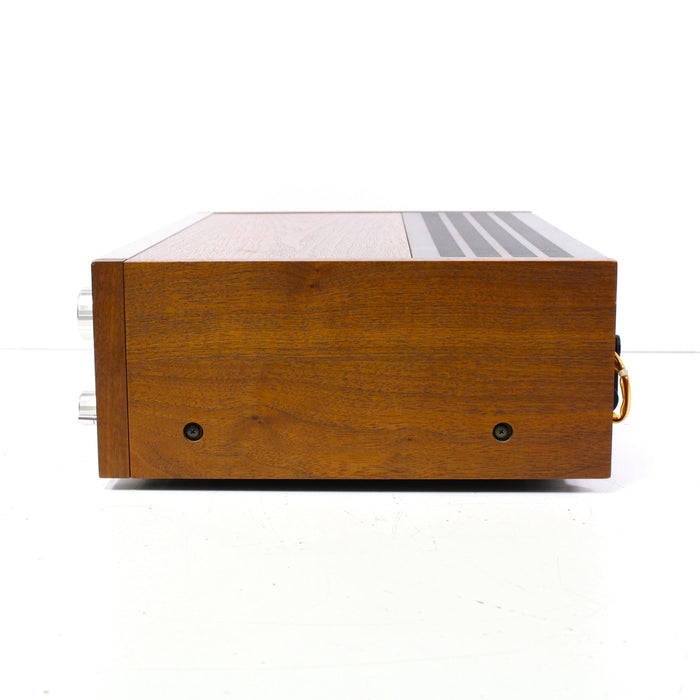

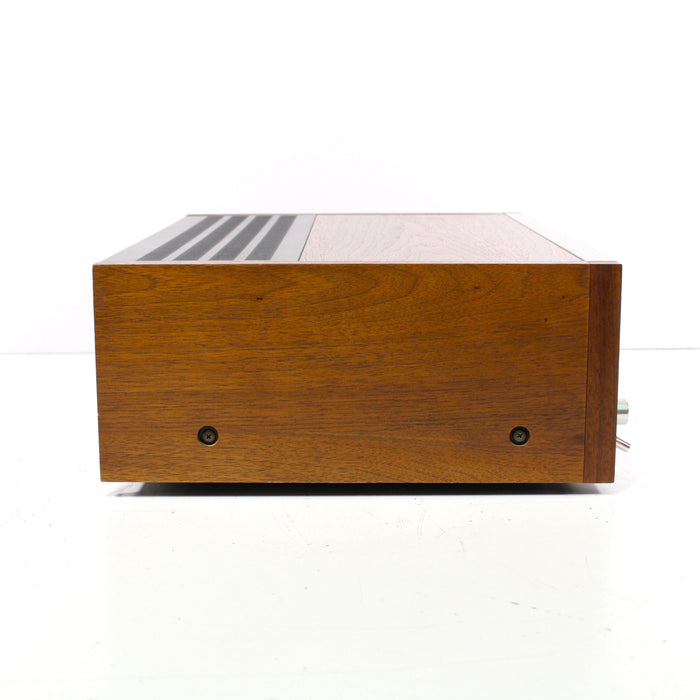

- Wooden side panels
DIMENSIONS
- 20.75″ x 15.5″ x 6.7″ (Length x Width x Height)
- Weight: 42 lbs

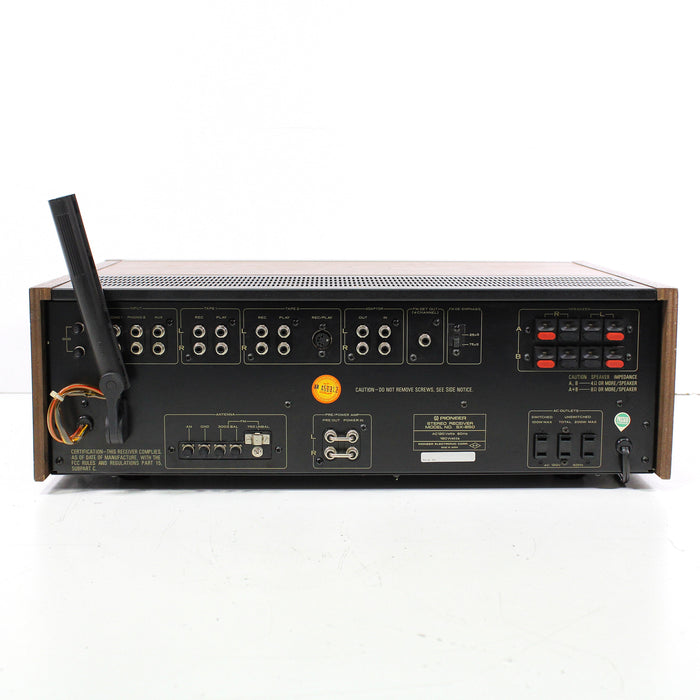

INPUTS
- Microphone x1 (front)
- GND x1 (back)
- Phono L/R x2 (back)
- Aux x1 (back)
- Tape L/R x2 (back)
- Tape DIN x1 (back)
- Adaptor L/R x1 (back)
- FM Antenna x1 (back)
- AM Antenna x1 (back)
- Pre Power In x1 (back)

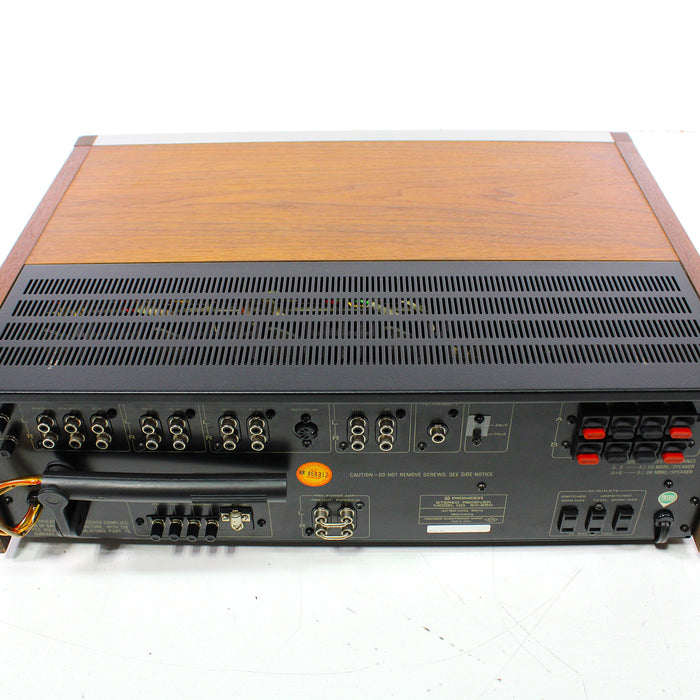

OUTPUTS
- Headphones Jack x1 (front)
- Tape L/R x2 (back)
- Tape DIN x1 (back)
- Adaptor L/R x1 (back)
- FM Det Out x1 (back)
- Pre Out L/R x1 (back)
- Speaker R/L x2 (back)
- AC Outlets x3 (back)
MANUFACTURE DATE and PLACE
- MFD. 1976
- Made in Japan
