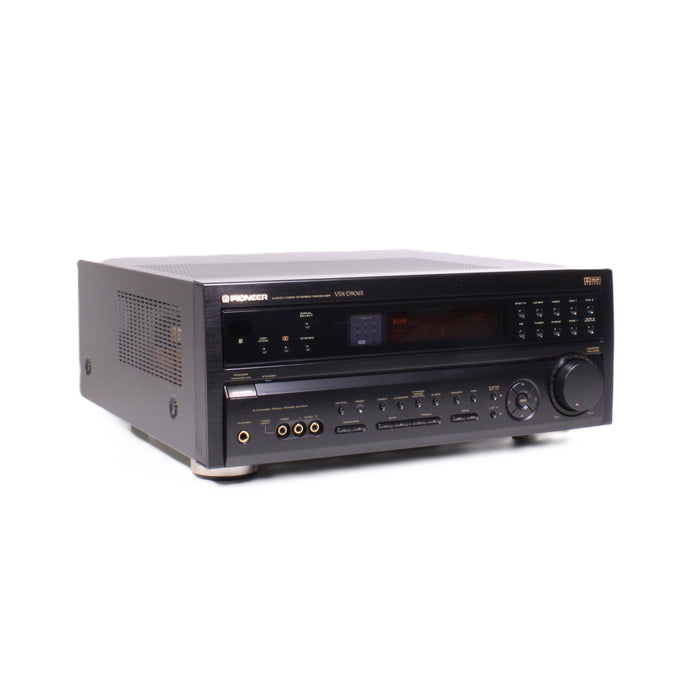

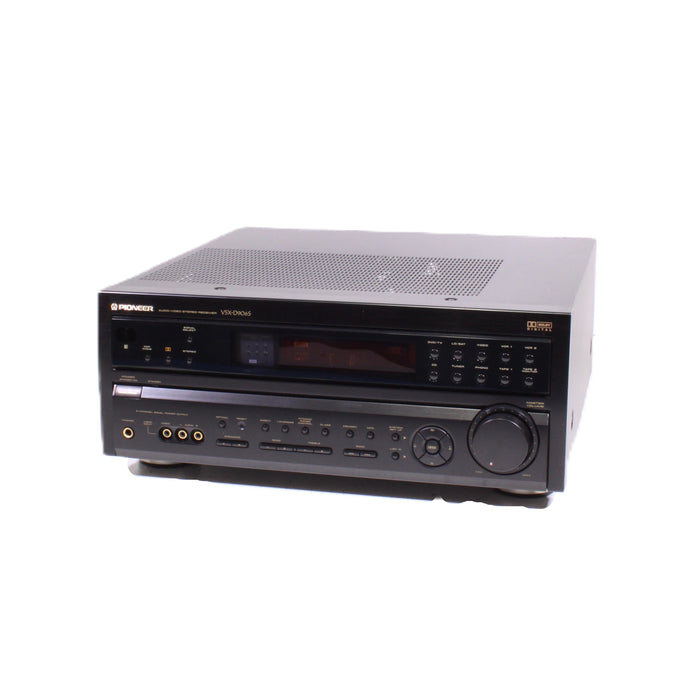

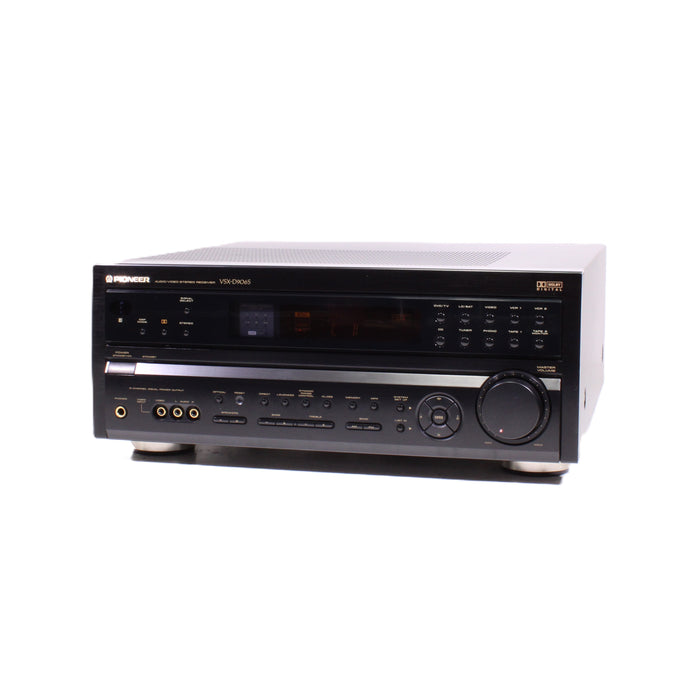

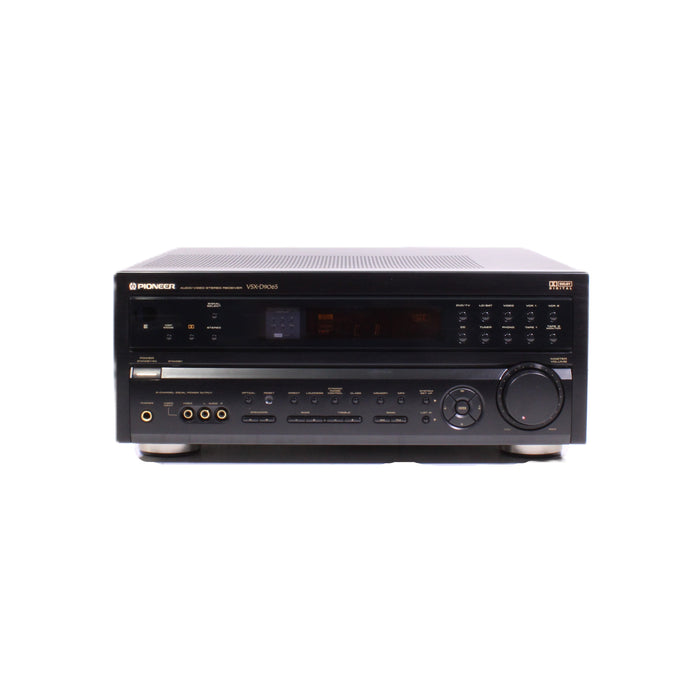

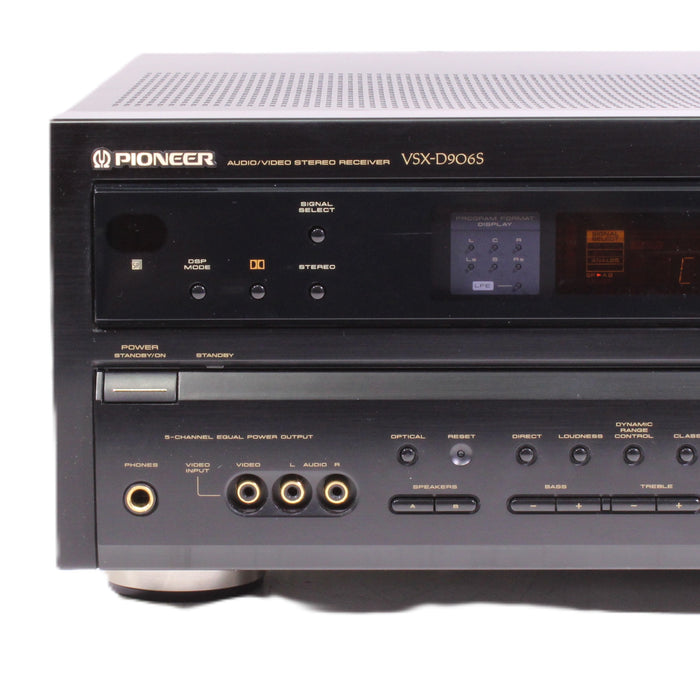

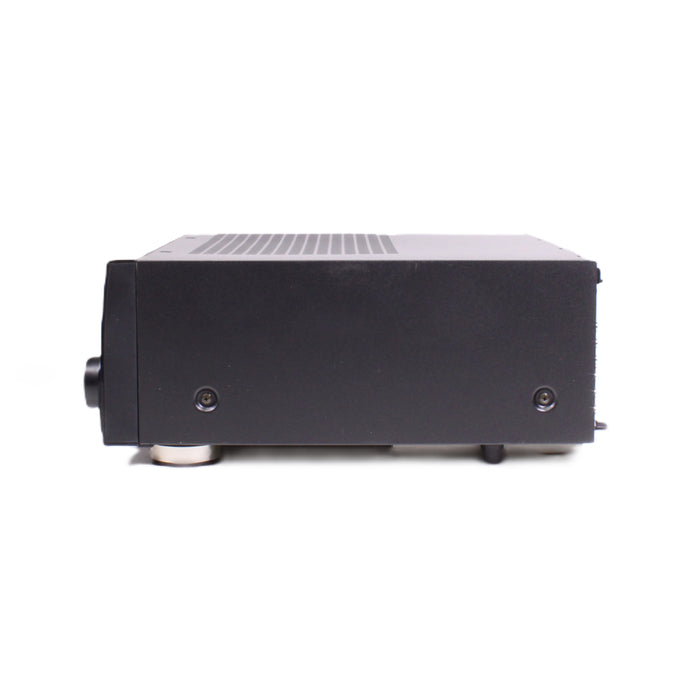

Pioneer VSX-D906S Audio Video Stereo Receiver Dolby Digital 5.1 Channel Phono (1997)
Build a powerful late-1990s home theater and stereo system around the Pioneer VSX-D906S. This high-current Dolby Digital 5.1 receiver delivers 100 watts per channel, with a built-in phono stage for a turntable, optical and coaxial digital audio inputs, and both composite and S-video switching. Its substantial build, silver-face design, and full set of preamp outputs make it an excellent centerpiece for vintage home theater, gaming, CD, LaserDisc, and vinyl systems. SPENCERTIFIED and ready to perform.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
100% tested and functional. Cleaned inside and out; worn parts replaced as needed. Controls, switches, and boards cleaned with WD-40 Specialist Electrical Contact Cleaner, safe for electronics. Amplifier boards were inspected, controls cleaned, and DC offset checked. FM/AM tuner operation, phono input, analog and digital audio inputs, surround processing, video switching, preamp outputs, headphone jack, and all speaker terminals were tested.
Cosmetic Condition: 9/10
Functional Condition: 10/10
WHAT'S IN THE BOX?
- Pioneer VSX-D906S Audio Video Stereo Receiver Dolby Digital 5.1 Channel Phono (1997)
- Composite Cables
Other information about the Pioneer VSX-D906S
- Tuning range: FW, MW
- Power output: 100 watts per channel into 8Ω (stereo)
- Surround output: 100W (front), 100W (center), 100W (rear)
- Frequency response: 5Hz to 100kHz
- Total harmonic distortion: 0.09%
- Input sensitivity: 3.8mV (MM), 275mV (line)
- Signal to noise ratio: 80dB (MM), 97dB (line)
- Output: 275mV (line)
- Speaker load impedance: 8Ω to 16Ω
DIMENSIONS
- Size: 16.5" W x 7" H x 17.7" D
- Weight: 29.3 lbs (13.3 kg)
INPUTS
- Composite x1 (front)
- Optical x1 (back)
- Coaxial x3 (back)
- Control x1 (back)
- Composite x4 (back)
- S-Video x4 (back)
- CD x1 L/R (back)
- Tape x2 L/R (back)
- Phono x1 L/R (back)
- GND x1 (back)

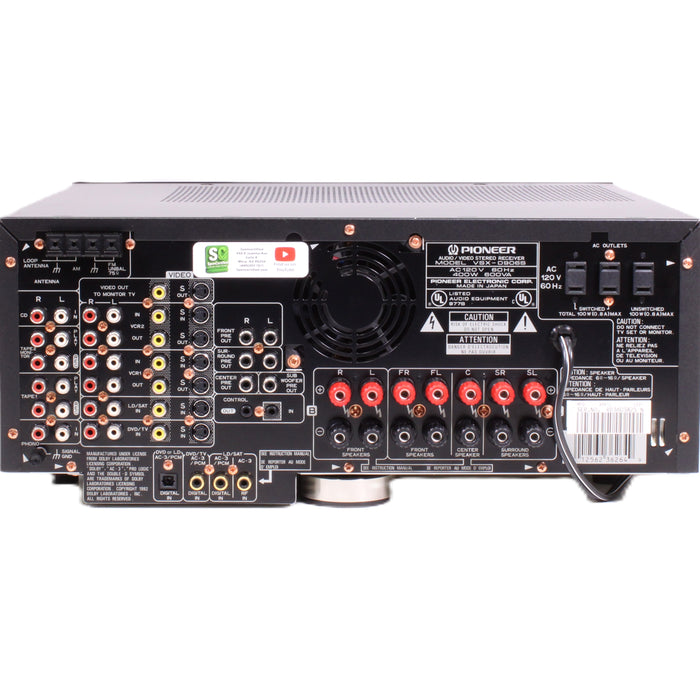

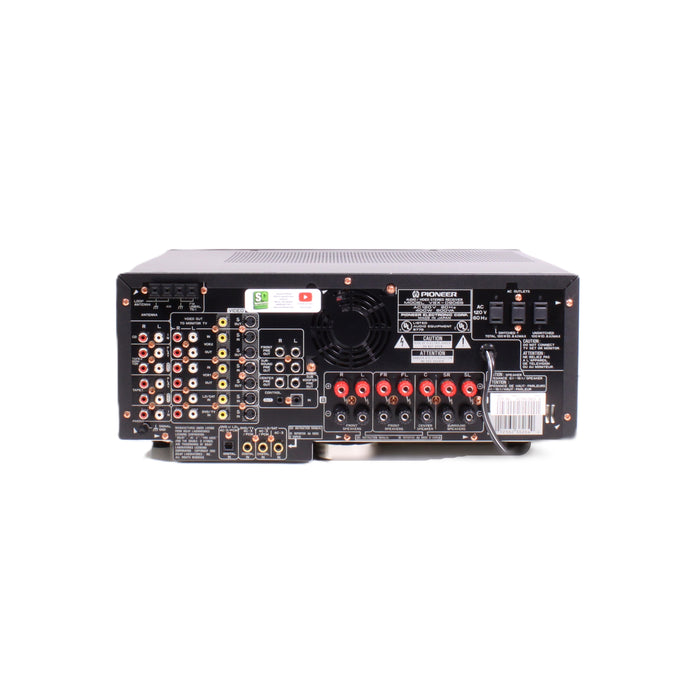

OUTPUTS
- Headphone x1 (front)
- Speakers x3 L/R (back)
- Center Speaker x1 (back)
- Control x1 (back)
- PreOut x2 (back)
- Front Pre Out x1 L/R (back)
- Surround Pre Out x1 L/R (back)
- Composite x2 (back)
- Video Out x1 (back)
- S-Video x3 (back)
- Tape x2 L/R (back)
MANUFACTURE DATE and PLACE
- MFD. April, 1997
- Made in Japan
