Sanyo JCX 2300KR Vintage FM AM Stereo Receiver (AS IS - HAS ISSUES)
Travel back in time with the Sanyo JCX 2300KR Vintage FM AM Stereo Receiver! It has a nice warm sound. With its silver face and wooden case, this stereo component receiver will look amazing in any home or office. This system's DC offset levels are currently dangerously high for the left channel (20V), but for the right person that wants to give this amazing system the service and care it needs, it can become the perfect vintage stereo receiver!
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
Every function has been tested. We have determined all the issues with the device and have listed them in this description. This item is sold "as is", potential buyers should be aware that this product does not come with a warranty or any guarantee.
Cosmetic Condition: Good.

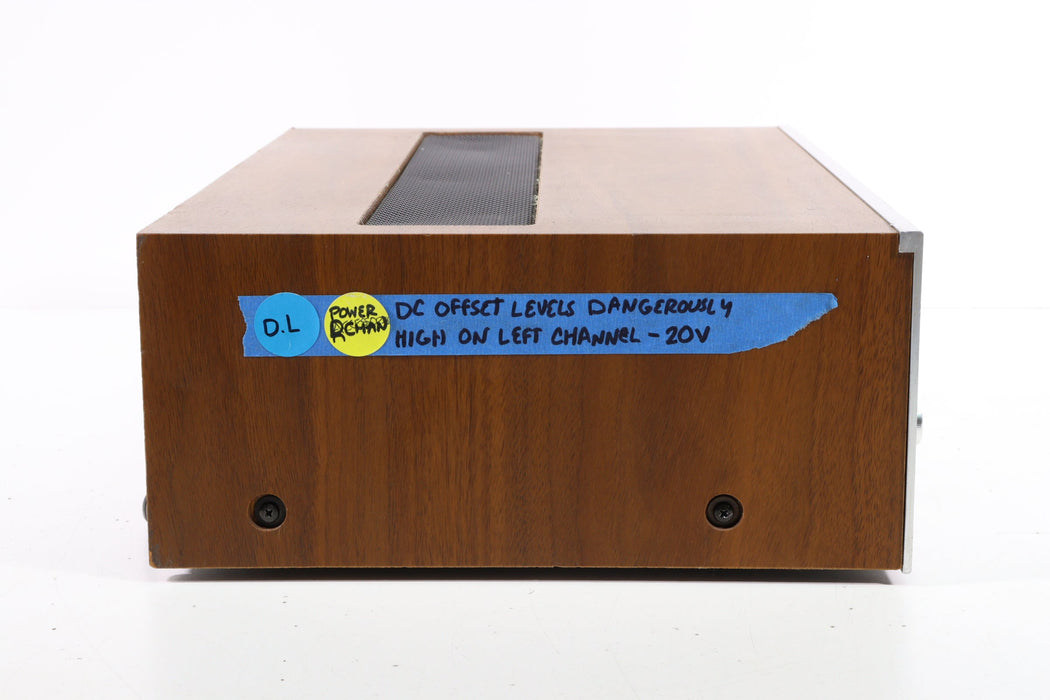

Functional Condition: DC offset levels dangerously high on left channel (20V).
WHAT'S IN THE BOX?
- Sanyo JCX 2300KR Vintage FM AM Stereo Receiver (HAS ISSUES)
-
Audio Cords
Other information about the Sanyo JCX 2300KR
- Tuning range: FM, MW
- Power output: 26 watts per channel into 8Ω (stereo)
- Frequency response: 20Hz to 30kHz
- Total harmonic distortion: 0.4%
- Input sensitivity: 2.5mV (MM), 150mV (line)
- Signal to noise ratio: 70dB (MM), 90dB (line)
- Output: 150mV (line)
DIMENSIONS
- 17.33" x 13" x 5.5" (Length x Width x Height)
- Weight: 20 lbs
INPUTS
- AM Antenna x1 (back)
- FM Antenna x1 (back)
- GND x1 (back)
- Phono L/R x1 (back)
- Aux L/R x1 (back)
- Tape Play L/R x2 (back)
OUTPUTS
- Headphones x1 (front)
- Tape Rec L/R x2 (back)
- Speakers R/L x2 (back)
- AC Outlets x2 (back)
MANUFACTURE DATE AND PLACE
- MFD. 1979
- Made in Japan
