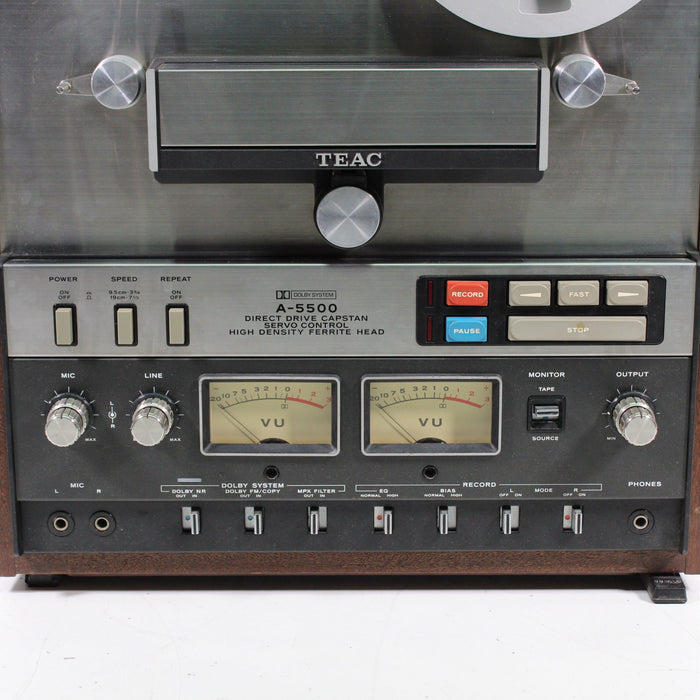

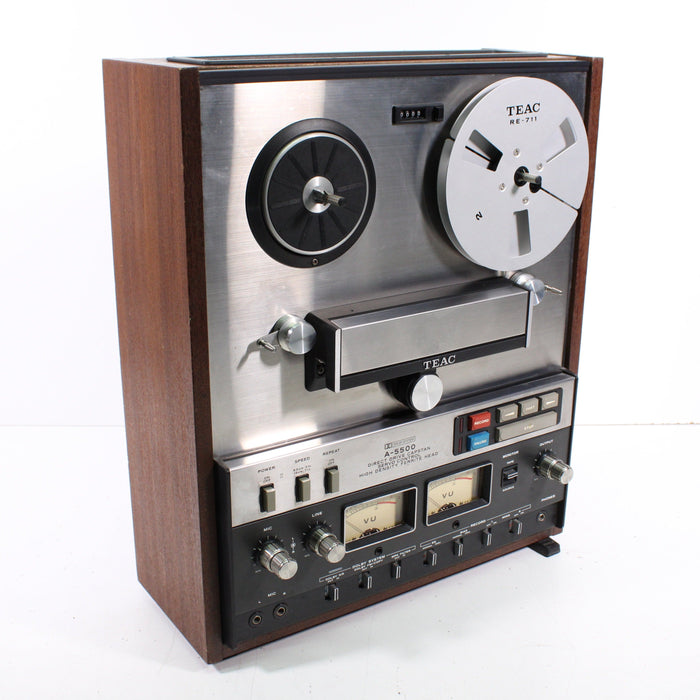

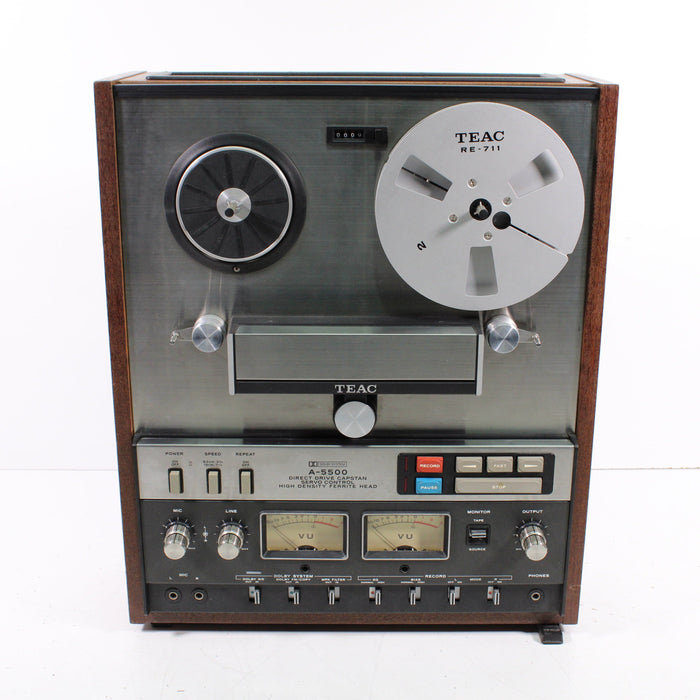

Teac A-5500 Reel-to-Reel Player and Recorder Stereo Tapecorder (AS IS)
The Teac A-5500 is a 4-track, 2-channel, stereo/monaural system. This reel-to-reel was produced in 1973 around the time when Teac was just beginning to release their professional range of tape decks. It features two VU meters and Dolby B noise reduction which reduces most, if not all, tape hiss in recordings. This system's motor currently squeals loudly, but for the right person who wants to give this amazing system the service and care it needs, it can become the perfect reel-to-reel deck!
CONDITION
Every function has been tested. We have determined all the issues with the device and have listed them in this description. This item is sold "as is,” so potential buyers should be aware that this product does not come with a warranty or any guarantee.
Cosmetic Condition: The unit itself is in good condition, but the front part of the left foot is broken off. It does still stand upright without issues though.

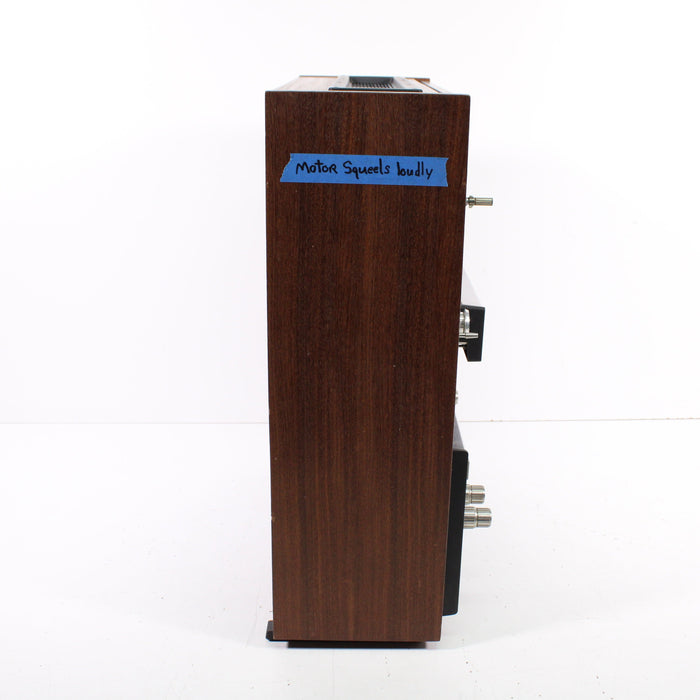

Functional Condition: Motor squeals loudly.
WHAT'S IN THE BOX?
- Teac A-5500 Reel-to-Reel Player and Recorder Stereo Tapecorder (AS IS)
- Analog Cable
Other information about the Teac A5500
- Electronics: Solid State
- Equalization: NAB
- Tracks: 1/4 Rec/PB
- Speeds: 3 3/4, 7 1/2
- Max Reel Size: 7"
- Number Of Heads: 4
- Head Configuration: Stereo
- Motors: 3
- Auto Reverse
- Voltage(S): 110-120v, 220-240v
- Outputs: RCA, DIN
- Frequency Response: 7½ Ips: 30Hz - 28kHz 3¾ Ips: 30Hz - 20kHz ( 3dB)
- Wow And Flutter: .06% At 7½ Ips And .09% At 3¾ Ips
- Signal-To-Noise Ratio: 65dB With Dolby Process, 60dB Without
- Noise Reduction: Dolby B
DIMENSIONS
- 21.25" x 8.75" x 17.5" (Length x Width x Height)
- Weight: 44 lbs

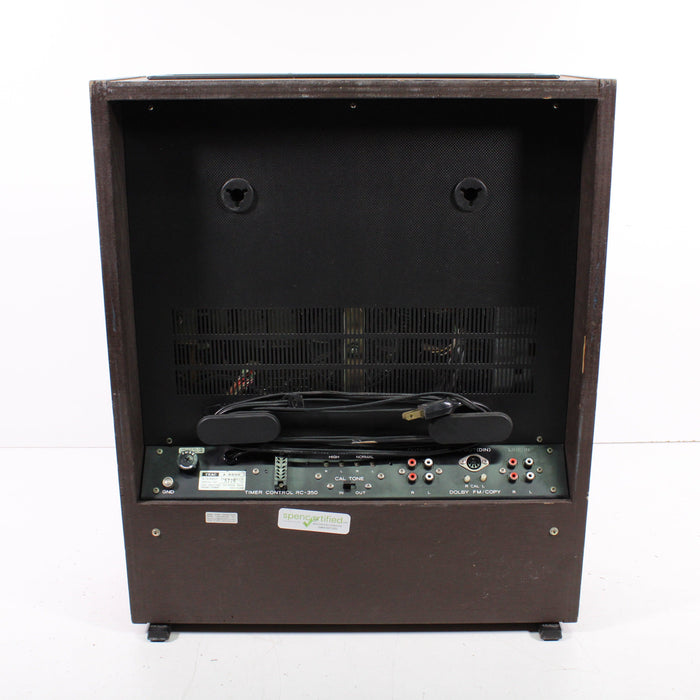

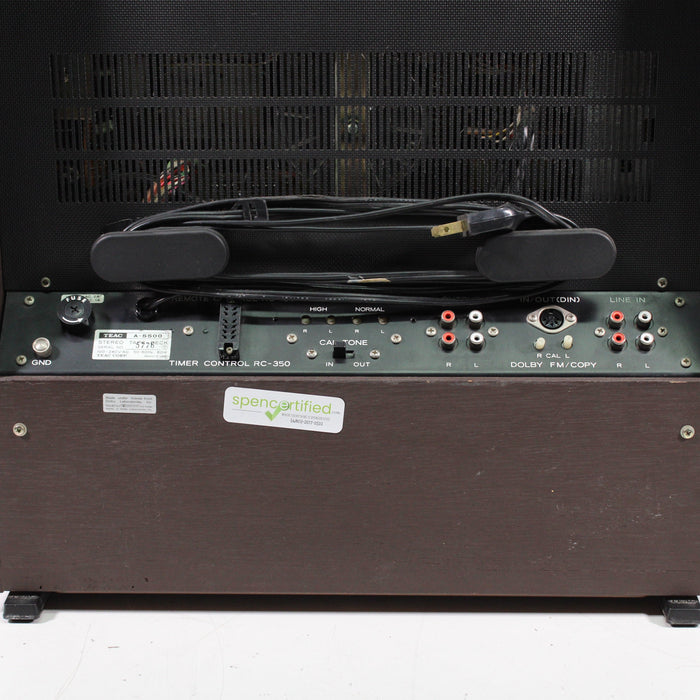

INPUTS
- Microphone Input L/R x1 (front)
- Line In L/R x2 (back)
- DIN In/Out x1 (back)
OUTPUTS
- Headphones Jack L/R x1 (front)
- Line In L/R x2 (back)
- DIN In/Out x1 (back)

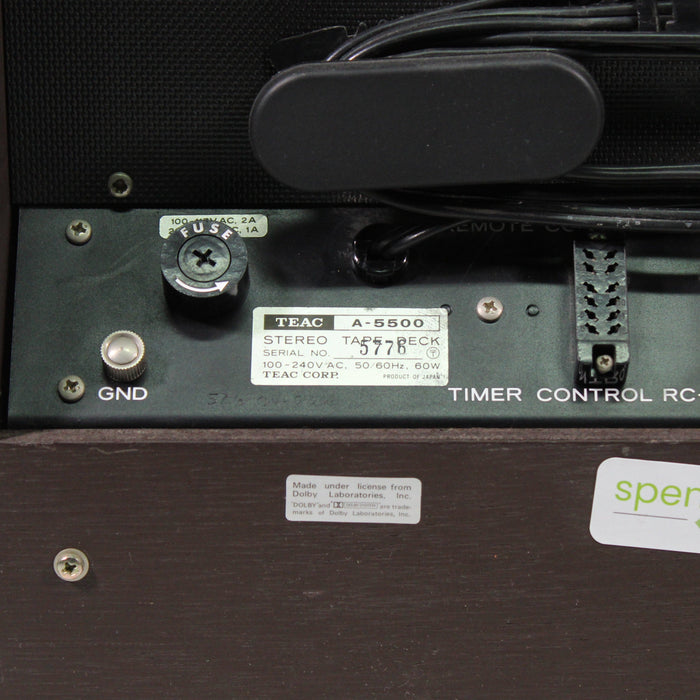

MANUFACTURE DATE and PLACE
- MFD. 1973
- Made in Japan
