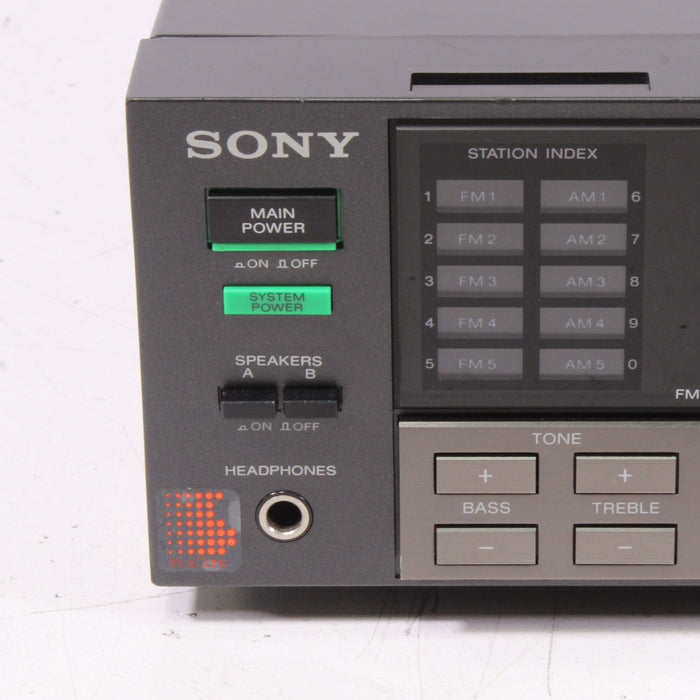

Sony STR-AV560 Vintage FM Stereo / FM AM Receiver with Quartz Lock (NO REMOTE)
Sold out
Original price
$399.99
Original price
$399.99
-
Original price
$399.99
Original price
$399.99
Current price
$49.99
$49.99
-
$49.99
Current price
$49.99
The Sony STR-AV560 is a vintage receiver that should please audiophiles and audio enthusiasts alike! This system doubles as an amplifier and an audio/video control center, and it's a quartz-locked digital synthesizer system with a Phase-Locked Loop (PLL) circuit, allowing precise tuning of all your favorite FM and AM stations.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
Every function has been confirmed 100% working. We have cleaned it inside and out and replaced any worn parts. A recap was performed if necessary. All pots, knobs, connectors and boards have been cleaned with CRC cleaner.
Cosmetic Condition: Very Good.
Functional Condition: Works Like New .
WHAT'S IN THE BOX?
- Sony STR-AV560 FM Stereo / FM AM Receiver with Quartz Lock (NO REMOTE)
- Composite Cable
Other information about the Sony STR-AV560
- Tuning range: FM, MW
- Power output: 60 watts per channel into 8Ω (stereo)
- Frequency response: 5Hz to 100kHz
- Total harmonic distortion: 0.008%
- Damping factor: 40
- Input sensitivity: 2.5mV (MM), 150mV (line)
- Signal to noise ratio: 87dB (MM), 105dB (line)
- Output: 150mV (line)
- Speaker load impedance: 4Ω to 16Ω
- Quartz lock digital synthesizer
- Direct access tuning
- Preset tuning
DIMENSIONS
- 17" x 13.6" x 4.15" (Length x Width x Height)
- Weight: 17.8 lbs
INPUTS
- CATV x1 (back)
- FM Antenna x1 (back)
- Remote Control - Player x1 (back)
- Remote Control - Tape Recorder x1 (back)
- GND x1 (back)
- Phono L/R x1 (back)
- CD/Aux L/R x1 (back)
- Composite AV x2 (back)
- Tape L/R x2 (back)
OUTPUTS
- Headphones Jack x1 (front)
- CATV x1 (back)
- Composite AV x1 (back)
- Video Monitor Out x1 (back)
- Tape L/R x2 (back)
- Speakers R/L x2 (back)
- AC Outlets x2 (back)
MANUFACTURE DATE and PLACE
- MFD. 1984-1985
- Made in Japan
