Sony TA-E9000ES ES A/V Control Amplifier | Dolby Digital, DTS, 5.1 Preamp Outputs, Phono
Bring Sony ES-series build quality and flexible analog and digital connectivity to a vintage home theater or stereo system with the TA-E9000ES A/V control amplifier. It decodes Dolby Digital (AC-3), DTS, MPEG, and Linear PCM, and provides dedicated preamp outputs for a full 5.1-channel system.
The TA-E9000ES is a preamp/processor, not a power amplifier. Pair it with external power amplifiers to drive your speakers. It also works as a stereo preamp, with an MM phono input, tone controls, and a wide range of line-level sources.
This unit has been refurbished and tested by SpenCertified. Its analog and digital inputs, preamp outputs, and surround processing have been checked.
Who this processor is ideal for
The TA-E9000ES is a good fit for someone restoring a period home theater system or building a component-based setup with separate power amplifiers. It’s also appealing to stereo listeners who want an ES-series preamp with phono support and extensive legacy connections.
Please note: This is a pre-HDMI processor. It connects to compatible source equipment through its analog, optical, and coaxial inputs; it does not provide HDMI connectivity.
Condition and testing
- Cosmetic condition: 9/10
- Functional condition: 10/10
- Cleaned inside and out
- Internal boards and connections inspected
- Analog and digital inputs checked
- Preamp outputs tested
- Surround processing verified
Audio and processing features
- Decodes Dolby Digital (AC-3), DTS, MPEG, and Linear PCM
- Dedicated 5.1-channel preamp outputs: front left/right, center, rear left/right, and subwoofer
- MM phono input
- Bass, midrange, and treble equalization
- Headphone output
- Frequency response: 20 Hz–20 kHz for line inputs
- Harmonic distortion: less than 0.05% with sound field and equalizer bypassed
- Line input sensitivity: 250 mV
- Phono input sensitivity: 5 mV
- Signal-to-noise ratio: 94 dB line; 82 dB phono
- Preamp output level: 1 V

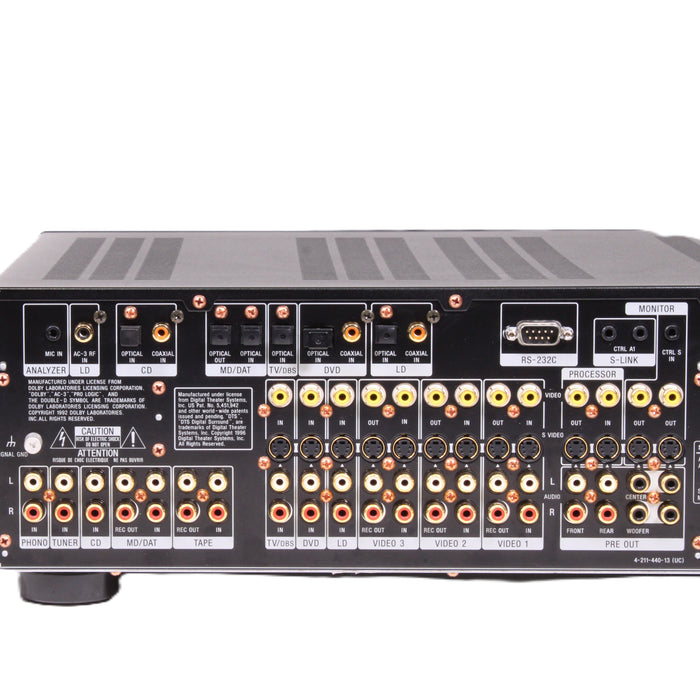

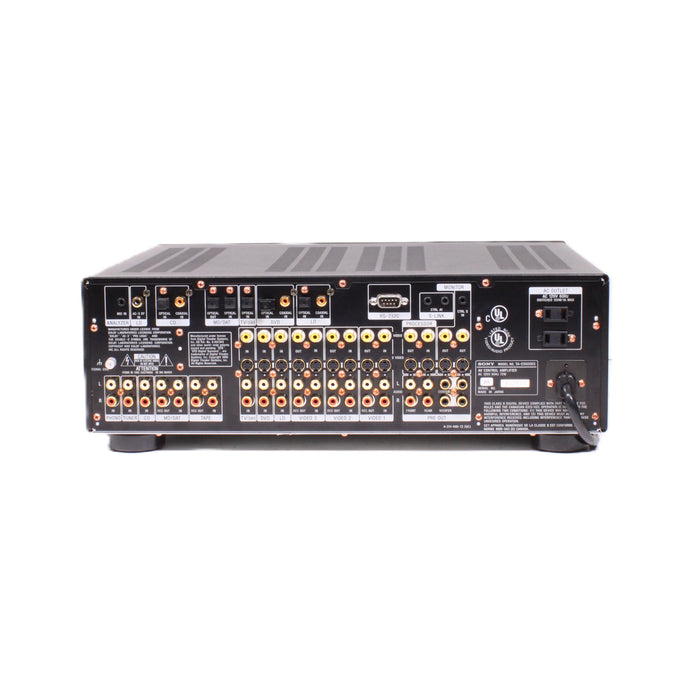

Connections
- Analog inputs for phono, tuner, CD, MD/DAT, tape, TV/DBS, DVD, LD, and video sources
- Optical and coaxial digital audio inputs
- LD AC-3 RF input
- 5.1-channel preamp outputs
- Optical digital output for MD/DAT
- Analog tape and video recording outputs
- Composite video and S-Video connections
- RS-232C, CONTROL A1, and CONTROL S connections
- Front-panel headphone jack
Included
- Sony TA-E9000ES A/V control amplifier
- Composite AV cable
- Remote control is not included
Dimensions and weight
- Approx. 17″ W × 6″ H × 15.25″ D
- Approx. 28 lb
Made in Japan. Specifications and supported formats are based on Sony’s operating documentation.
