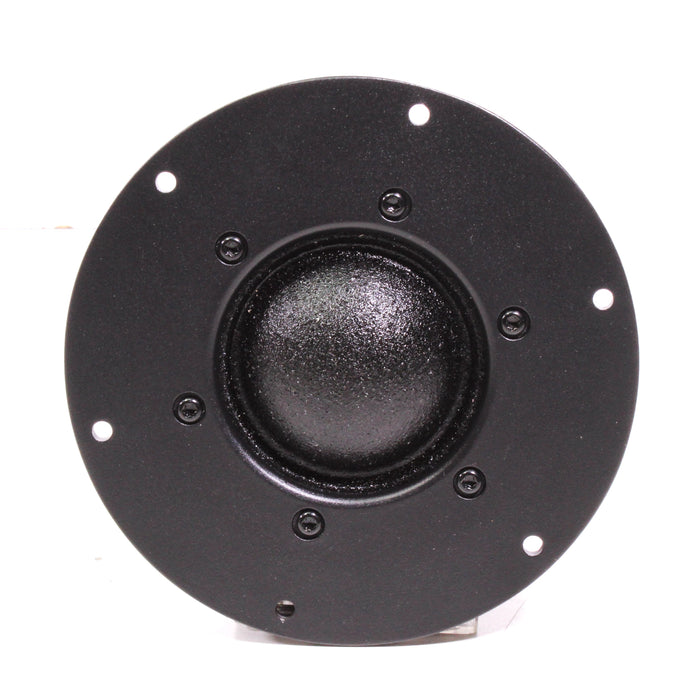

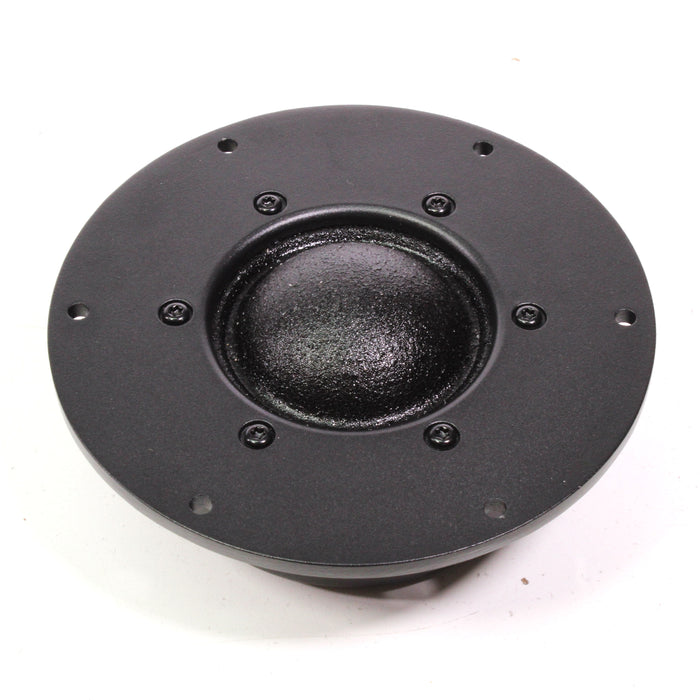

Swan HiVi DMB-A 2" Fabric Dome Midrange Speaker Driver Part 5 Ohms
The DMB-A is the perfect replacement midrange speaker for your home audio speaker! It produces an extraordinarily well-balanced frequency response and is able to provide a natural transition to a tweeter providing an open, and well-pronounced lifelike reproduction. The 50 mm dome is a treated artificial fabric coated with special damping material. The resulting sound is airy and light, but very articulate. And with the DMB-A's shielded symmetric double magnet and vented design, the low distortion on this driver is truly pleasing to the ears.
OTHER PART NUMBERS ASSOCIATED WITH IT INCLUDE...
- DMBA
- 848864055411
- 216428878
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
Every function has been confirmed 100% working. All speaker parts have been cleaned. The speaker frame, dust cap, cone, and surround are in excellent condition.
Cosmetic Condition: Very Good.
Functional Condition: Works Like New.
WHAT'S IN THE BOX?
- Swan HiVi DMB-A 2" Fabric Dome Midrange Speaker Driver Part 5 Ohms
Other information about Swan DMB-A
- Speaker Type: Midbass
- Tweeter Type: Fabric Dome
- Nominal Diameter: 2"
- Bolt Circle Diameter: 5.12
- Power Handling (RMS): 80 Watts
- Power Handling (MAX): 150 Watts
- Impedance: 5Ω
- Frequency Response: 400 to 15,000Hz
- Sensitivity: 92dB 2.83V/1m
- Voice Coil Diameter: 1.97"
- Voice Coil Wire Material: CCA
- Voice Coil Former: Aluminum
- Magnet Material: Ferrite
- Treated artificial fabric coated dome with a special damping material
- Underhung voice coil with an aluminum former
- Hi-Vi symmetric double magnet shielded motor structure
- Vented design with a large non-resonant acoustic chamber
DIMENSIONS
- Overall Outside Diameter: 5.75"
- Overall Depth: 1.9"
- Hole to Hole: 5"
- No. of Mounting Holes: 6
MANUFACTURER
- Made in China
