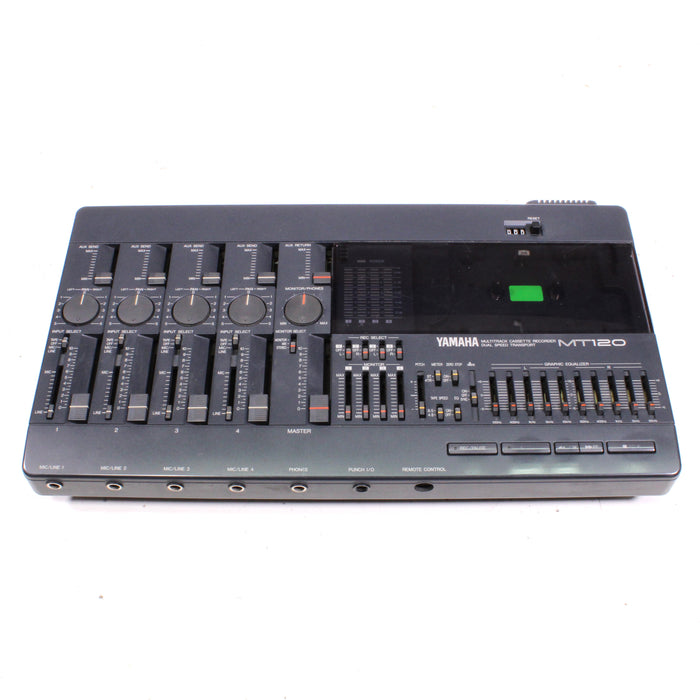

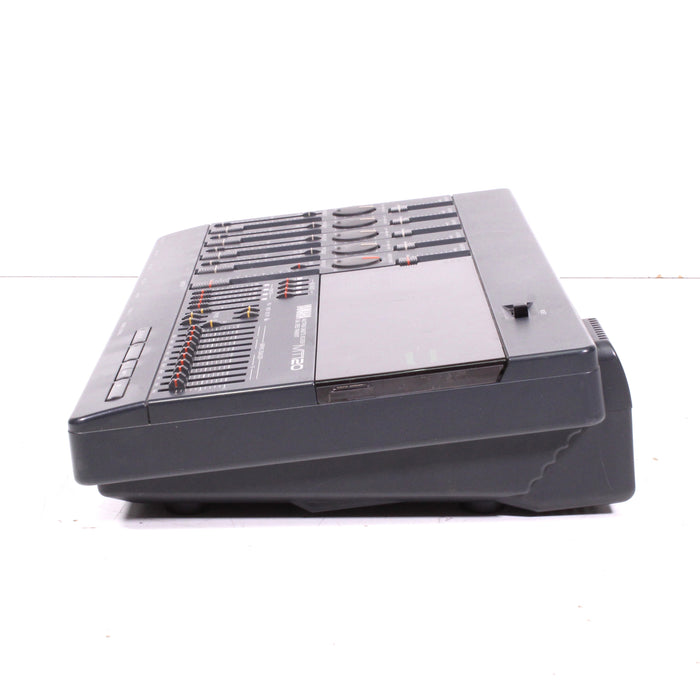

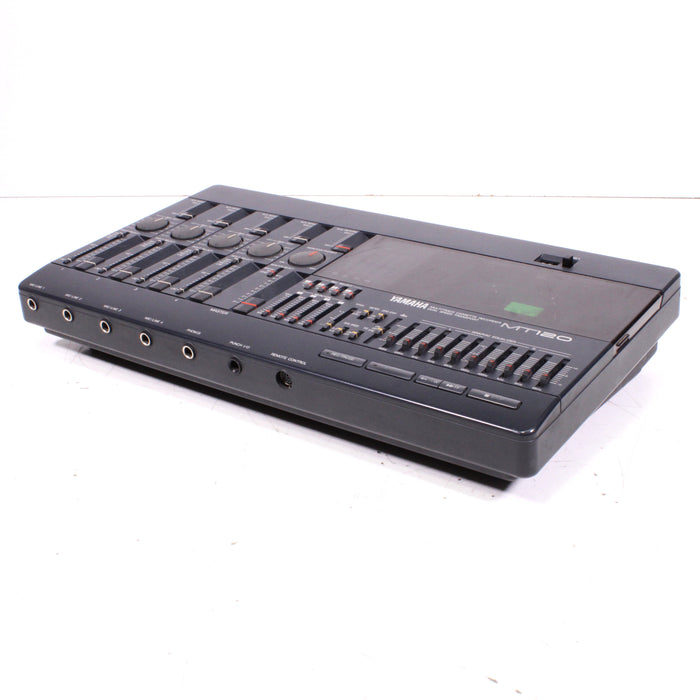

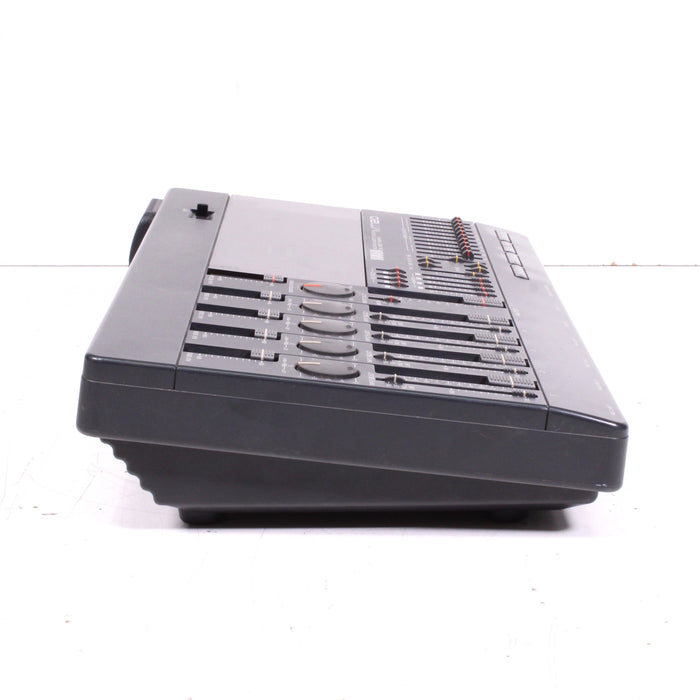

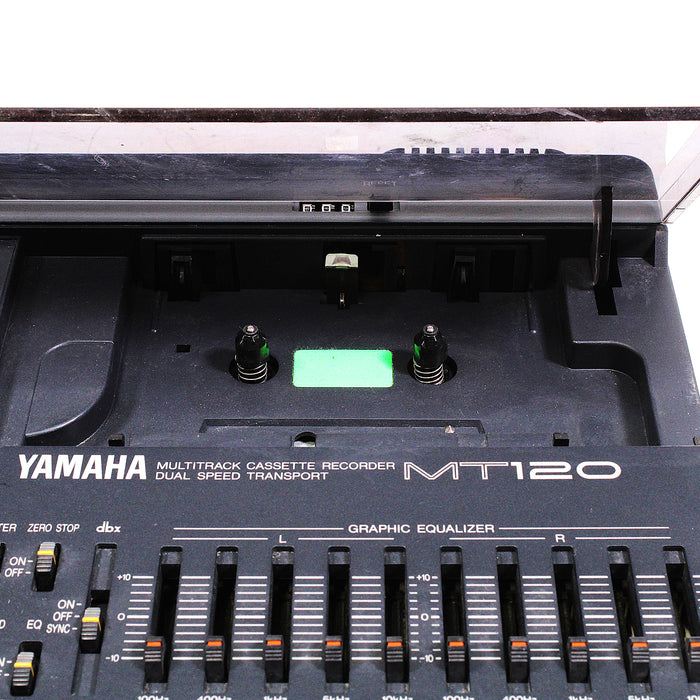

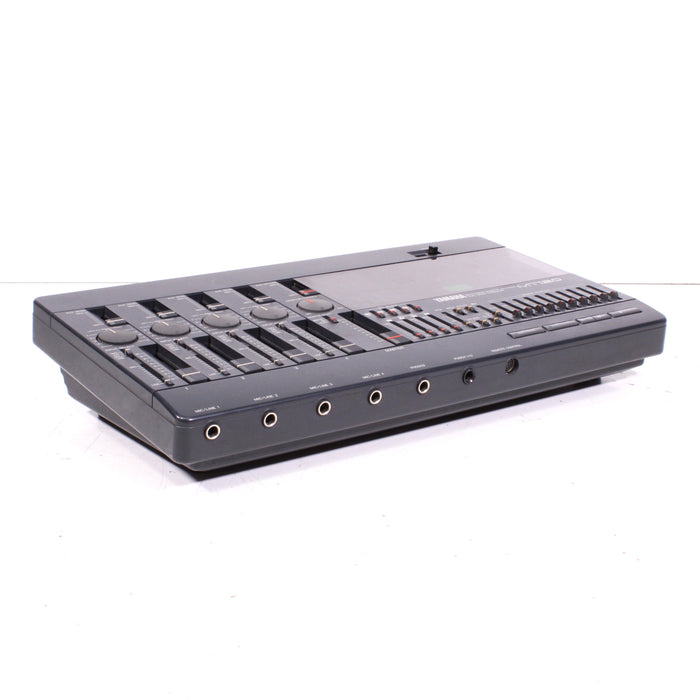

Yamaha MT120S Multitrack Cassette Recorder Deck Dual Speed Transport
Combining straightforward simplicity with versatility is the Yamaha MT120S! It's a multitracker suitable for both stand-alone use and for use in a MIDI system. It features 4-track simultaneous record and a built-in graphic equalizer so you can build track that are smooth and system. You can simply record and remix four tracks or use the multitrack "ping-pong" recording technique to individually record up to ten independent parts - adding sound layer by layer until you create exactly the arrangement your imagination demands.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
Every function has been confirmed 100% working. We have cleaned it inside and out and replaced any worn parts. The heads have been cleaned and demagnetized.
Cosmetic Condition: Very Good.
Functional Condition: Works Like New.
WHAT'S IN THE BOX?
- Yamaha MT120S Multitrack Cassette Recorder Deck
- Power Cord
Other information about the Yamaha MT120S
- Input Impedance (all inputs): 10 kOhm
- Input Level: ‑56 dB (Gain Max) to +10 dB (Gain Min)
- Output Impedance (all line outputs): 1kOhm
- Output Level (all line outputs): ‑10 dB
- Phones Output: Load impedance 8‑40 Ohms, max output level 45 mW per channel
- Tape Speed: 9.5 cm/s, 4.8 cm/s
- Varispeed: +/‑ 10% approx.
- Wow and Flutter: less than 0.12% WRMS (4.8 cm/s)
- Frequency Response: 40Hz‑18kHz (dbx out, 9.5 cm/s +3/‑5 dB) 40Hz‑13kHz (dbx out, 4.8 cm/s, +3/‑5 dB)
- Distortion: 1.0% (400 Hz, ‑13 dB Rec level, dbx on)
- S/N ratio (3% THD level): 85dB (dbx on, IHF‑A)
- Channel separation: Better than 65dB at 1kHz
- Erasure ratio: Better than 70dB at 1kHz
- Record/play head type: 4‑channel Permalloy
- Erase head type: 4‑channel Ferrite
- Tape type: Chrome (70 microsec EQ)
- Mechanical tape counter
DIMENSIONS
- 16" x 9.25" x 3.13" (Length x Width x Height)
- Weight: 5.75 lbs

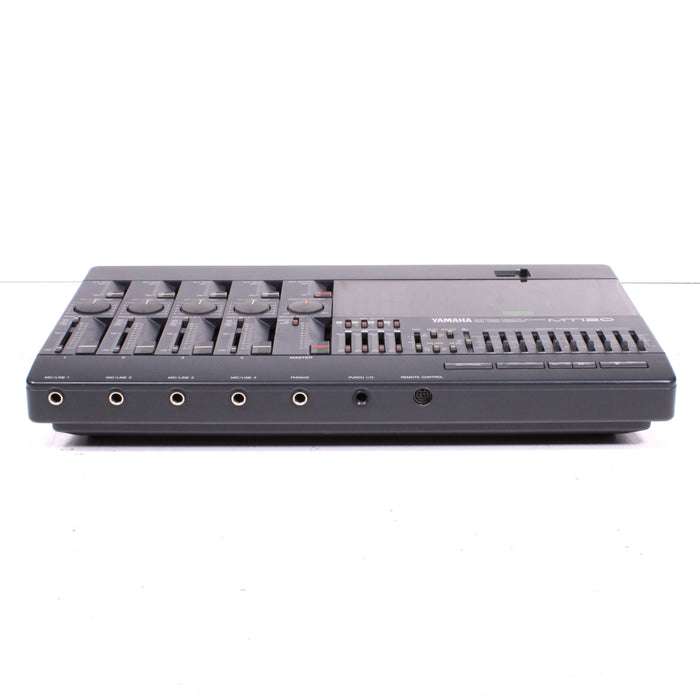

INPUTS
- Microphone Input x4 (front)
- Punch I/O x1 (front)
- Remote Control x1 (front)
- AC In x1 (back)

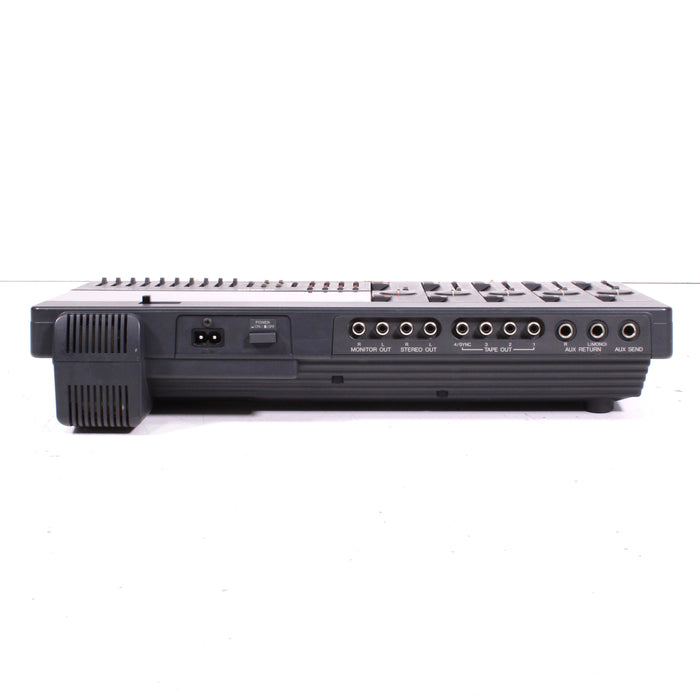

OUTPUTS
- Headphones Jack x1 (front)
- Punch I/O x1 (front)
- Monitor Out L/R x1 (back)
- Stereo Out L/R x1 (back)
- Tape Out x4 (back)
- Aux Return L/R x1 (back)
- Aux Send x1 (back)
MANUFACTURER
- Made in Japan
