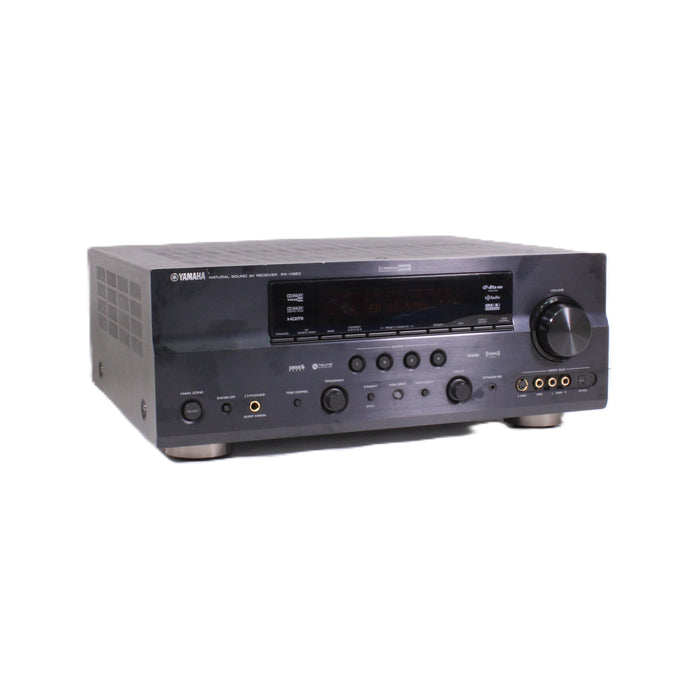

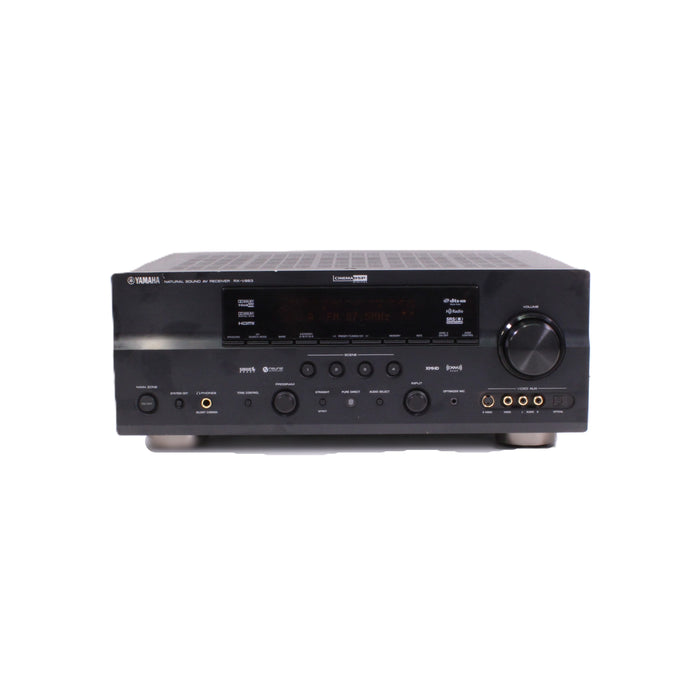

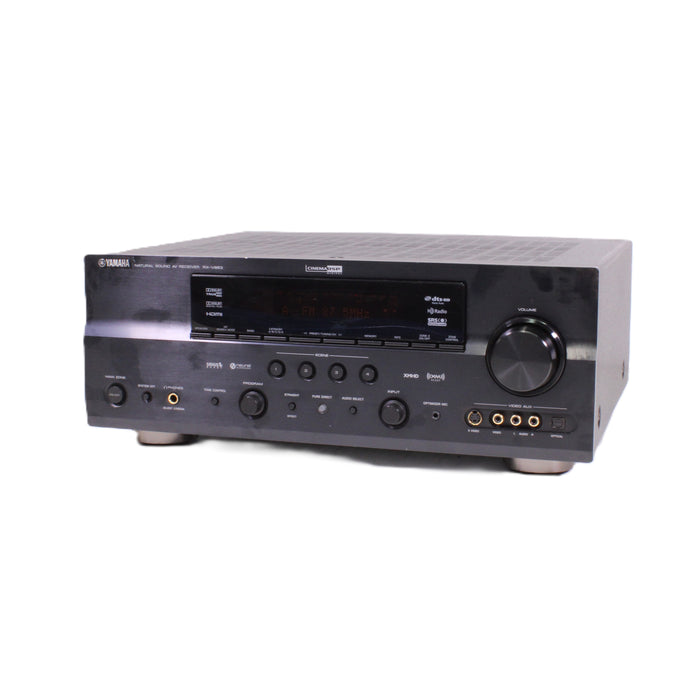

Yamaha RX-V863 7.1-Channel Audio Video Receiver Phono HDMI Dolby TrueHD DTS-HD
Bring powerful surround sound and classic Yamaha performance to your home entertainment system with the Yamaha RX-V863. This 7.1-channel AV receiver delivers 105 watts per channel and features HDMI connectivity, Dolby TrueHD, DTS-HD Master Audio, and Yamaha's acclaimed CINEMA DSP processing. With 1080p video upscaling, automatic YPAO speaker calibration, and a dedicated phono input, it's equally suited for movies, music, and vinyl playback. Fully tested, refurbished, and SPENCERTIFIED for reliable everyday listening.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
100% tested and functional. Controls and switches cleaned with WD-40 Specialist Electrical Contact Cleaner. Inspected internal boards and connections, tested amplifier outputs, checked DC offset, and verified all major audio functions for proper operation. Checked HDMI, analog audio, digital audio, and speaker outputs.
Cosmetic Condition: 8/10
Functional Condition: 10/10
WHAT'S IN THE BOX?
- Yamaha RX-V863 7.1-Channel Audio Video Receiver Phono HDMI Dolby TrueHD DTS-HD
- HDMI Cable
- FM Antenna
- Speaker Wire
Other information about the Yamaha RX-V863
- Tuning range: FM, MW
- Power output: 105 watts per channel into 8Ω (stereo)
- Surround output: 105W (front), 105W (center), 105W (rear)
- Frequency response: 10Hz to 100kHz
- Total harmonic distortion: 0.06%
- Damping factor: 120
- Input sensitivity: 3.5mV (MM), 200mV (line)
- Signal-to-noise ratio: 86dB (MM), 100dB (line)
- Channel separation: 55dB (MM), 45dB (line)
- Output: 200mV (line), 1V (Pre out)
- Speaker load impedance: 4Ω (minimum)
DIMENSIONS
- Size: 17-1/8" W × 6-3/4" H × 15-1/2" D
- Weight: 26.3 lbs

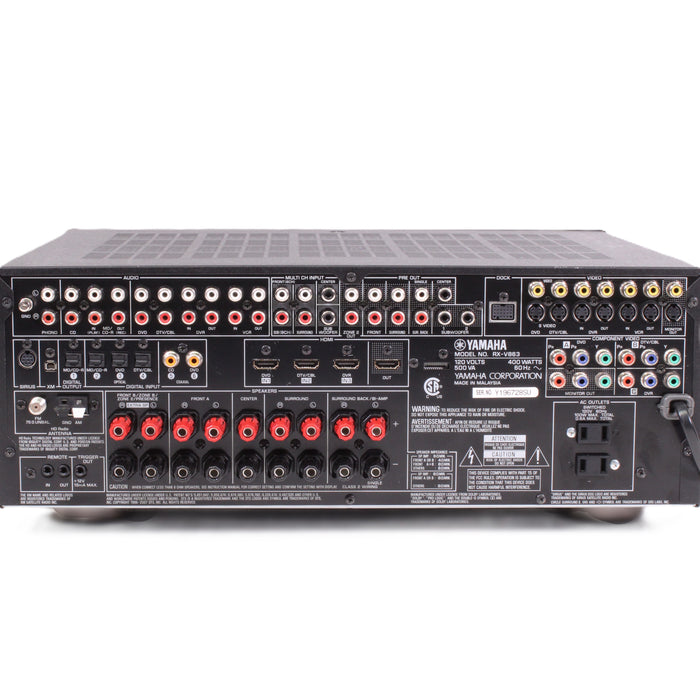

INPUTS

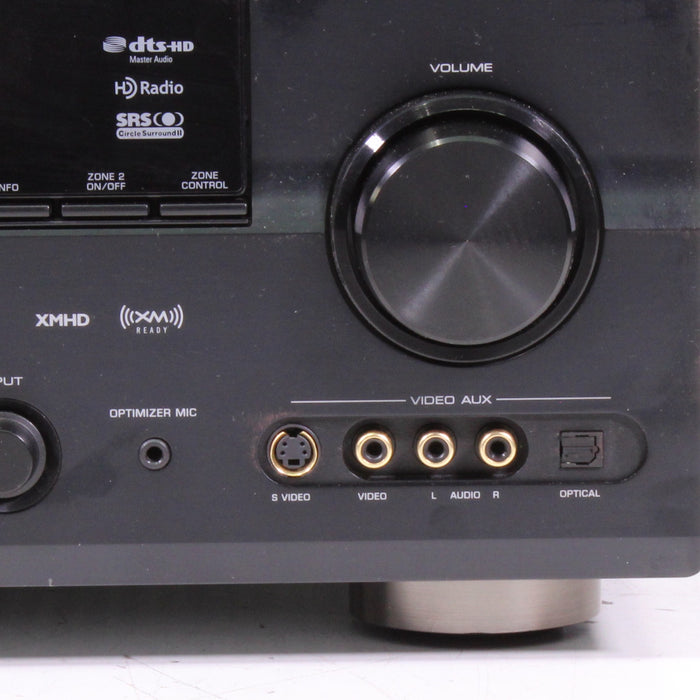

- S-Video x1 (front)
- Composite x1 (front)
- Optical x1 (front)
- AM Antenna x1 (back)
- FM Antenna x1 (back)
- GND x1 (back)
- Phono L/R x1 (back)
- CD L/R x1 (back)
- Composite x4 (back)
- Analog Audio L/R x1 (back)
-
Multi CH
- Front L/R x1 (back)
- Surround L/R x1 (back)
- Center x1 (back)
- Subwoofer x1 (back)
- S-Video x4 (back)
- Dock x1 (back)
- Sirius x1 (back)
- XM x1 (back)
- Optical x3 (back)
- Coaxial x2 (back)
- HDMI x3 (back)
- Component x3 (back)
- Remote x1 (back)

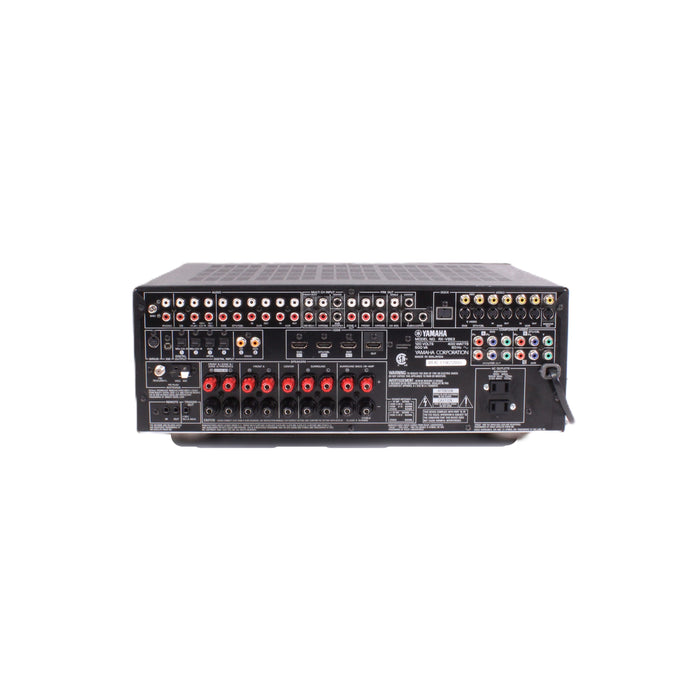

OUTPUTS

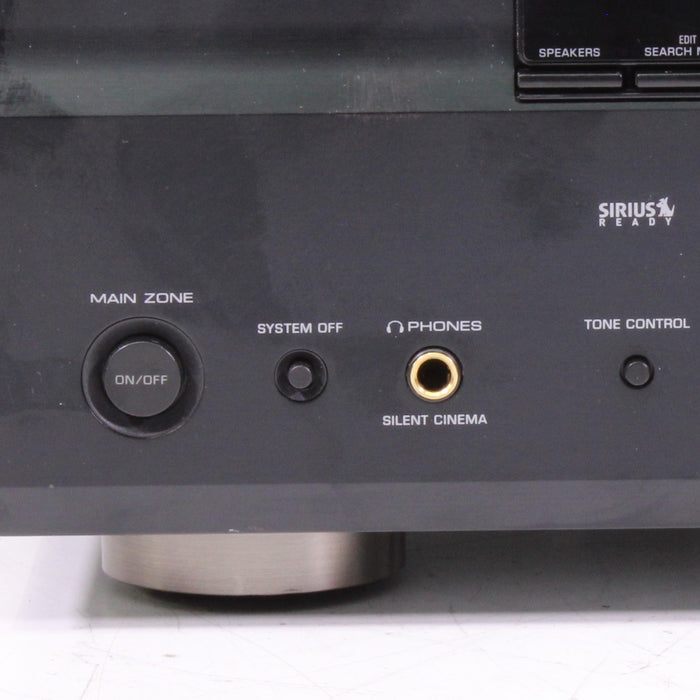

- Headphone Jack x1 (front)
- Composite x2 (back)
- Analog Audio L/R x1 (back)
- PreOut
- Subwoofer x2 (back)
- Center x1 (back)
- Surround L/R x2 (back)
- Front L/R x1 (back)
- S-Video x2 (back)
- HDMI x1 (back)
- Component x1 (back)
- Remote x1 (back)
- Trigger Out x1 (back)
- Speakers L/R x4 (back)
- Center Speaker x1 (back)
- AC Outlets x2 (back)
MANUFACTURE PLACE
- Made in Malaysia
