The Pioneer SA-7500 arrived at a time when hi-fi design prioritized sound quality, durability, and honest engineering over flashy excess. Positioned squarely in Pioneer’s mid-1970s lineup, it offered listeners a refined integrated amplifier that balanced power, control, and musicality in a clean, understated package. Decades later, it remains a standout example of how well thoughtful design can age.
At its core, the SA-7500 reflects Pioneer’s commitment to practical performance. From its robust power section and flexible tone controls to its well-implemented phono stage and conservative power ratings, every feature serves a clear purpose. This overview takes a closer look at the key design elements that made the SA-7500 appealing in its day…and why it continues to earn respect among enthusiasts and restorers today.
An integrated amplifier is a standard receiver without an AM/FM tuner. The tuner is removed because, for the purpose of sound quality, the fewer components in one device, the better.
Let’s check out some of the best features of the SA-7500!
Inside the Pioneer SA-7500 lie highly reliable silicon power transistors. Together with the differential first stage, all stages are configured in a pure OCL (Output Capacitor-Less) architecture. Direct coupling throughout all amplification stages eliminates frequency-limiting coupling elements. And careful design plus meticulous component selection equals a wide output bandwidth.
Carefully calibrated equalizer components keep RIAA compliance within tight tolerances, resulting in precise tone reproduction across the audio spectrum. The integrated dual DC power supply architecture also accommodates higher input levels while maintaining signal integrity, delivering extended dynamic headroom and low-distortion performance. Perfect for audiophiles.
An integrated relay-based protection circuit provides fast-action protection against component damage from faulty conditions, including speaker terminal shorts and defective connections. Upon detection of DC current in the output stage, the circuit immediately disconnects the output path, preventing transistor and speaker degradation. The protection circuit also incorporates automatic muting when the power switch is used.

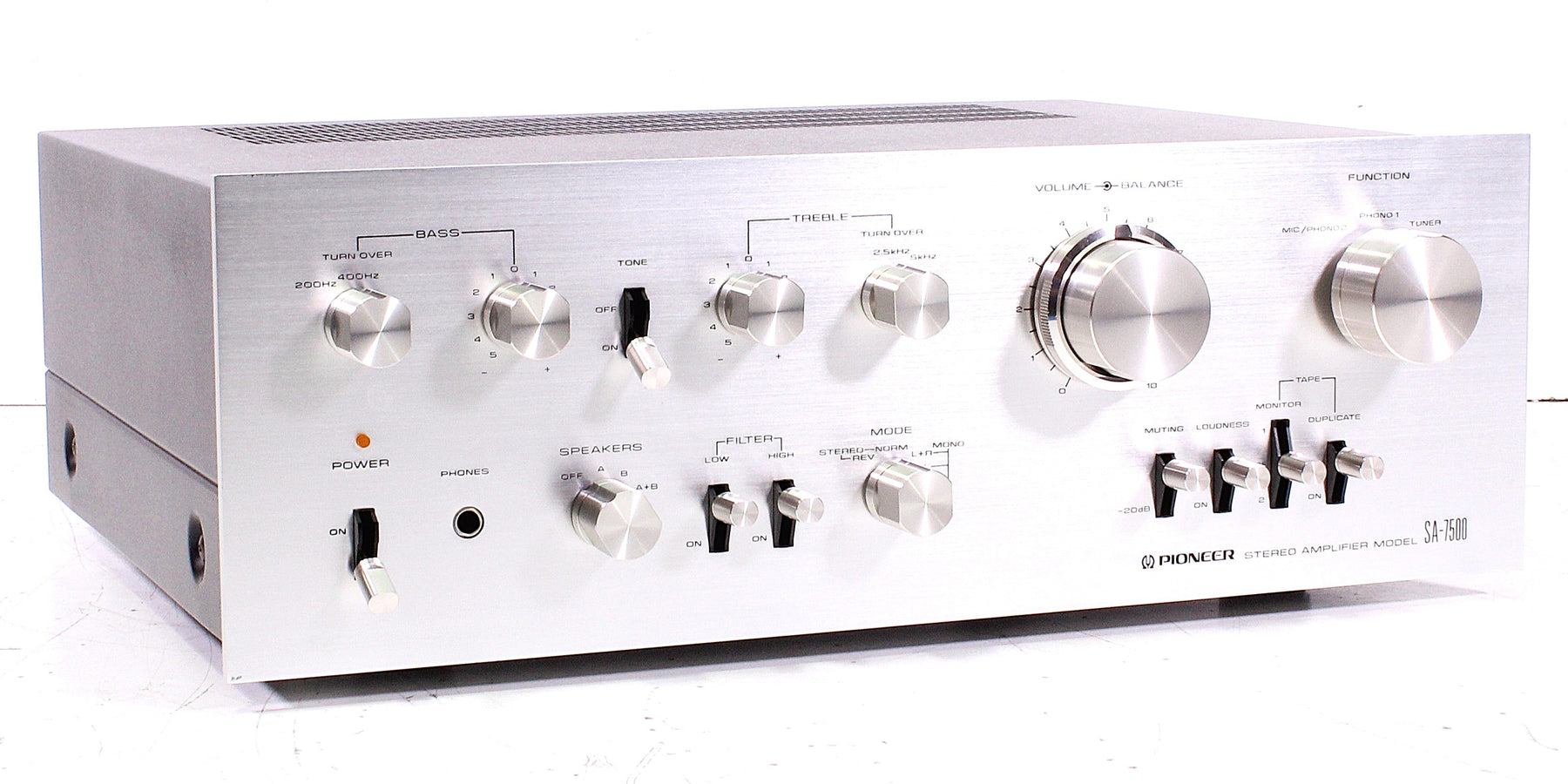

It’s tempting to call the front panel the best part of this amp. The gleaming silver faceplate is the perfect combination of easy functionality and handsome appearance.
Starting on the top left, you have the Bass and Treble knobs. Each is provided with Turn Over options for choosing the frequencies (200Hz or 400Hz for Bass and 2.5kHz or 5Hz for Treble) at which the controls take effect. Between them rests a convenient Tone switch, which allows a flat frequency response to be obtained regardless of the tone control settings, simplifying checking the sound according to the speakers and room characteristics.
Under these knobs is your standard Power switch, headphones jack, Speakers selector (which has options for off, A, B, and A+B switching), Filter switches (Low and High to help control low-frequency noises like hums and high-frequency noises like record scratch noises), and the Mode knob.
On the top right is the large two-in-one Volume and Balance knob (giving this knob a twirl is admittedly addicting) and the equally large Function knob to choose which source you’re listening to (Mic/Phono 2, Phono 1, Tuner, and Aux).
Under those are the Muting (reduces volume by 20dB), Loudness (to enhance low and high frequencies), and Tape switches. There are actually two Tape switches on this: a Monitor one to choose between Tape 1, Tape 2, and no tape, and a Duplicate switch. The Duplicate switch makes for easy tape duplication between decks and from open reel to cassette tape formats.
The rear panel has everything you would need from a vintage amplifier for a good range of flexible options. The left has inputs for not one but two turntables, two tape decks, a tuner, a microphone, and an auxiliary source. There is also a DIN-type connector for a tape deck (open reel or cassette).
The bottom left has outputs for two tape decks. Then the upper right has the speaker terminals, while the bottom right has the AC outlets. There are two switched and one unswitched outlet to power your other components. Switched means that the power is controlled by the receiver, while unswitched components will continue to receive power even if the receiver is turned off.
The Pioneer SA-7500 stands as a reminder of an era when integrated amplifiers were built with quality, intention, and longevity in mind. Its feature set is thoughtful rather than excessive, its power is delivered with confidence rather than bravado, and its construction reflects a level of care that so many modern technologies simply can't live up to today.
Thanks for reading! If you’re interested in owning this beauty of a receiver, you can find it on our website here. Have a great day!
