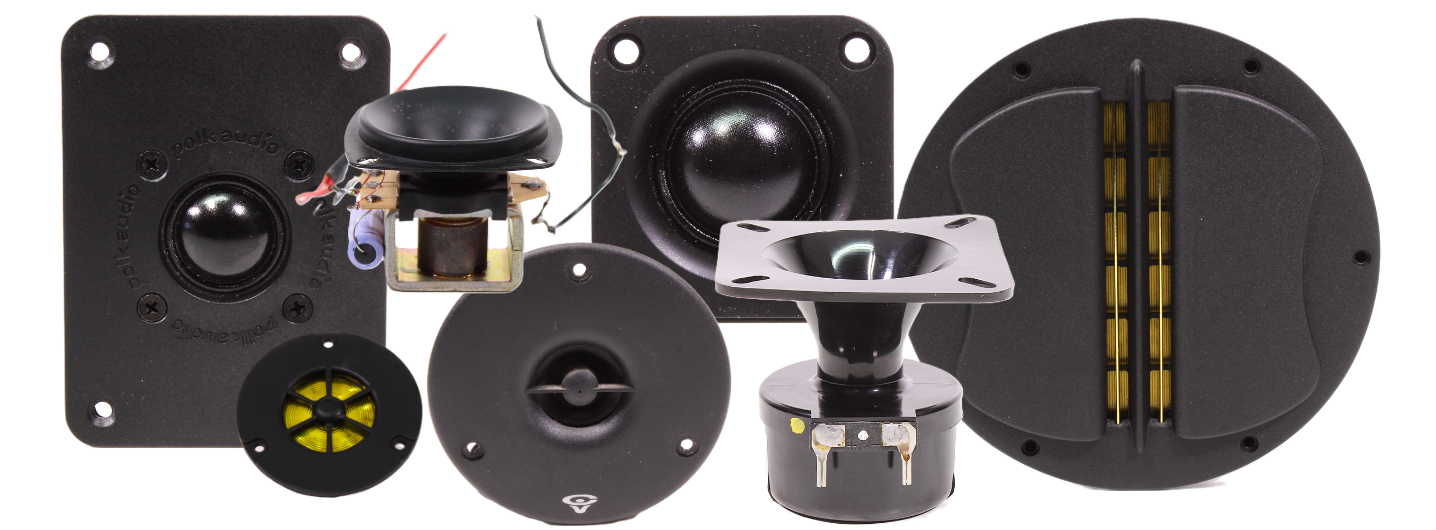

CHOOSE YOUR FIGHTER: COMPARING TWEETER DESIGNS

In my last article, I explored the whats, whys, and hows of ferrofluid tweeters. This time, we’re broadening the scope and taking a closer look at the small but mighty driver responsible for bringing clarity, detail, and sparkle to your music.

We’ll cover what a tweeter is, how it works, and the science behind those crisp high frequencies. Then we’ll compare the most common tweeter designs, breaking down their strengths, weaknesses, and defining characteristics.

Consider this as your quick-reference guide to the little driver with a lot to say.

WHAT IS A TWEETER?

Meet the smallest voice in the speaker: the tweeter.

A tweeter is a loudspeaker driver designed to reproduce high-frequency sound. In most audio systems, tweeters handle the upper portion of the audible spectrum, typically from roughly 2,000 Hz to 20,000 Hz or higher. They reproduce details such as cymbals, vocal sibilance, strings, brass overtones, ambience, and spatial cues.

HOW DOES A TWEETER WORK?

Because high-frequency sound waves are short, a tweeter’s diaphragm must be small, light, and able to move very quickly. Most tweeters use a diaphragm attached to a voice coil. The audio signal passes through the coil, creating a changing magnetic field that reacts with the tweeter’s permanent magnet. This moves the diaphragm back and forth, producing sound waves.

A crossover network directs high frequencies to the tweeter and prevents low-frequency energy from reaching it. Without this protection, the tweeter could become distorted or damaged because its diaphragm is not designed for large loads.

DOME TWEETERS

Dome sweet dome! Dome tweeters are among the most common designs in home stereo speakers, bookshelf speakers, and studio monitors. Their diaphragms are shaped like shallow domes and are usually made from fabric, silk, aluminum, titanium, beryllium, or similar materials.

Advantages

• Wide, smooth sound dispersion in many designs.
• Compact and easy to integrate into conventional speaker systems.
• Available at virtually every price point.
• Often provides a balanced combination of detail, efficiency, and reliability.

Disadvantages

• Performance depends heavily on diaphragm material and design quality.
• Metal domes can develop resonances at frequencies above their normal operating range.
• Soft domes may sound less sharply detailed than some rigid-diaphragm alternatives.

SOFT-DOME TWEETERS

Soft domes are commonly made from silk, textile, or treated fabric. They're often associated with a smooth, forgiving, and natural presentation.

Best suited for: General home audio, vintage-style setups, and listeners who prefer a less aggressive high end.

HARD-DOME TWEETERS

Hard domes are typically made from aluminum, titanium, ceramic, diamond, or beryllium. Their stiffness can improve high-frequency extension and transient response.

Best suited for: Detailed modern loudspeakers, studio monitors, and systems where clarity and high-frequency extension are priorities.

HORN TWEETERS

Horn tweeters use a horn in front of the driver to improve efficiency and control sound dispersion. In many professional designs, a small compression driver feeds sound into the horn through a narrow throat.

Advantages

• Very high efficiency and output capability.
• Excellent for large rooms, sound reinforcement, theaters, and high-volume playback.
• Can provide controlled directivity, helping direct sound toward the listening area.
• Often delivers strong dynamics and impact.

Disadvantages

• Larger horns can be visually and physically bulky.
• Lower-quality designs may sound harsh or “shouty.”
• Proper crossover design and horn geometry are especially important.

Best suited for: PA systems, cinema speakers, live sound, high-efficiency hi-fi systems, and large listening rooms.

RIBBON TWEETERS

Ribbon tweeters use an extremely thin strip of conductive material suspended in a magnetic field. The ribbon itself acts as both the diaphragm and conductor.

Advantages

• Very low moving mass.
• Excellent transient response and fine detail.
• Often produces a spacious, airy high-frequency presentation.
• Can offer very wide horizontal dispersion.

Disadvantages

• Usually less efficient than dome or horn designs.
• Can be fragile and vulnerable to excessive low-frequency energy.

• Often requires a transformer to match impedance.
• Vertical dispersion may be relatively narrow.

Best suited for: High-end home audio, audiophile speakers, and carefully designed systems where delicacy and detail are priorities.

PLANAR-MAGNETIC TWEETERS

Planar-magnetic tweeters use a thin diaphragm with conductive traces placed in a magnetic field. Unlike a conventional voice-coil driver, force is applied across a larger area of the diaphragm.

Advantages

• Low diaphragm mass and fast response.
• Broad, open presentation with low distortion in well-designed systems.
• Can provide excellent detail without the fragility of some true ribbons.
• Often handles more power than a ribbon tweeter.

Disadvantages

• Typically larger than dome tweeters.
• May have limited vertical dispersion.
• Can be more expensive and harder to integrate into compact cabinets.

Best suited for: High-end loudspeakers, planar speaker systems, and listeners who value openness and low distortion.

AMT (AIR-MOTION TRANSFORMER) TWEETERS

An Air Motion Transformer, often shortened to AMT, uses a folded diaphragm rather than a dome or ribbon. As the folds squeeze and expand, they move air rapidly, acting somewhat like an accordion.

Advantages

• Excellent speed and transient response.
• Can move a large amount of air while using a relatively small diaphragm excursion.
• Often combines great detail with good power handling.
• Available in compact and large formats.

Disadvantages

• Can have distinctive dispersion characteristics.
• Quality varies substantially among designs.
• Some listeners find certain AMT tweeters overly prominent if not carefully matched to the rest of the speaker.

Best suited for: Modern hi-fi speakers, studio monitors, and systems seeking detailed treble with strong dynamic capability.

ELECTROSTATIC TWEETERS

Electrostatic tweeters use an ultra-thin, electrically charged diaphragm placed between perforated metal stators. The changing audio signal on the stators moves the diaphragm.

Advantages

• Extremely low moving mass.
• Very high resolution and transparency.
• Low distortion when used within their intended operating range.
• Can reproduce delicate high-frequency detail exceptionally well.

Disadvantages

• Requires a high-voltage power supply.
• Can be sensitive to humidity, dust, and physical damage.
• Usually has limited output compared with horn-loaded designs.
• Often requires careful integration with conventional woofers or midrange drivers.

Best suited for: Specialty high-end loudspeakers and listeners prioritizing transparency and fine detail.

SUMMARY

No single tweeter design is automatically best, which makes knowing the tweeter family tree so helpful. The ideal choice depends on the speaker’s intended use, crossover design, cabinet layout, listening distance, amplifier power, and desired sound character.

For vintage speaker restoration, cone and soft-dome tweeters may be the most historically appropriate choices. For studio monitoring and detailed modern hi-fi, dome, AMT, planar-magnetic, or ribbon designs are common options. Horn and compression tweeters are often the best fit where efficiency, output, and dynamics are more important than compact size.

A final high note to consider: a tweeter should be judged as part of the complete loudspeaker system. A well-designed crossover and proper integration with the midrange or woofer are often just as important as the type of tweeter itself.

Thanks for reading! If you need a speaker driver, we’ve got you covered. You can find our various OEM woofers, tweeters, and crossovers for sale here.

Have a great day!
