FERROFLUID AND THE BENEFITS OF USING IT IN SPEAKER DRIVERS

What combines acoustics, materials science, and thermal engineering? This guy!

Ferrofluid is a fascinating liquid. If you’re reading this, you’re probably familiar with its application in one particular realm: stereo speakers.

Ferrofluid tweeters are an excellent choice of tweeter. But what exactly is ferrofluid? Why was it invented? And how does it work?

Let’s find out.

WHAT IS FERROFLUID?

Ferrofluid is a liquid containing microscopic magnetic particles suspended in a carrier oil. The particles are typically iron oxide nanoparticles coated with a surfactant that prevents them from clumping together. Although it behaves like a liquid, ferrofluid responds strongly to magnetic fields.

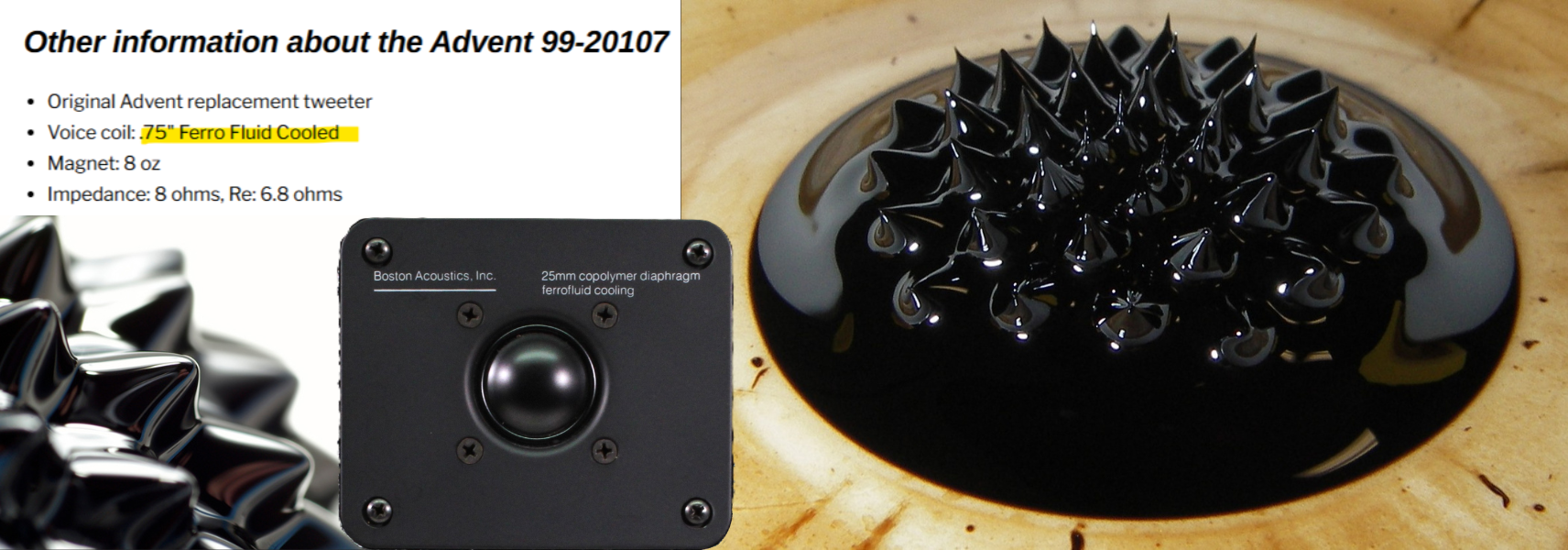

When placed near a magnet, ferrofluid forms distinctive peaks and patterns because the magnetic particles align with the magnetic field. In a loudspeaker, however, the ferrofluid is hidden inside the magnetic gap and serves a much more practical purpose.

HISTORY OF FERROFLUID

Ferrofluid was developed in the early 1960s by Stephen Papell while working for NASA. Its original purpose was to create a liquid fuel management system for zero-gravity spacecraft operation.

But the application of ferrofluid blasted off in different directions towards the end of that decade, when engineers soon recognized its usefulness in a variety of industries, including seals, medical devices, damping systems, and, of course, loudspeakers.

By the 1970s and 1980s, loudspeaker manufacturers began incorporating ferrofluid into high-frequency drivers, particularly dome tweeters. Companies like ADS, Vifa, and SEAS helped make the use of ferrofluid more mainstream.

HOW DOES FERROFLUID WORK IN SPEAKERS?

A dome tweeter consists of a lightweight diaphragm attached to a voice coil that moves within a narrow magnetic gap. Ferrofluid is placed directly in this gap, where it is held in position by the magnet's field.

The fluid performs three main functions:

HEAT TRANSFER: The voice coil generates heat as electrical current passes through it. Ferrofluid creates a thermal bridge between the voice coil and the metal motor structure.

This allows heat to move away from the coil more efficiently, reducing operating temperature and increasing power handling.

MECHANICAL DAMPING: Ferrofluid adds a controlled amount of viscous damping to the tweeter's motion.

This damping helps suppress unwanted resonances near the tweeter's fundamental resonance frequency, producing a smoother frequency response and reducing distortion.

IMPROVED RELIABILITY: Because the voice coil runs cooler and is better controlled mechanically, the tweeter can withstand higher power levels and prolonged operation without damage.

BENEFITS OF FERROFLUID TWEETERS

There are a few key benefits of using ferrofluid. The biggest one is the increased power handling. Since they improve thermal management, some tweeters can handle significantly more power with ferrofluid than without it because heat is removed more effectively from the voice coil.

Another advantage is decreased distortion. Ferrofluid’s damping effect reduces excessive motion, which lowers distortion and improves clarity. By controlling resonances, it can also result in a smoother frequency response.

Finally, increased longevity. Keeping the voice coil cooler reduces thermal stress on adhesive, coil wire insulation, and other components, meaning a longer lifespan for the tweeter.

DRAWBACKS OF FERROFLUID TWEETERS

Despite its advantages, ferrofluid is not without controversy. Particularly among stereo enthusiasts, restoration technicians, and anyone who has experience replacing ferrofluid, these types of tweeters have some drawbacks.

For example, ferrofluid tweeters have maintenance concerns that conventional tweeters don’t. This is because, over decades, the carrier oil can evaporate or thicken. Then the remaining material may become sticky and increase damping beyond the original specifications. This means that aging ferrofluid might require cleaning and replacement during restoration, which is a tricky process that involves disassembling the driver, removing old fluid, and applying the correct quantity and viscosity of replacement ferrofluid.

How do you know if the ferrofluid needs replacing? Well, common symptoms include reduced high-frequency output, muted sound, lower sensitivity, and unbalanced stereo channels. And this ferrofluid issue is particularly common in tweeters from the 1980s and 1990s.

SUMMARY

Ferrofluid is one of the most influential yet least visible technologies in modern loudspeaker design. Originally developed for space applications, it found a natural home in tweeters where it improves cooling, damping, and reliability. While aging ferrofluid can become a restoration concern in vintage speakers, its benefits have made it a standard feature in countless loudspeaker designs over the past several decades.

For many speaker engineers, ferrofluid represents an elegant solution: a simple liquid that quietly improves performance while remaining completely hidden from view.
