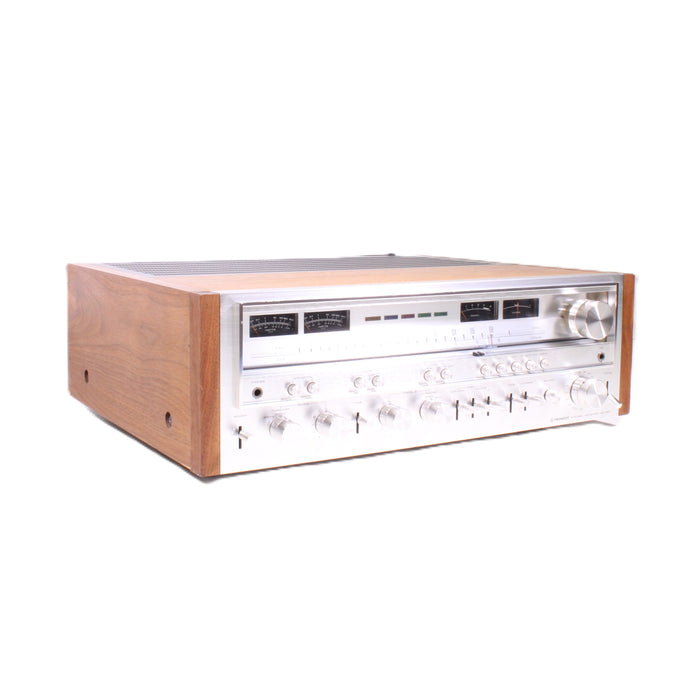

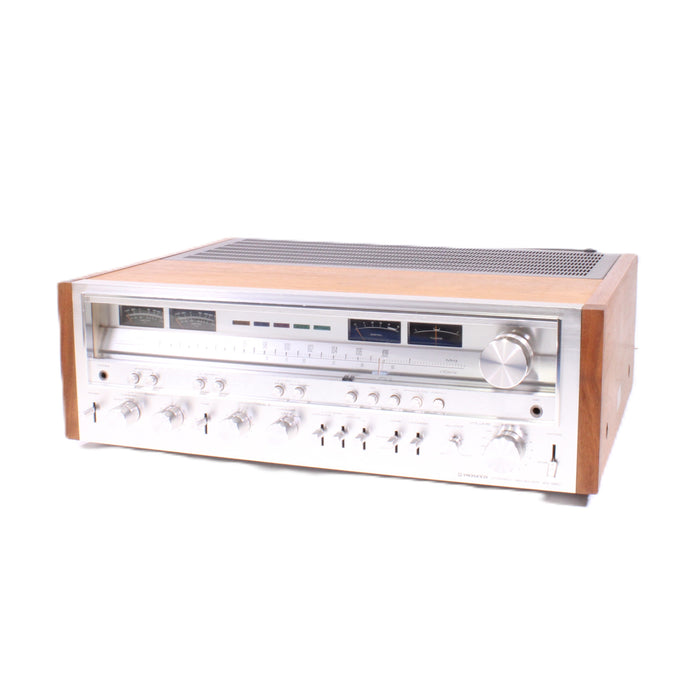

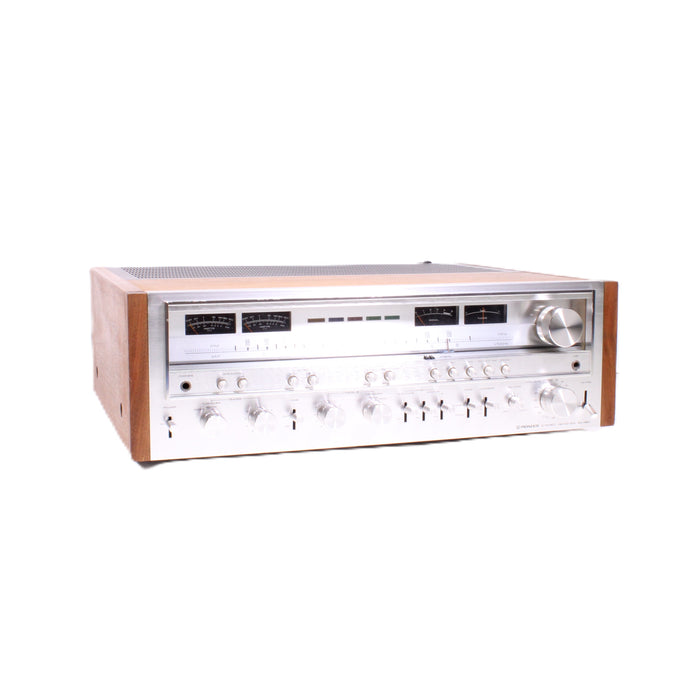

Pioneer SX-980 AM/FM 80WPC Stereo Receiver Phono Silver Face (NO REMOTE)

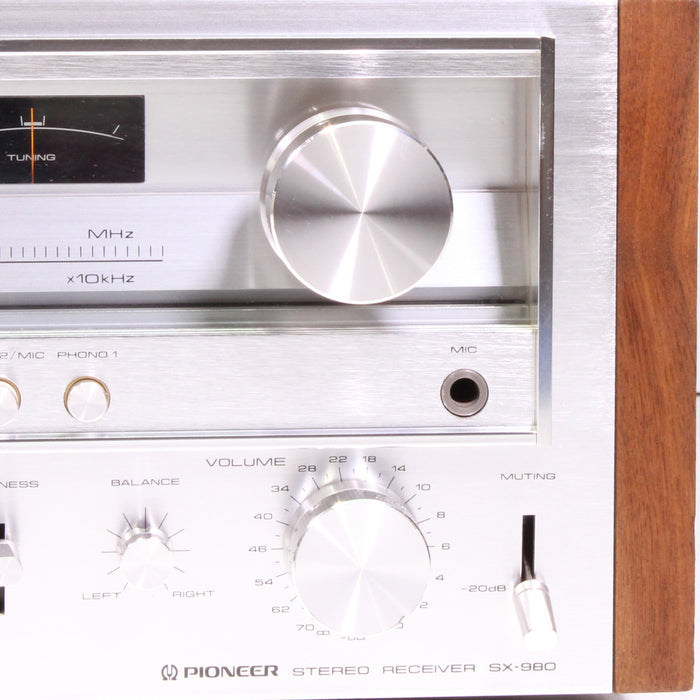

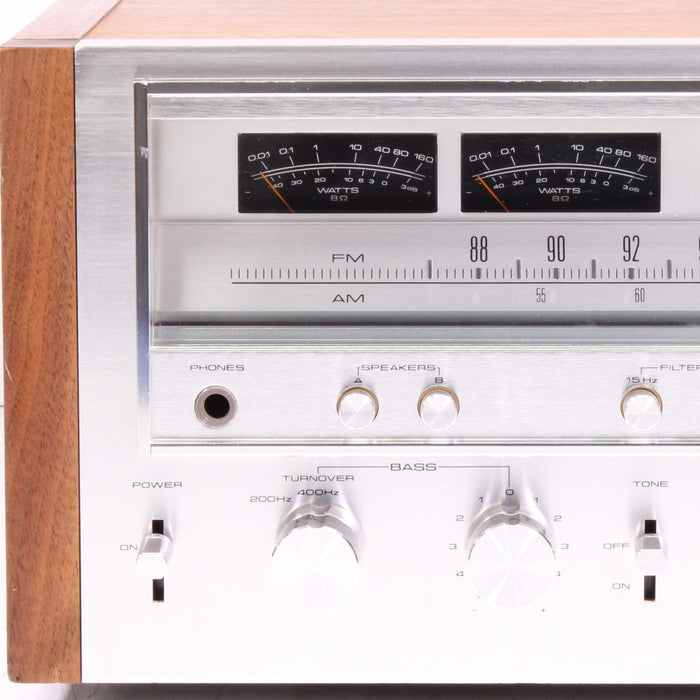

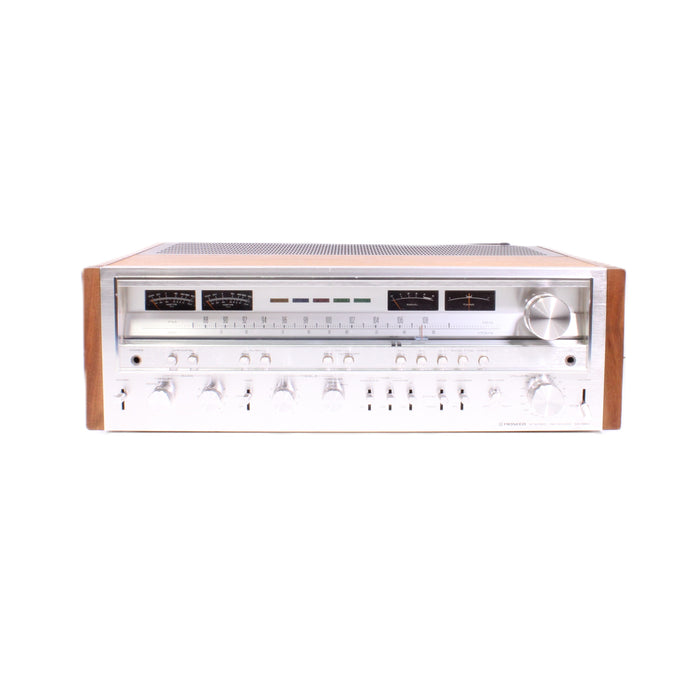

Rediscover the golden age of hi-fi with the Pioneer SX-980, one of the most sought-after receivers from Pioneer's legendary SX series. Delivering 80 watts per channel, this silver-face classic combines powerful performance, exceptional tuner sensitivity, and the warm, dynamic sound that made Pioneer a household name among audiophiles. With its iconic brushed aluminum faceplate, large tuning dial, and genuine walnut veneer cabinet, the SX-980 remains a centerpiece in any vintage audio collection. Fully tested and SPENCERTIFIED, this receiver is ready to power your favorite speakers for years to come.
CONDITION
SPENCERTIFIED- Fully certified by Spencer
Refurbished and SPENCERTIFIED
100% tested and functional. Cleaned inside and out; worn parts replaced as needed. Controls, switches, and boards cleaned with WD-40 Specialist Electrical Contact Cleaner (safe for electronics). Amplifier section tested, DC offset checked, tuner verified, and all inputs and outputs tested for proper operation. Dial lamps replaced as needed.
Cosmetic Condition: 9/10
Functional Condition: 10/10
WHAT'S IN THE BOX?
- Pioneer SX-980 AM/FM 80WPC Stereo Receiver Phono Silver Face (NO REMOTE)
- Analog Audio Cable
Other information about the Pioneer SX-980
- Tuning range: FM, MW
- Power output: 80 watts per channel into 8Ω (stereo)
- Frequency response: 5Hz to 100kHz
- Total harmonic distortion: 0.05%
- Damping factor: 30
- Input sensitivity: 7.5mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
- Signal to noise ratio: 76dB (MM), 90dB (line)
- Output: 150mV (line), 30mV (DIN), 1V (Pre out)
- Speaker load impedance: 4Ω (minimum)
- Semiconductors: 3 x FET, 8 x IC, 35 x transistors, 45 x diodes
- Classic silver-face Pioneer styling
- AM/FM stereo tuner
- Phono input for turntables
- Dual tape monitor loops
- Two speaker pairs (A/B)
- Pre-Out/Main-In connections
- Bass, treble, and balance controls
- Loudness compensation
- High and low filters
- FM muting
- Vintage audiophile receiver
DIMENSIONS
- Size: 21.3" W × 7.3" H × 17.1" D
- Weight: 38.8 lbs

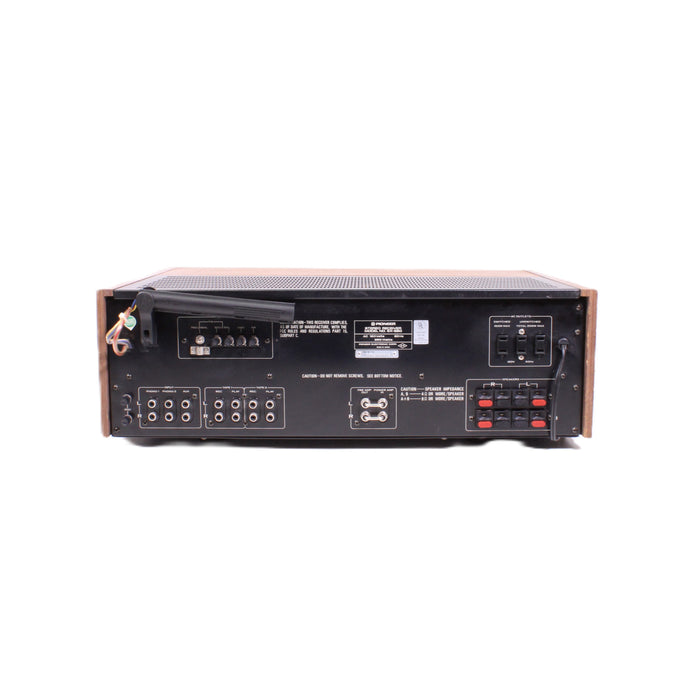

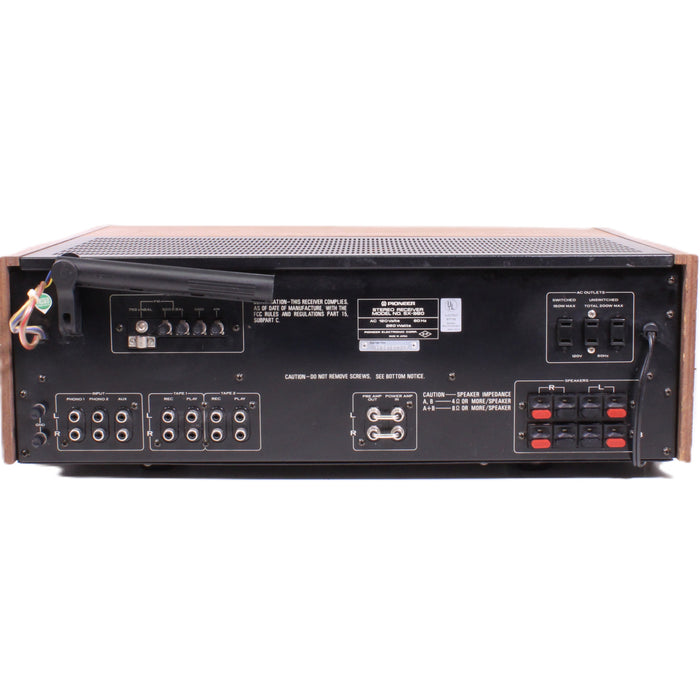

INPUTS
- Mic x1 (front)
- Phono x2 L/R (back)
- AUX x1 L/R (back)
- Tape x2 L/R (back)
- Power Amp x1 L/R (back)
OUTPUTS
- Headphone Jack x1 (front)
- Tape x2 L/R (back)
- Pre Amp x1 L/R (back)
- Speakers x2 L/R (back)
- AC Outlets x3 (back)
MANUFACTURE PLACE
- Made in Japan
