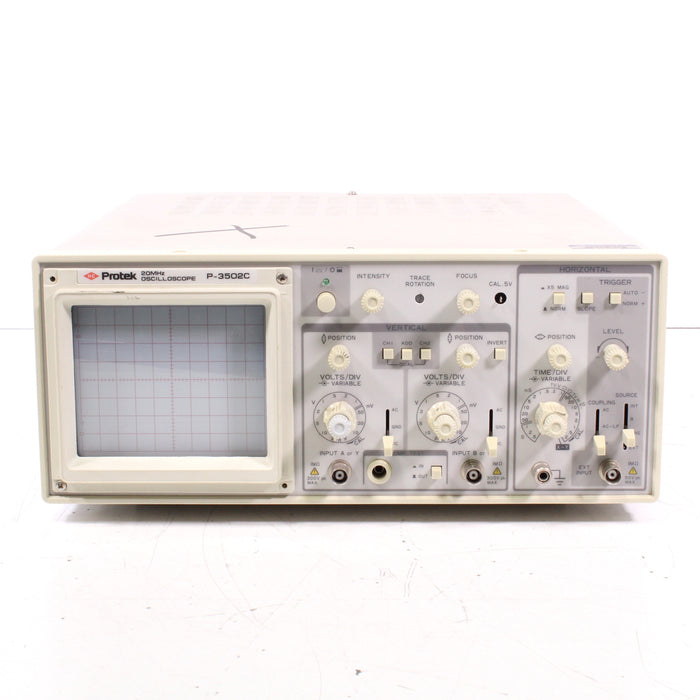

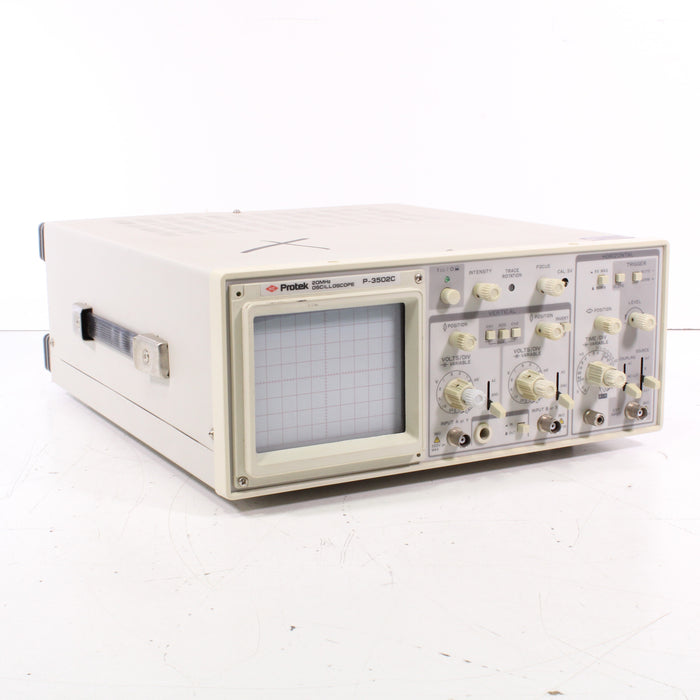

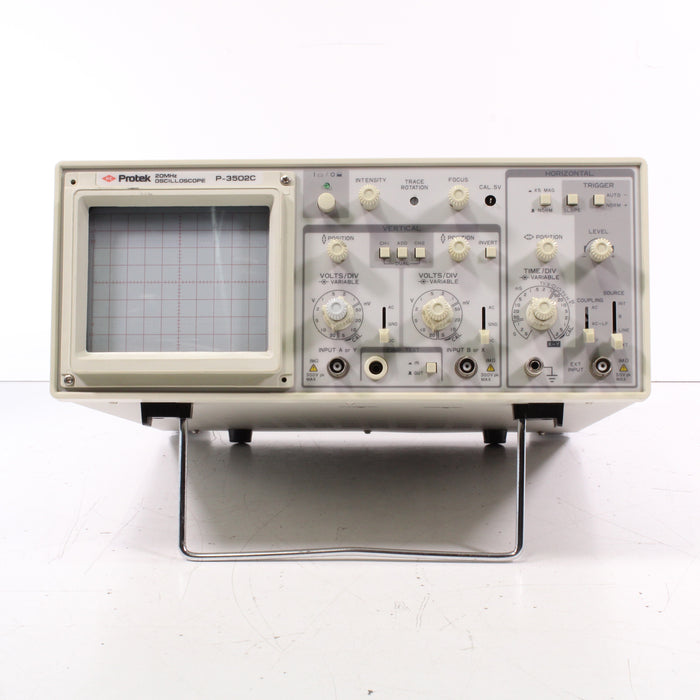

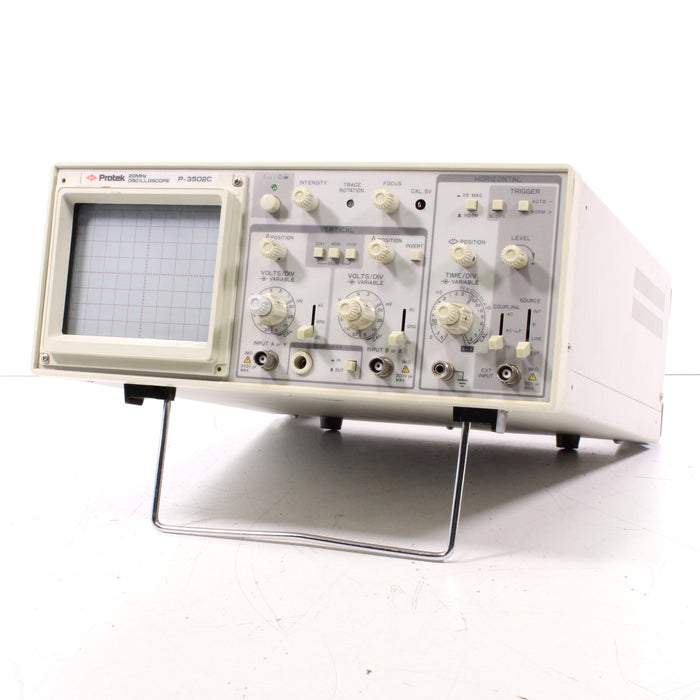

Protek P-3502C 20MHz Oscilloscope Analog Storage Mainframe (AS IS)
We bet you haven't seen one of these particular systems in a decade or five! The Protek P-3502C is a storage oscilloscope. An oscilloscope is basically a testing instrument that graphically displays the volage wave form of one or more signals. The P-3502C is a flexible system that can be used to observe or measure all types of electrical and electronic waveforms within its listed specifications, from relatively simple sine and square waves to complex pulse and composite signals.
This particular model has a 20MHz bandwidth and an alternate trigger for a stable display of unrelated signals. And thanks to its autofocus feature and large 6-inch CRT, it's easier to use than some of the other vintage oscilloscopes out there. You can view the full range of specs here. Please note that this is being sold as-is, untested.
CONDITION
Sold as is, untested.
At Spencertified, we are experts on a wide variety of electronics. Unfortunately, we do not have the time or resources necessary to test everything that comes in our shop. So, rather than throwing it away, we give our customers an opportunity to tinker.
Cosmetic Condition: Good.
Functional Condition: Untested. Being sold as-is.
WHAT'S IN THE BOX?
- Protek P-3502C 20MHz Oscilloscope Analog Storage Mainframe (AS IS)
Other information about the Protek P3502C
- 20MHz Bandwidth
- Alternate trigger for a stable display of unrelated signals
- Alt-Mag sweep for simultaneous display of the normal and X10 magnified trace
- Autofocus
- Internal sync separator circuit for stable triggering of video signals
- Large 6 inch CRT with internal graticule for parallax free waveform measurements
- Z axis input and CH 1 output
- Sweep speeds to 10ns/Div
- 10kV acceleration voltage
DIMENSIONS
- 13.4" x 14.8" x 5.3" (Length x Width x Height)
- Weight: 24 lbs
